7-5
I･pulse F1 Series
F1 - 32 (A type) 32mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M7A20-000
SPROCKET ASSY 1 AS-A32-8107
LG4-M6A2A-000
RACKING SUB LEVER ASSY 1 AS-A24-8116
1 K87-M532D-000 SCREW COIL SPRING 1
CTF- 42- 11-1
2 K87-M111G-100 PUSH PIN 3
CTF-M08- 325
3 LG4-M6A2F-000 THRUST WASHER 1
CTF-A32- 08
4
LG4-M7A2E-000
LEVER METAL 1 FTA-A32-8108
5 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
6 KW1-M4523-000 SPROCKET 1
FTA-A24-1104
7 KW1-M452W-000 STUD 1 FTA-A24-1118
8 LG4-M7A21-000 METAL 1
FTA-A32-8103
9 LG4-M6A22-000 RACKING MAIN LEVER 1
FTA-A24-8105
10 LG4-M6A25-000 RACKING POLE AXIS 1
FTA-A24-8110
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12
LG4-M7A2N-000
RATCHET AXIS 1
FTA-A32-8112
13
LG4-M6A2B-000
RACKING SUB LEVER 1 FTA-A24-8116
14
LG4-M6A2C-000
SHUTTER DRIVE PIN 1
FTA-A24-8116-1
15
LG4-M6A2D-000
MAIN ARM 1
FTA-A24-8117
16 LG4-M7A23-000 SPROCKET 1 FTA-A32-8104
17 LG4-M7A24-000 RATCHET 1
FTA-A32-8107
18 KW1-M552F-000 BEARING 2 MB0808DU
19 K87-M111P-000 SCREW,FLAT HEAD + 9 P2MK-3
20 K87-M111Y-000 SCREW , SET 2 3MY-4-F
21 K87-M23B3-000 SCREW , SET 1 3MY-5
22 K87-M111R-000 SCREW , SET 5 3MY-5-F
23 K87-M55BL-000 U NUT 1 4MH-U
24 K87-M11B9-000 CIRCLIP E 1 E-24
25
26
27
28
29
30
31
32
7-4
7-5
I･pulse F1 Series

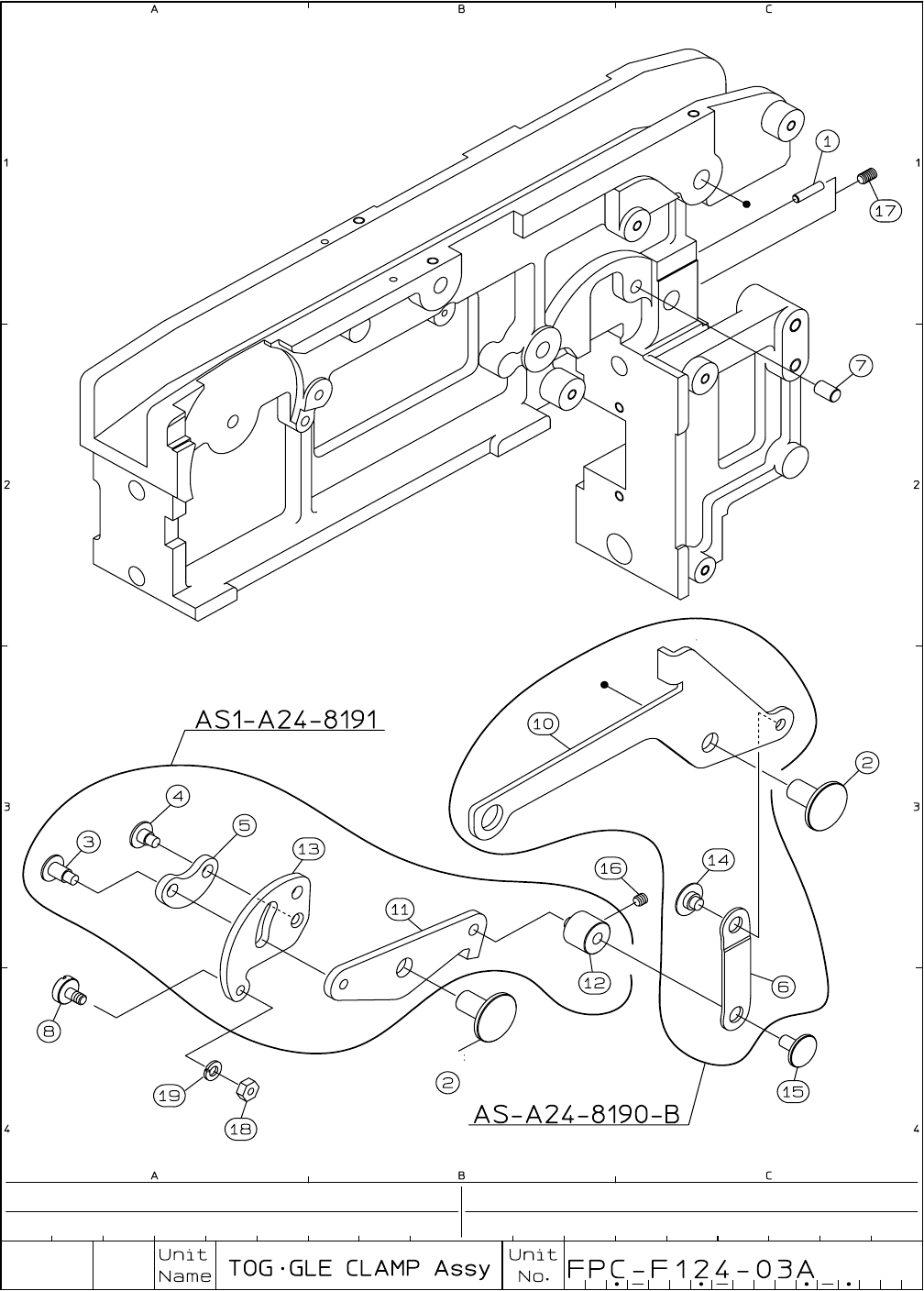

F1 - 24 ・32 (A type) 24・32mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-000
HOLD LEVER ASSY 1 AS-A24-8190-B
LG4-M6A3A-000
CLAMP LEVER 1 AS1-A24-8191
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 2
FTA-A08-8130-B
3
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
10
LG4-M6A31-000 HOLD LEVER
1 FTA-A24-8190-B
11
LG4-M6A3B-000 CLAMP LEVER
1 FTA-A24-8191
12
LG4-M6A3D-000
STUD 1 FTA-A24-8191-1
13
LG4-M6A3C-000 CLANK ARM
1 FTA-A24-8192
14
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
15
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
16 K87-M111T-000 SCREW , SET 1 3MY-3-F
17 K87-M111R-000 SCREW , SET 2 3MY-5-F
18
K87-M21BN-000
SCREW NUT
1
3MH
19 K87-M21BM-000 SPRING LOCK WASHER 1
3MU
20
21
22
23
24
25
26
27
28
29
30
31
32
7-6
