F1FeederPartsList.pdf - 第428页
4H- 9
I･pulse F1 Series
F1-12 (H type)
P 4
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M4A40-011
T.G.PLATE ASSY 1 AS-A12-8119-E
※1
1
LG4-M4A41-011
TAPE GUIDE PLATE 1
FTA-A12-8119-E
2
LG4-M4A42-010
SHUTTER PLATE 1
FTA-A12-8120-D
3
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
4
LG4-M1A44-000 SHUTTER PUSH SPRING
1
FTA-A08-8122-B
5
LG4-M4A43-010 SHUTTER GUARD PLATE
1
FTA-A12-8123-C
6
LG4-M1A4L-000 T.G. GUIDE SCREW
1
FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
9
LG4-M1A48-001 T.G. PUSH SPRING
1
FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-12-007718H～
4H-9
I･pulse F1 Series
F1-12 (H type)
P 5
No. Code No. Parts Name Q'ty Parts No.

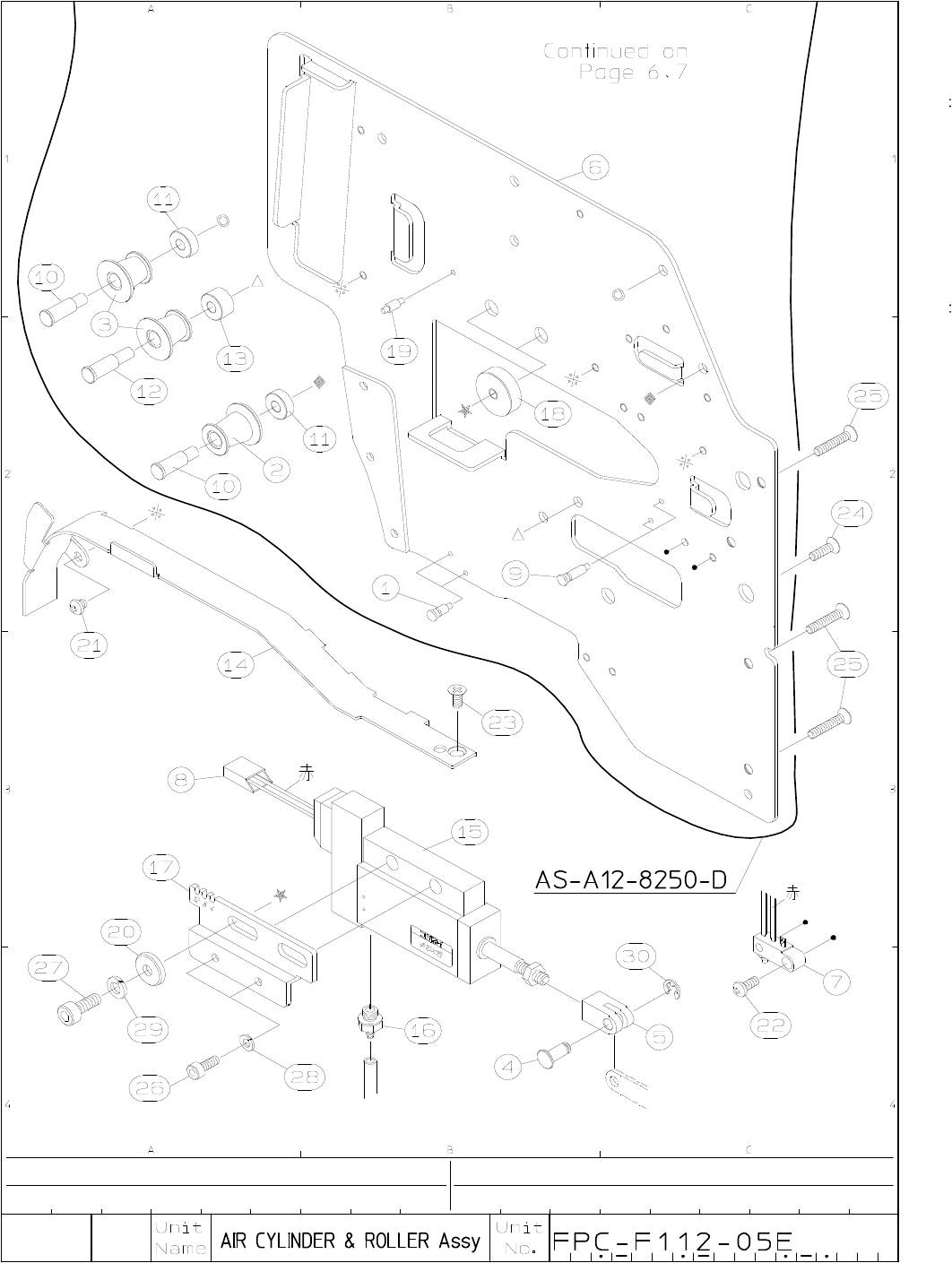

LG4-M4A60-120 BACK PLATE ASSY AS-A12-8250-D
1 K87-M116A-100 SPRING HOOK PIN CTF-M08- 166-B
2 LG4-M4A6G-000 TAPER ROLLER FTA-A12-8172-1
3 LG4-M4A6H-000 TAPER ROLLER FTA-A12-8172-2
4 LG4-M1A72-000 CONNECT PIN FTA-A08-8146
5 LG4-M1A71-000 ROD CONNECT FTA-A08-8147
6 LG4-M4A61-120 BACK PLATE FTA-A12-8250-D
7 LG4-M1AA3-000 MICRO SWITCH ASSY FTA-A08-8151-6
8 LG4-M1AA4-000 VALVE HARNESS ASSY FTA-A08-8151-7
9 LG4-M4A6J-000 SPRING HOOK PIN FTA-A12-8156
10 LG4-M4A6A-000 ROLLER AXIS T FTA-A12-8173
11 LG4-M4A6C-000 LEAF T FTA-A12-8173-1
12 LG4-M4A6B-000 ROLLER AXIS U FTA-A12-8174
13 LG4-M4A6D-000 LEAF U FTA-A12-8174-1
14 LG4-M4A6N-001 MIDDLE GUIDE PLATE C FTA-A12-8176-D
15 LG4-M4AB1-000 VAL PACK CYLINDER BDA10×15-343W
16 LG4-M1AB3-000 BARB CONNECTOR BF3BU-136W
17 LG4-M4A73-001 ADJUST PLATE FTA-A12-8151-D
18 LG4-M4A6E-010 ADJUST PLATE STUD FTA-A12-8151-1B
19 LG4-M4A6F-000 SET PIN FTA-A12-8152
20 LG4-M4A74-000 PLANE WASHER FTA-A12-8154-B
21 K87-M111N-000 SCREW,PAN HEAD+ 3MC-3-P
22 LG4-M1ADC-000 SCREW PAN HEAD+ 3MC-7-P
23 LG4-M4ADE-000 SCREW,FLAT HEAD+ 3MK-7-P
24 KW1-M45BG-000 SCREW,FLAT HEAD+ 3MK-10-P
25 LG4-M4ADD-000 SCREW,FLAT HEAD+ 3MK-15-P
26 K87-MB01H-000 BOLT,HEX SOCKET HEAD 3MX-8-P
27 K87-M23BB-000 BOLT,HEX SOCKET HEAD 4MX-10-P
28 K87-M21BM-000 SPRING LOCK WASHER 3MU-P
29 LG4-M4AD3-000 SPRING LOCK WASHER 4MU-P
30 K87-M11D7-000 CIRCLIP E E.32
31
32
33
4H-10
