2D-9
I･pulse F1 Series
F1 - 825 (D type) 8mm - 2P(1005)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M2A40-012 Tape Guide Plate Assy 1 AS -A08-8119-05C
1
LG4-M2A41-011 Tape Guide Plate 1 FTA-A08-8119-05C
2
LG4-M2A42-010 Shutter Plate 1 FTA-A08-8120-05B
3
LG4-M1A45-000 Shutter Guide Pin 2 FTA-A08-8121
4
LG4-M1A44-001 Shutter Push Spring 1 FTA-A08-8122-B
5
LG4-M1A43-020 Shutter Guard Plate 1 FTA-A08-8123-E
6
LG4-M1A4L-000 T.G. Guide Screw 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. Guide Pin 1 FTA-A08-8125
8
LG4-M1A46-000 Lock Lever 1 FTA-A08-8127-B
9 LG4-M1A48-001
Tape Guide Push Spring 1 FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. Guide Pin 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2D-8
2D-9
I･pulse F1 Series

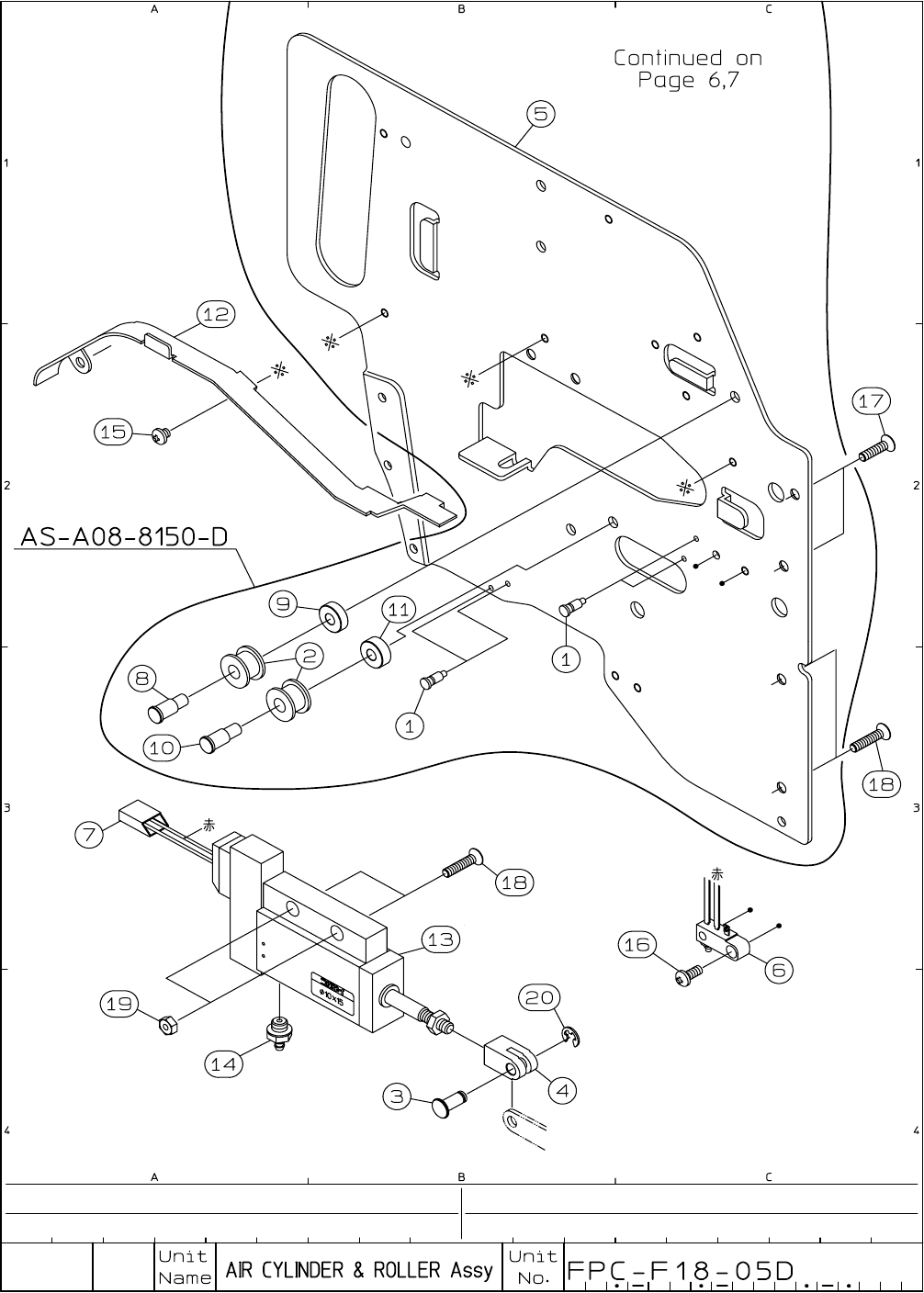

F1-82-1005(D type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-012
BACK PLATE ASSY
1
AS -A08-8150-D
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 KW1-M116U-000
ROLLER
2 CTF-M08- 342
3 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
4 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
5 LG4-M1A61-012
BACK PLATE
1 FTA-A08-8150-D
6 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
7 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
8 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
9 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
10 LG4-M1A6B-000
ROLLER AXIS U
1 FTA-A08-8174
11 LG4-M1A6D-000
LEAF U
1 FTA-A08-8174-1
12 LG4-M1A6N-000
MIDDLE GUIDE PLATE C
1 FTA-A08-8176-C
LG4-M1AB1-000
VAL PACK CYLINDER
1 BDA10×15-327W
LG4-M1AB1-001
VAL PACK CYLINDER
1 BDA10×15-350W
14
LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
15 K87-M111N-000
SCREW,PAN HEAD+
3 3MC-3-P
16 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
17 K87-M11B4-100
SCREW,FLAT HEAD+
2 3MK-12-P
18 LG4-M1ADD-000
SCREW,FLAT HEAD+
4 3MK-14-P
19 K87-M21BN-000
SCREW,NUT
2 3MH
20 K87-M11D7-000
CIRCLIP E
1 E-32
21
22
23
24
25
26
27
28
29
30
31
32
13
2D-10
