I･pulse　 F1　Series
F1-16 (H type)
P 1

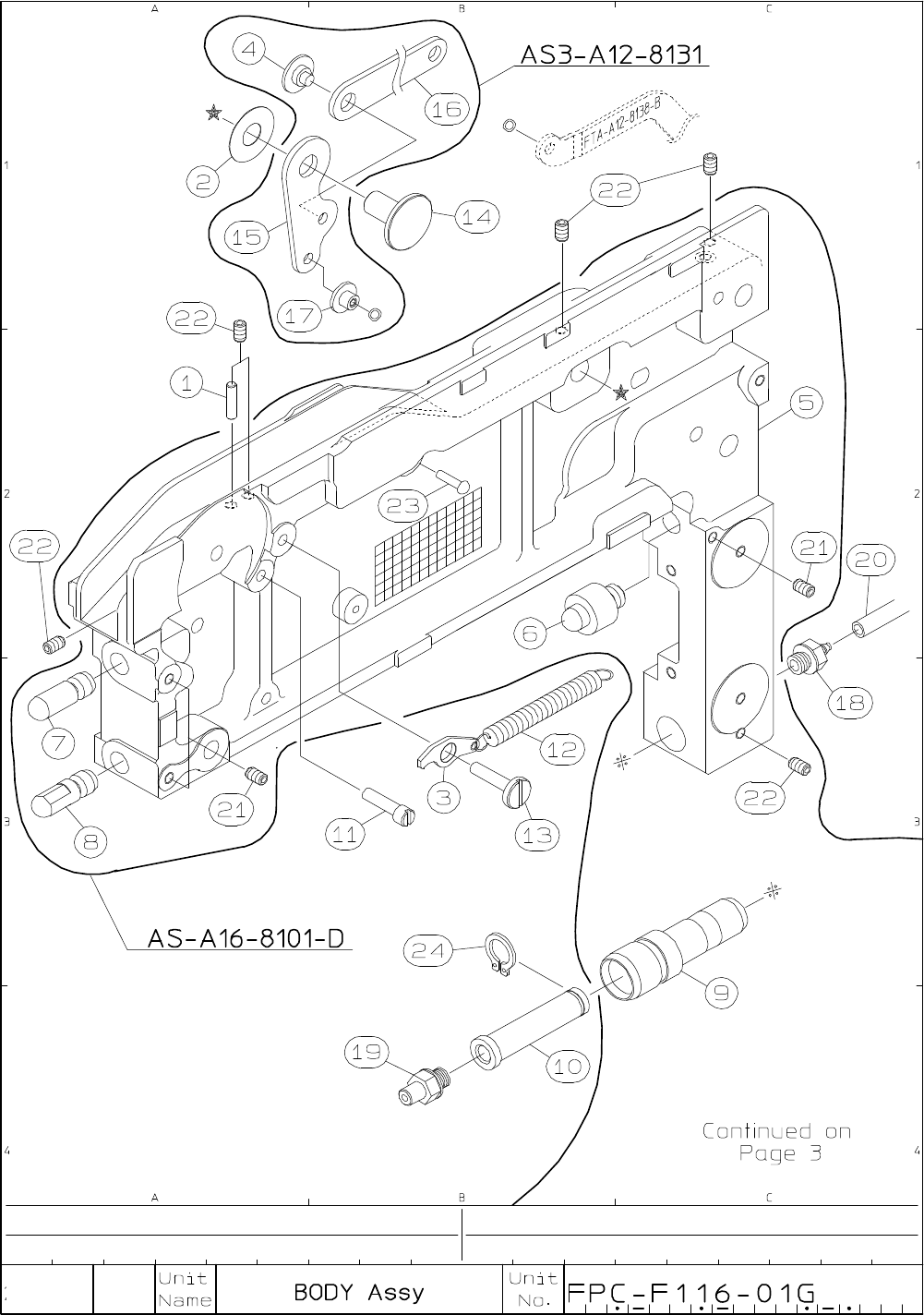

No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M5A10-040 BODY ASSY 1 AS -A16-8101-D
LG4-M4A1M-010 MAIN LEVER ASSY 1 AS3-A12-8131
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A1L-000 THRUST WASHER 1 CTF- 53- 38-02
3 K87-M111H-200 BACK STOPPER 1 FTA-A08-1114
4 LG4-M4A1T-000 ARM AXIS PIN 1 FTA-A12-8134
※1 5 LG4-M5A11-030 BODY 1 FTA-A16-8101-D
6 LG4-M1A12-500 MAIN GUIDE PIN 1 FTA-E08-8502
7 LG4-M1A13-500 LOCATE PIN R 1 FTA-E08-8503
8 LG4-M1A14-500 LOCATE PIN F 1 FTA-E08-8504
9 LG4-M4A15-000 PLUG HOLDER GUIDE 1 FTA-A12-8105
10 LG4-M1A16-000 PLUG HOLDER 1 FTA-A08-8106
11 KW1-M221F-100 STOPPER PIN 1 CTF-M12- 313
12 LG4-M4A19-001 BACK STOPPER RE. SP. 1 FTA-A08-6164-1600
13 K87-M211B-000 BACK STOPPER AXIS 1 CTF-M12- 315
14 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M4A1N-000 MAIN LEVER 1 FTA-A12-8131
16 LG4-M4A1P-000 ARM 1 FTA-A12-8135-B
17 LG4-M4A1S-000 ARM AXIS PIN 1 FTA-A12-8139
18 K87-M1186-000 BARB CONNECTOR 1 BF3BU
19 LG4-M1AB2-000 PLUG 1 MA-MC05PM
20 LG4-M4ABA-010 AIR HOSE 1 U3B-167
21 K87-M23B3-000 SCREW,SET　 3 3MY-5
22 K87-M111R-000 SCREW,SET　 6 3MY-5-F
23 K87-M1115-000 CIRCULAR RIVET 1 2-10
24 LG4-M1AD2-000 CIRCLIP C 1 STW-7
25
26
27
28
29
30
31
32
※1…F1-16-006015H～
