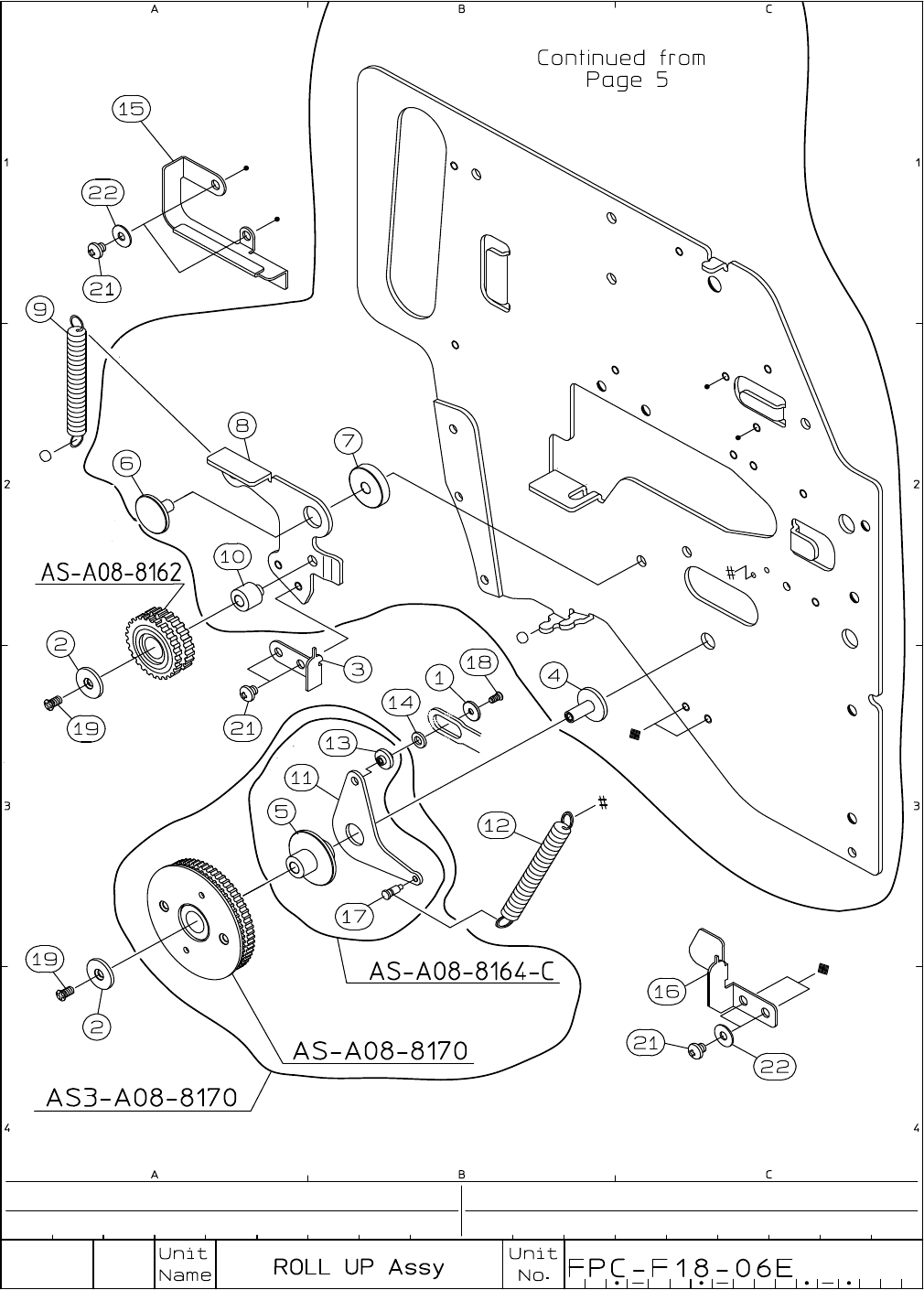

I･pulse F1 Series F1-825 （F type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M1A60-130 BACK PLATE ASSY 1 AS -A08-8250-B LG4-M1A60-140 BACK PLATE ASSY 1 AS1-A08-8250-B LG4-M1A68-000 TENSION LEVER ASSY 1 AS -A08-8…
I･pulse F1 Series
F1-825 （F type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-130
BACK PLATE ASSY
1
AS -A08-8250-B
LG4-M1A60-140
BACK PLATE ASSY
1
AS1-A08-8250-B
LG4-M1A68-000
TENSION LEVER ASSY
1
AS -A08-8168
1 K87-M116A-100 SPRING HOOK PIN 2 CTF-M08- 166-B
2 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
3 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
4 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
5 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
6 LG4-M1A6K-000
TENSION LEVER
1
FTA-A08-8168
7 LG4-M1A6L-000
COIL SPRING
1
FTA-A08-8168-SP
8 LG4-M1A6E-000 METAL 1 FTA-A08-8169
9 LG4-M1A6F-000
ROLLER
3 FTA-A08-8172
10 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
11 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
12 LG4-M1A6B-010
ROLLER AXIS U
1 FTA-A08-8174-B
13 LG4-M1A6N-010
MIDDLE GUIDE PLATE C
1 FTA-A08-8176-D
14
LG4-M1A61-110
BACK PLATE
1 FTA-A08-8250-B
15
LG4-M5A6D-000 LEAF U
1 FTA-A16-8174-1
16 LG4-M1A69-500
ROLLER AXIS U
1
FTA-E08-8582
17 LG4-M1AB1-010
VAL PACK CYLINDER
1 BDA10×15-380W
18 LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
19 K87-M111N-000
SCREW,PAN HEAD+
3 3MC-3-P
20 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
21 K87-M11B4-100
SCREW,FLAT HEAD+
1 3MK-12-P
22 LG4-M1ADD-000
SCREW,FLAT HEAD+
5 3MK-14-P
23 K87-M23B6-000
SCREW,FLAT HEAD+
1 4MK-8-P
24 K87-M21BN-000
SCREW,NUT
2 3MH-P
25 K87-M11D7-000
CIRCLIP E
1 E.32
26
27
28
29
30
※1…F1-825-016886F～
※1
