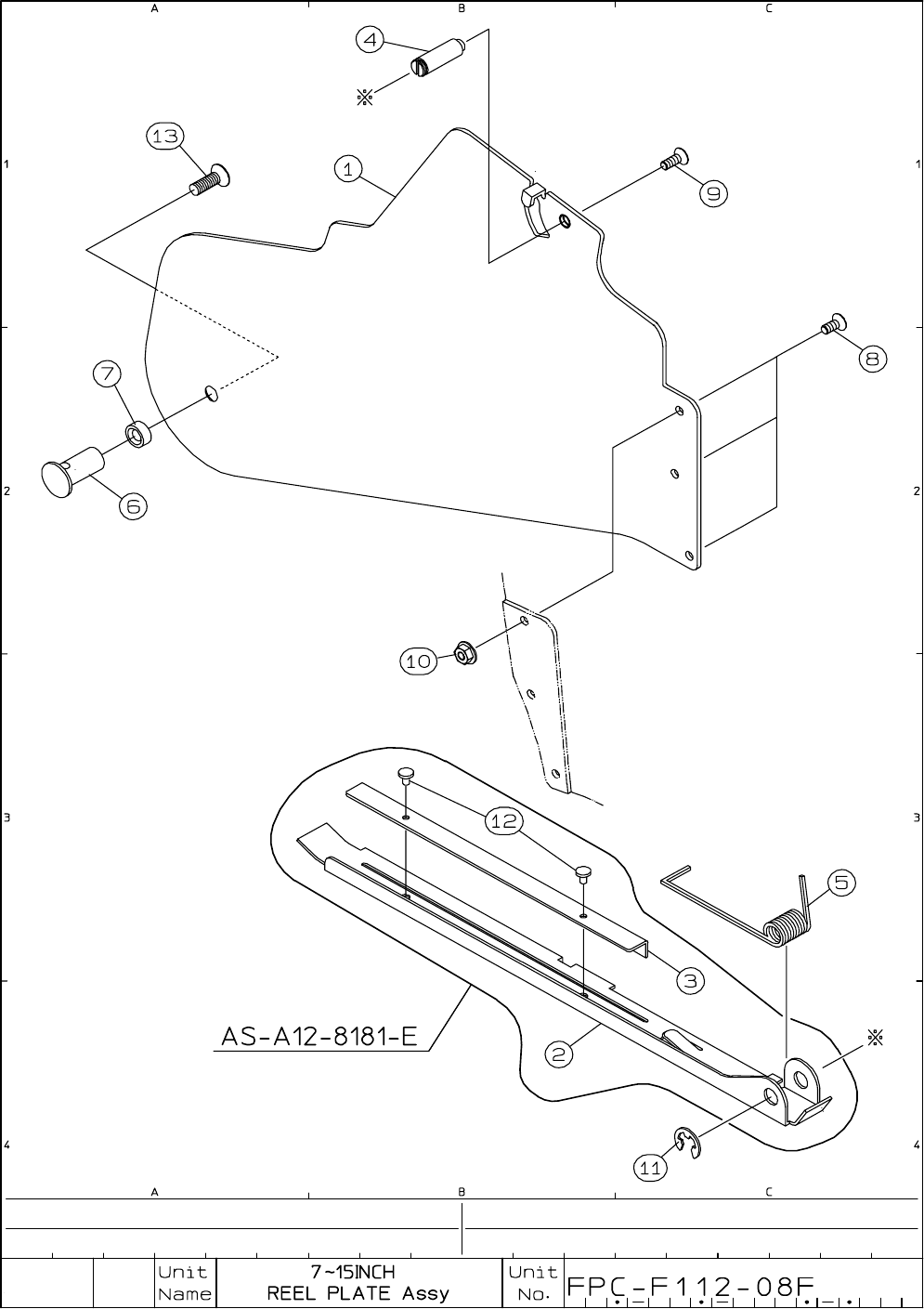

I･pulse F1 Series F1-12 (G type) P 8 No. Code No. Parts Name Q'ty Parts No. LG4-M4A9D-001 TENSION LEVER ASSY 1 AS-A12-8181-E ※1 1 LG4-M4A91-012 REEL PLATE 1 FTA-A12-8180-E 2 LG4-M4A9A-002 TENSION LEVER 1 FTA-A12-818…
4G-15
I･pulse F1 Series
F1-12 (G type)
P 8
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A9D-001 TENSION LEVER ASSY
1
AS-A12-8181-E
※1 1
LG4-M4A91-012 REEL PLATE
1
FTA-A12-8180-E
2
LG4-M4A9A-002 TENSION LEVER
1
FTA-A12-8181-E
3
LG4-M4A9C-001 GUIDE ARM
1 FTA-A12-8181-E1
4
LG4-M4A92-010 TENSION AXIS
1
FTA-A12-8182-B
5
LG4-M4A9B-001 COIL SPRING
1 FTA-A12-8183-C
※1 6
LG4-M4A93-010 REEL AXIS
1 FTA-A12-8185-C
※1 7 LG4-M4A9E-010
SPACER
1
FTA-A12-8187-C
8
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
9 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
10 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
11
LG4-M4AD4-000 CIRCLIP E
1 E.50
12
LG4-M4AD5-000 FLAT RIVET
2
2×4-2.5-BS
※1 13
LG4-M4ADH-000
SCREW,FLAT HEAD+ 1 4MK-12-P
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1．．．F1-12-5438G～
