I･pulse　 F1　Series
F1　-　32 　　(A type)　　　32mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M7A60-000
BACK PLATE ASSY 1 AS2-A24-8150-B
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4
LG4-M1A72-000
CONNECT PIN 1 FTA-A08-8146
5
LG4-M7A63-000
ROLLER SHAFT 1 FTA-A32-8132-B
6
LG4-M7A64-000
SHAFT 1 FTA-A32-8140
7
LG4-M6A71-000
ROD CONNECTER 1 FTA-A24-8142
8
LG4-M6A73-000
ADJUST PLATE 1 FTA-A24-8148-B
9
LG4-M6A74-000
CYLINDER BRACKET 1 FTA-A24-8149-B
10
LG4-M6A61-000
BACK PLATE 1 FTA-A24-8150-B
11
LG4-M7A62-000
REEL SHAFT 1 FTA-A32-8151
12
LG4-M6AB1-000
SLIM VAL PACK AIR CYLINDER ASSY 1 FTA-A24-8157
13
LG4-M6A6A-000
GUIDE PLATE 1 FTA-A24-8177-B
14 K87-M56C1-000 BARB CONNECTOR 1 BF4BU
15
K87-M111N-000
SCREW,PAN HEAD + 2 3MC-3-P
16 K87-M111S-000 SCREW,FLAT HEAD + 2 3MK-6-P
17
LG4-M4ADE-000
SCREW,FLAT HEAD + 1 3MK-7-P
18 KW1-M45BG-000 SCREW,FLAT HEAD + 1 3MK-10-P
19 K87-M11B4-100 SCREW,FLAT HEAD + 4 3MK-12-P
20 LG4-M6ADE-000 SCREW,FLAT HEAD + 2 4MK-10-P
21 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
22 K87-M21BN-000 SCREW NUT 1 3MH
23 K87-M11D7-000 CIRCLIP E 1 E-32
24 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
25
26
27
28
29
30
31
32
33
7-12
7-13

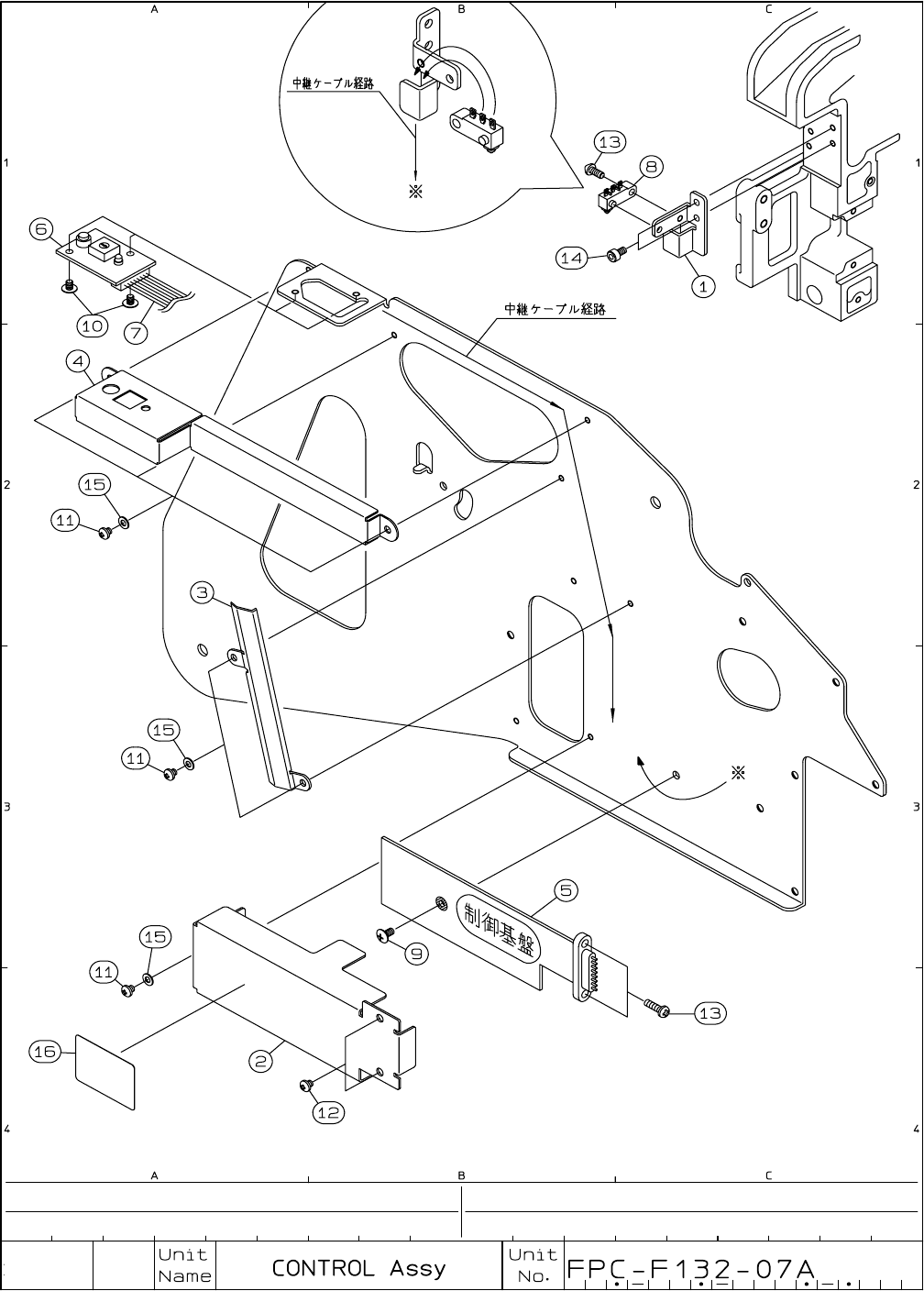

I･pulse　 F1　Series
F1　-　32 　(A type)　　　32mm
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M6A1A-000
MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2
LG4-M6A6B-000
C.B.COVER 1
FTA-A24-8137-B
3
LG4-M6A6C-000
COVER 1 FTA-A24-8138-B
4
LG4-M6A6D-000
LED,SWITCH COVER 1 FTA-A24-8139-B
5
LG4-M6AA1-000
CONTROL BOARD 1
FTA-A24-8153-FCN1
6
LG4-M6AA2-000
CONTROL BOARD 1 FTA-A24-8154
7
LG4-M6AA4-000 VALVE HARNESS ASSY
1 FTA-A24-8155
8
LG4-M6AA3-000 MICRO SWITCH ASSY
1 FTA-A24-8156
9 K87-M534F-000
SCREW,TRUSS HEAD +
1
T3M-4-P
10 K87-M23BL-000
SCREW,TRUSS HEAD +
2
T3M-5-P
11
K87-M111N-000
SCREW,PAN HEAD + 6 3MC-3-P
12 K87-M53BS-000 SCREW,PAN HEAD + 2 3MC-4-P
13
LG4-M1ADC-000
SCREW,PAN HEAD + 3
3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
16
LG4-M7AC2-000
FEED PITCH SET UP STICKER 1 FTA-A32-8137-SPS
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
