8-7
I･pulse F1 Series
F1 - 44 (A type) 44mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-000
HOLD LEVER ASSY 1 AS-A24-8190-B
LG4-M8A3A-000
CLAMP LEVER 1 AS2-A24-8191
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 2
FTA-A08-8130-B
3
LG4-M1A3A-000
HINGE PIN 1 1
FTA-A08-8191-1
4
LG4-M1A3B-000
HINGE PIN 2 1
FTA-A08-8192-1
5
LG4-M1A36-000
ARM 1
FTA-A08-8193
6
LG4-M1A33-000
LINK PLATE 1
FTA-A08-8194
7
LG4-M1A3L-000
CLANK ARM AXIS PIN 1
FTA-A08-8195
8
LG4-M1A37-000
ADJUST CLAMP PIN 1
FTA-A08-8196
9
10
LG4-M6A31-000
HOLD LEVER 1 FTA-A24-8190-B
11
LG4-M6A3B-000
CLAMP LEVER 1 FTA-A24-8191
12
LG4-M8A3D-000
STUD 1 FTA-A44-8191
13
LG4-M6A3C-000
CLANK ARM 1 FTA-A24-8192
14
LG4-M6A32-000
LINK PIN T 1
FTA-A24-8198
15
LG4-M6A39-000
LINK PIN U 1
FTA-A24-8199
16 K87-M111T-000 SCREW , SET 1 3MY-3-F
17 K87-M111R-000 SCREW , SET 2 3MY-5-F
18
K87-M21BN-000 SCREW NUT 1
3MH
19 K87-M21BM-000 SPRING LOCK WASHER 1
3MU
20
21
22
23
24
25
26
27
28
29
30
31
32
8-6
8-7
I･pulse F1 Series
F1 - 44 (A type) 44mm
No. Code No. Parts Name Q'ty Parts No.

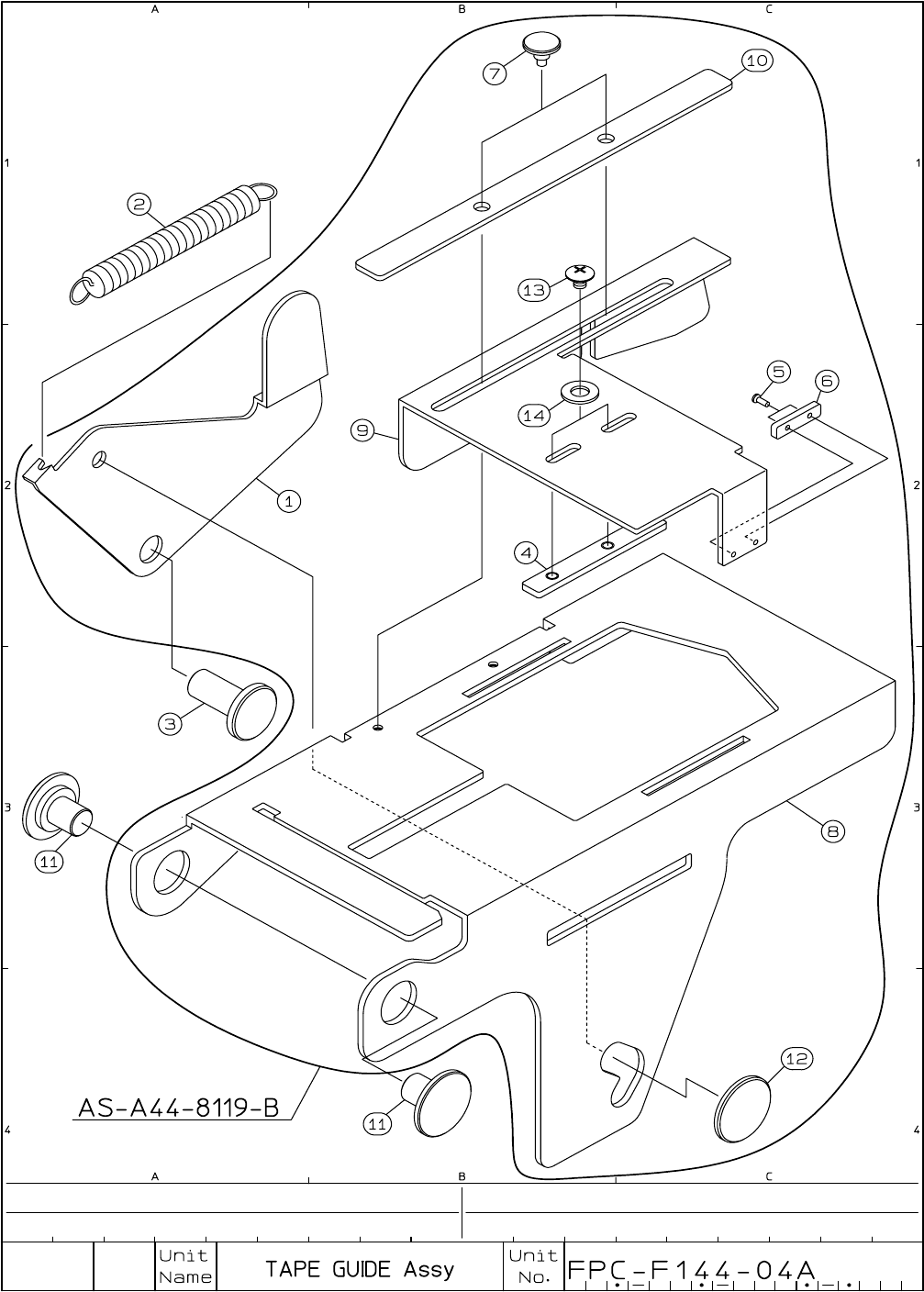

LG4-M8A40-000
TAPE GUIDE PLATE ASSY 1 AS-A44-8119-B
1
LG4-M7A46-000
LOCK LEVER 1
FTA-A32-8127
2
LG4-M1A48-000
TAPE GUIDE PUSH SPRIN
G
1
FTA-A08-8127-500
3
LG4-M1A4K-000
T.G.A. GUIDE PIN 1
FTA-A08-8129
4
LG4-M7A43-000
SHUTTER PIECE 1
FTA-A32-8120-1
5 KW1-M4548-000 RIVET 2
FTA-A24-1120-2
6 KW1-M4549-000 SHUTTER GUIDE 1
FTA-A24-1120-3
7 KW1-M4544-000 SHUTTER GUIDE PIN 2
FTA-A24-1122-B
8
LG4-M8A41-000
TAPE GUIDE PLATE 1
FTA-A44-8119-B
9
LG4-M8A42-000
SHUTTER PLATE 1
FTA-A44-8120
10
LG4-M6A49-000
COVER PLATE 1
FTA-A24-8123
11
LG4-M6A4L-000
TAPE GUIDE AXIS PIN 2
FTA-A24-8124
12
LG4-M6A47-000
T.G. GUIDE PIN 1
FTA-A24-8125
13 K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
