3.4.8 Maneuvering distance for the component trolley on the X3 machine
3
3

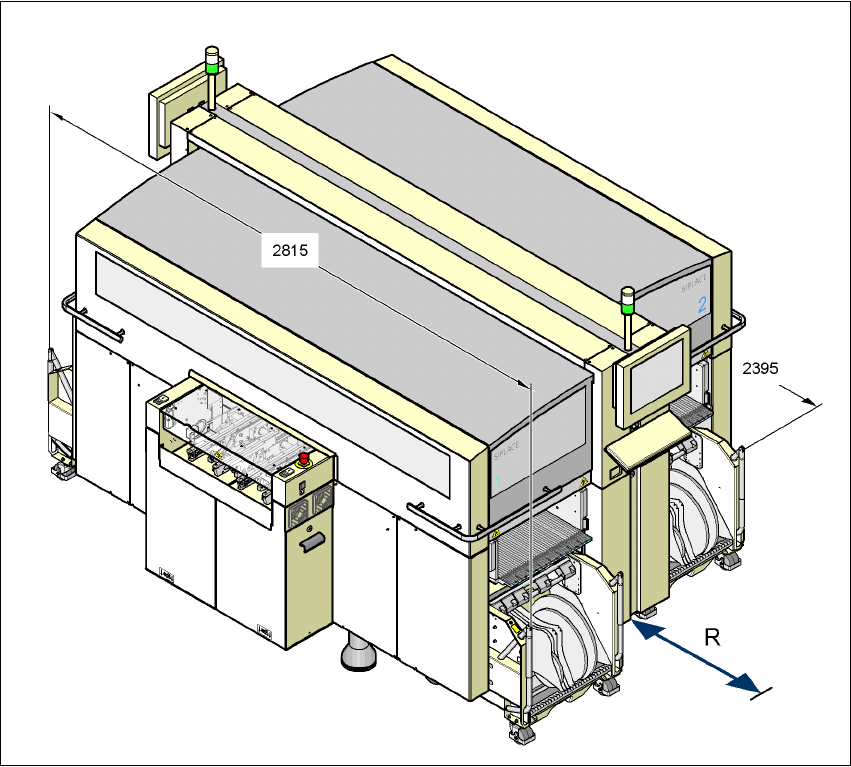

Fig. 3.4 - 7 Maneuvering distance for the component trolley on the X3 machine
The maneuvering distance R of the component trolley on the X3 machine is:
– at locations 1, 3 and 4
750 mm with the handles folded down or
1050 mm with the handles folded u,
– at location 2
600 mm with the handles folded down or
900 mm with the handles folded up.
User manual SIPLACE X-Series 3 Technical data
Software Version SR.601.xx 11/2005 US Edition 3.4 Dimensions and weight of the placement machine
109
3.4.9 Maneuvering distance for the component trolley on the X2 machine
3
3
Fig. 3.4 - 8 Maneuvering distance for the component trolley on the X2 machine
The maneuvering distance R of the component trolley on the X2 machine is:
– at locations 2 and 4
600 mm with the handles folded down or
900 mm with the handles folded up
– at location 1 and 3
750 mm with the handles folded down or
1050 mm with the handles folded up.
3 Technical data User manual SIPLACE X-Series
3.4 Dimensions and weight of the placement machine Software Version SR.601.xx 11/2005 US Edition
110
3.4.10 Center of gravity for the X-series placement machines
3
3
3
Fig. 3.4 - 9 Center of gravity of the X-series machines in millimeters
3
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
These center of gravity coordinates relate to placement systems with a PCB transport height of
830 mm.
