7.3.1.2 Position of the component vision cameras for the TwinHead on the
X2 placement machine
7
Fig. 7.3 - 3 Position of the component vision cameras for the TwinHead on the X2 placement machine
(1) Assembly position for the CO vision camera (stationary, P&P (type 25) 16 x 16), location 1
(2) Assembly position for the CO vision camera (stationary, P&P (type 33) 55 x 45), location 1
(3) Assembly position for the CO vision camera (stationary, P&P (type 25) 16 x 16), location 3
(4) Assembly position for the CO vision camera (stationary, P&P (type 33) 55 x 45), location 3
7 Station extensions User manual SIPLACE X-Series
7.3 Component camera for the TwinHead, FC camera Software Version SR.601.xx 11/2005 US Edition
414
7.3.1.3 Technical data
7
7
7
7
7.3.2 Safety instructions for the TwinHead component cameras during
a placement head change
WARNING 7
When the placement head is changed from the TwinHead to the Collect&Place head, the Twin-
Head's component cameras (stationary, P&P, type 33, 55 x 45, and type 25, 16 x 16) must be
removed, otherwise the Collect&Place head will collide with the camera housings.
Component dimensions 0.2 x 0.2 mm² up to 16 x 16 mm² for single component measurement
Range of components 0201 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19 x 19 mm²
Method of illumination Front-lighting (6 levels, programable as required)
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.4 Multicolor PCB camera, type 24, digital
415
7.4 Multicolor PCB camera, type 24, digital
7.4.1 Structure
Item no. 00119774-xx
7

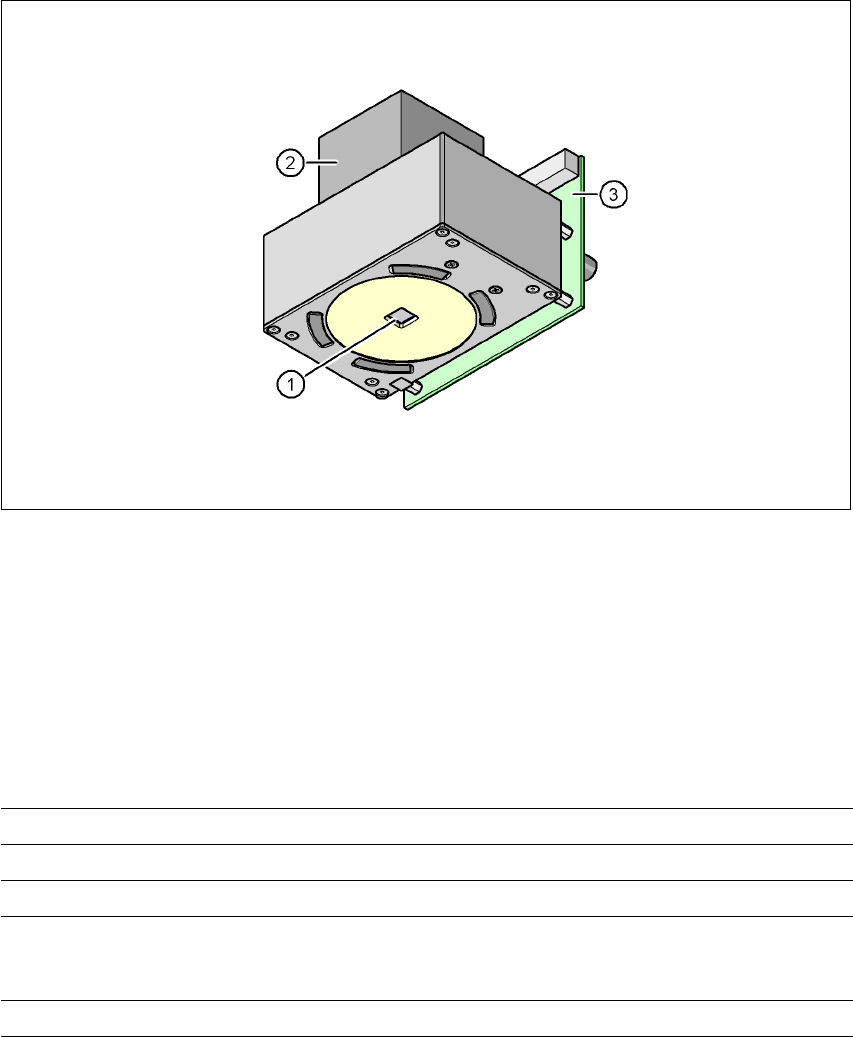

Fig. 7.4 - 1 Digital multicolor PCB camera, type 24
(1) PCB camera lens and illumination
(2) Camera amplifier
(3) Illumination control
7
7
7.4.2 Technical data
7
Field of vision 5.7 x 5.7 mm²
Distance from the focus plane 28 mm
Method of illumination Front-lighting (5 levels, programable as required)
Fiducial size 0.3 mm to 2.5 mm edge length for a PCB feeder tolerance
of ± 1.0 mm
to 3.0 mm edge length for a PCB feeder tolerance of < 1.0 mm
Bad fiducial size 0.3 mm to 3.0 mm edge length
