6 Component handling User manual SIPLACE X-Series 6.10 Matrix tray changer Software Version S R.601.xx 11/2005 US Edition 366 6 Fig. 6.10 - 2 Matrix tray changer 2, front view (1) Feed ax is 1 (2) Feed ax is 2 (3) Interf…
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.10 Matrix tray changer
365
6

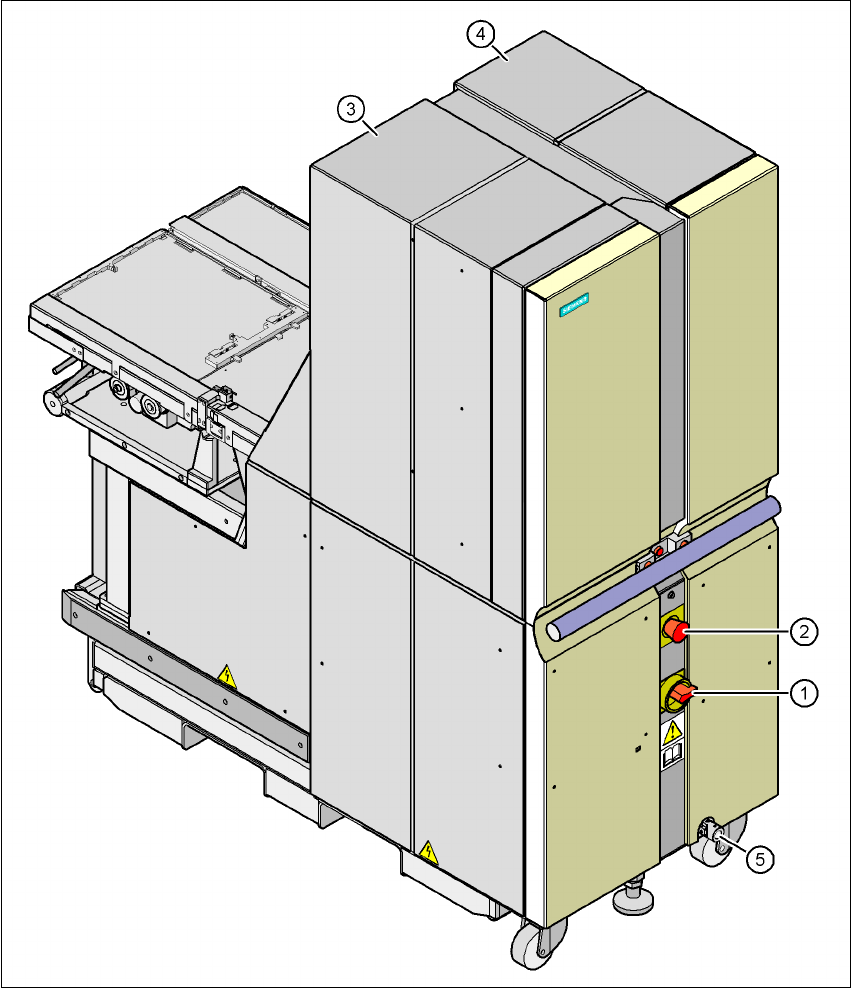

Fig. 6.10 - 1 Matrix tray changer 2, back view
(1) Main power switch
(2) Emergency stop button
(3) Tower 1 for holding up to 30 waffle-pack tray carriers (up to 60 JEDEC trays)
(4) Tower 2 for holding up to 40 waffle-pack tray carriers (up to 40 JEDEC trays)
(5) Point for attaching the crank for adjusting the height of matrix tray changer 2
6 Component handling User manual SIPLACE X-Series
6.10 Matrix tray changer Software Version SR.601.xx 11/2005 US Edition
366
6
Fig. 6.10 - 2 Matrix tray changer 2, front view
(1) Feed axis 1
(2) Feed axis 2
(3) Interface plug for docking in to the placement machine
(4) Electronic control unit
(5) Integral chassis
(6) Cable gland for the power supply cable
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.10 Matrix tray changer
367
6
Fig. 6.10 - 3 Matrix tray changer 2, dimensions, all dimensions in
