User manual SIPLAC E X-Series 6 Component han dling Software Version SR.601.xx 11/2005 US Edition 6.6 S feeder modules for the SIPLACE HF component trolley 343 6.6.2.14 Bulk case feeder module 6 Fig. 6.6 - 14 Bulk case f…
6 Component handling User manual SIPLACE X-Series
6.6 S feeder modules for the SIPLACE HF component trolley Software Version SR.601.xx 11/2005 US Edition
342
6.6.2.13 Linear vibratory feeder, type 3
Fig. 6.6 - 13 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Wide 28 mm 6
Tracks per feeder module 1, 2, 3, or 6 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / 1 x 6
Cycle time variable with SIPLACE Pro from 400 to
over 1,000 msec 6
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.6 S feeder modules for the SIPLACE HF component trolley
343
6.6.2.14 Bulk case feeder module
6
Fig. 6.6 - 14 Bulk case feeder module
Item no. 00142318-xx 6
Wide 29 mm 6
Tracks per feeder module 2 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components up to 50,000 6
Feeding rails 0402 / 0.35 mm high item no. 00142319-xx 6
0402 / 0.5 mm high item no. 00142320-xx 6
0603 / 0.45 mm high item no. 00142321-xx 6
0603 / 0.80 mm high item no. 00142322-xx 6
0805 / 0.45 mm high item no. 00142323-xx 6
0805 / 0.60 mm high item no. 00142324-xx 6
0805 / 0.85 mm high item no. 00142325-xx 6
0805 / 1.25 mm high item no. 00142326-xx 6
Micro Melf / 1.05 ± 0.05 mm item no. 00142327-xx 6
Mini Melf / 1.40 ± 0.1 mm item no. 00142328-xx 6
Cycle time < 60 ms 6
6 Component handling User manual SIPLACE X-Series
6.6 S feeder modules for the SIPLACE HF component trolley Software Version SR.601.xx 11/2005 US Edition
344
6.6.2.15 Surf tape feeder module
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8 mm tapes and 12 or 16 mm tapes. 6
6

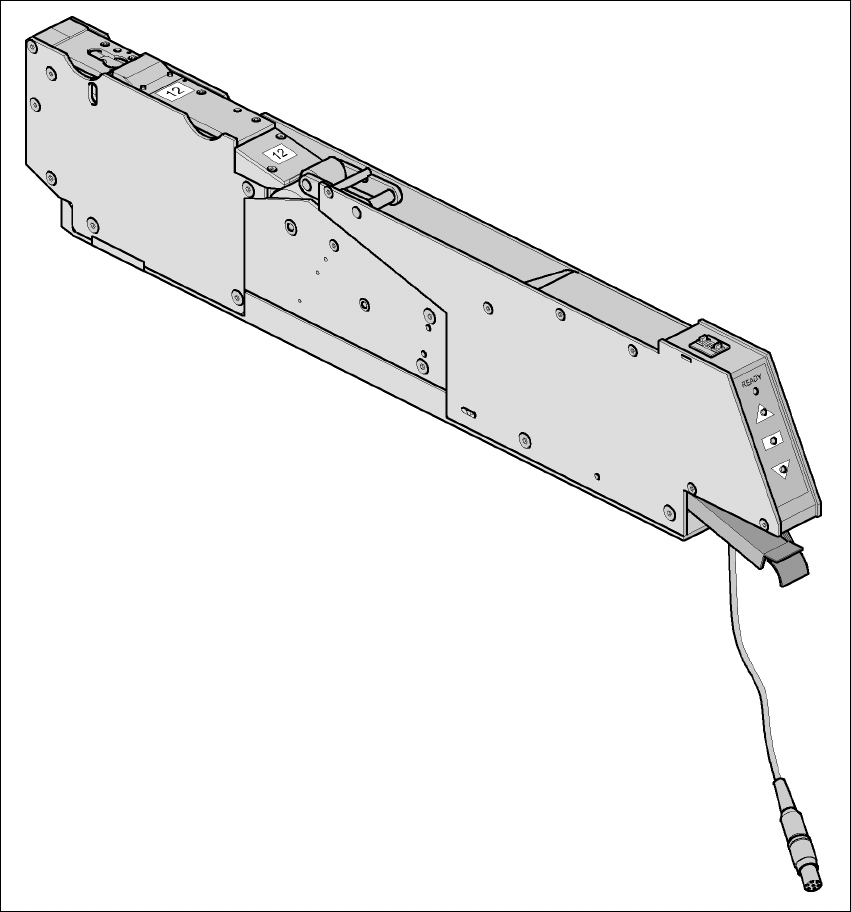

Fig. 6.6 - 15 Surf tape feeder module
6
The surf tape feeder module can be ordered from Hover-Davis (www.hoverdavis.com). Handling
of the feeder module is described in the operating instructions for feeder modules. 6
