7.6.2 Description of the functions
The PCB is transported into the placement area until the laser light barrier triggers the stop signal
for the PCB conveyor. The lifting table with the PCB stops then moves up into a position in which
the PCB is not yet clamped and can still be moved by the conveyor belts. The two PCB stops are
level with the PCB, and the PCB supports (magnetic pins) are already in contact with the PCB.
The two conveyor belts move the PCB against the PCB stops and align them at the same time.
The lifting table then moves into its top end position, clamps the PCB and releases it from the PCB
stops so as not to affect the placement process. After the placement process, the lifting table and
PCB alignment are lowered and the PCB is moved on.
7
7.7 SIEMENS interface
The conveyor interface on the placement machines from the X-series is configured to the SMEMA
standard. It is, however, still possible to use this interface in accordance with the SIEMENS stan-
dard. This is a significant benefit when an X-series machine is to be integrated into older SIPLACE
lines, in which case it would not be necessary to retrofit the older machines to conform to the
SMEMA standard.
Simply configure the conveyor interface of the X-series machines to the SIEMENS standard and
connect the machines using the associated interface cable.
More detailed information can be found in the SIEMENS conveyor interface retrofit instructions",
item no. 00194343-01.
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.8 Long board option
427
7.8 Long board option
Item no. 00119672-xx
The following PCB formats can be placed on X-series machines:
7
7
7
We can supply the "Long board" option as a retrofit kit for placing PCBs that are over 450 mm long.
If the "Long board" option is installed, then the following PCB formats can be processed:
7
7
7
The retrofit kit consists of the following parts:
– Complete mechanism: stopper, sensors, cables and assembly parts
– Optional CD for enabling the function on the SIPLACE Pro computer
– Retrofit instructions
PLEASE NOTE 7
The Long board option must be ordered 2x for the dual conveyor.
More detailed information can be found in the Long board retrofit instructions,
item no. 00193888-01.
Single conveyor 50 x 50 mm² to 450 x 508 mm²
Dual conveyor (standard width) 50 x 50 mm² to 450 x 216 mm²
Dual conveyor "Wide board" 50 x 50 mm² to 450 x 250 mm²
Dual conveyor in Single conveyor mode 50 x 50 mm² to 450 x 380 mm²
Dual conveyor in "Single conveyor", "Wide board" mode 50 x 50 mm² to 450 x 450 mm²
Single conveyor "Long board" 50 x 80 mm² to 610 x 508 mm²
Dual conveyor "Long board" 50 x 80 mm² to 610 x 216 mm²
Dual conveyor "Wide board", "Long board" 50 x 80 mm² to 610 x 250 mm²
Dual conveyor in "Single conveyor", "Long board" mode 50 x 80 mm² to 610 x 380 mm²
Dual conveyor in "Single conveyor", "Wide board",
"Long board" mode
50 x 80 mm² to 610 x 450 mm²
7 Station extensions User manual SIPLACE X-Series
7.9 Magnetic pin support Software Version SR.601.xx 11/2005 US Edition
428
7.9 Magnetic pin support
Item no. 00119680-xx
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting magnetic pin supports on the
lifting table.
7

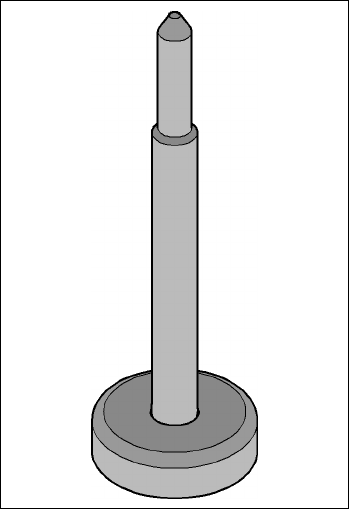

Fig. 7.9 - 1 Magnetic pin support
