2.2 Structure of Operation Windows

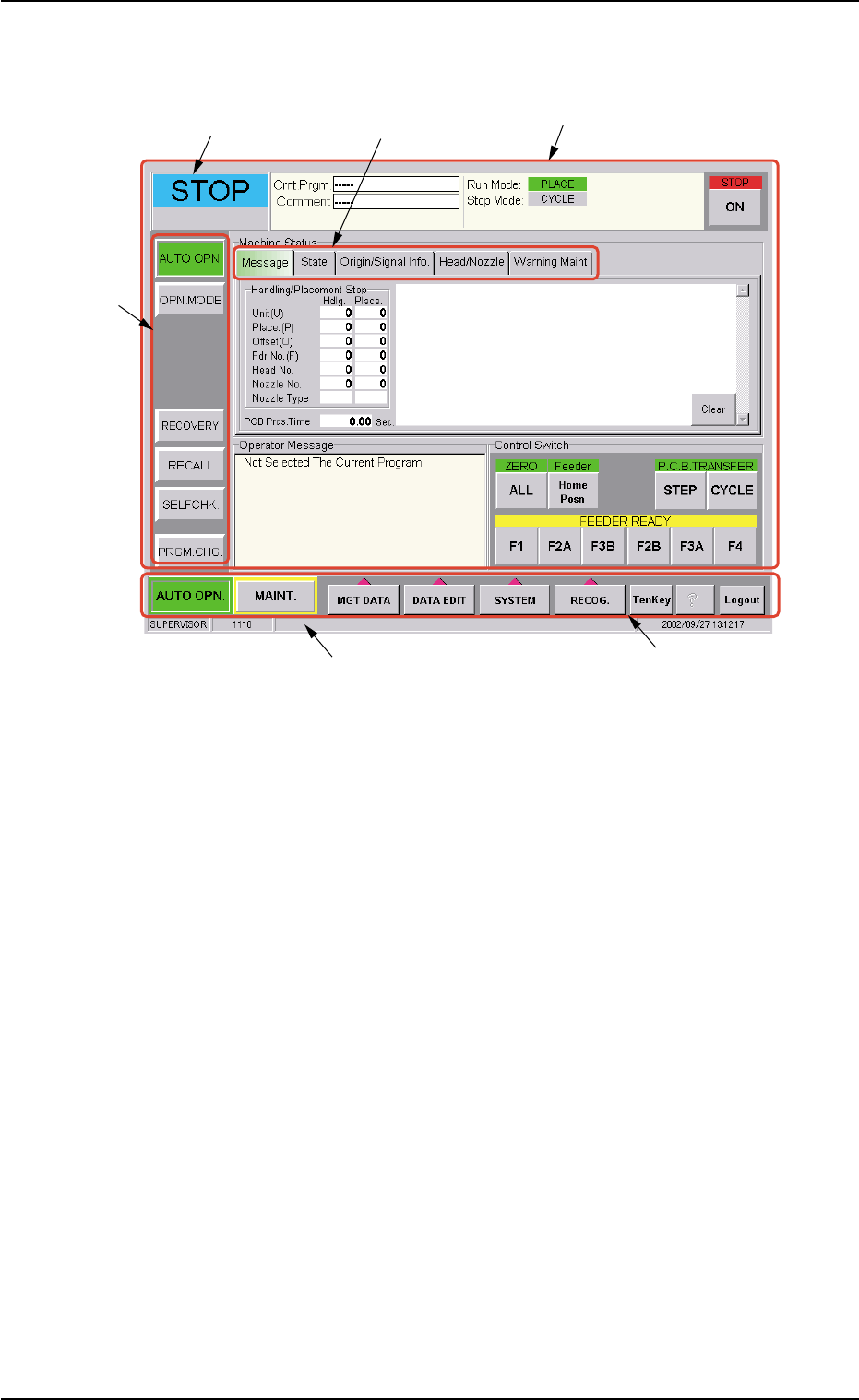

Fig. 1B4 Main Menu Bar and "AUTO OPN." Window
••
••
• Window Composition
*1 Main Menu Bar
The main menu bar has five buttons ([AUTO OPN.], [MAINT.], [MGT
DATA], [DATA EDIT], and [SYSTEM] buttons) as main menus, one
button ([RECOG.] button) for selection of a recognized image pat-
tern to be displayed, and three operation buttons ([TenKey], [?], and
[Logout] buttons).
Refer to "Section 4" in "Volume 2: Operation (Supervisor)" for the
main menu bar.
*2 Submenu Bar
The submenu bar has the buttons to select the submenus. When
each button on the submenu bar is selected, the corresponding
operation window opens.
When a button on the main menu bar is pressed, the corresponding
submenu bar appears.
Refer to "Section 4" in "Volume 2: Operation (Supervisor)" for the
submenu bar.
2.2 Structure of Operation Windows
*5 Current Mode
*4 Operation Window
(Menus for Automatic Operation)
*6 Supplementary Explanation
*1 Main Menu Bar
*3 Tab
*2 Sub Menu Bar
0210-004 2 - 6 AFO01EOPP
*3 Tabs
When a window is composed of several sheets, all sheets are pro-
vided with extensions called "Tab" and laid on top of each other so
that the tab of each is visible.
Refer to "Section 4" in "Volume: Operation (Supervisor)" for the tabs.
*4 Operation Window
This window is provided with main menus related to the automatic
operation of the machine.
All operations required for automatic operation are included in this
window.
When the [MAINT.] button on the main menu bar is pressed, the
"MAINT." window opens.
Refer to "Section 5" in "Volume 2: Operation (Supervisor)" for the
composition of the "AUTO OPN." window and "Section 6" in "Vol-
ume 2: Operation (Supervisor)" for the composition of the "MAINT."
window.
*5 Current Mode
The current machine status is indicated at real time.
"RUN" : This indicates that the machine is running.
"PAUSE" : This indicates that the machine is stopped temporarily.
"WAIT" : This indicates that the machine is in the standby mode.
"STOP" : This indicates that the machine is stopped.
"TEACH" : The machine is performing a teaching operation.
"MOVE" : The machine is being activated (zeroing and manual op-
erations, etc.).
"TEST" : The machine is performing a device test in the "DVC.
TEST" window (submenu).
*6 Supplementary Explanation
Indicated are the "LOGIN" type, the window No., and the current
date & time.
2.2 Structure of Operation Windows
0110-003 2 - 7 AFO01EOPP
2.3 Exiting from Operation Window
(1) To exit from the "AUTO OPN." window or the "MAINT." window, just
press the [Logout] button on the main menu bar. The "Login Type
Selection" window opens.
Fig. 1B5
Whenever an edit window such as the "Pattern Program Data"
window is active, follow the specified steps to close the window
beforehand.
2.3 Exiting from Operation Window
0304-005 2-8 AFO01EOPP
