3. Remedial Procedure from "ERROR" Window
3.1 [EMERGENCY STOP] Switch Pressed
3.1.1 During Automatic Operation
Table 1D3

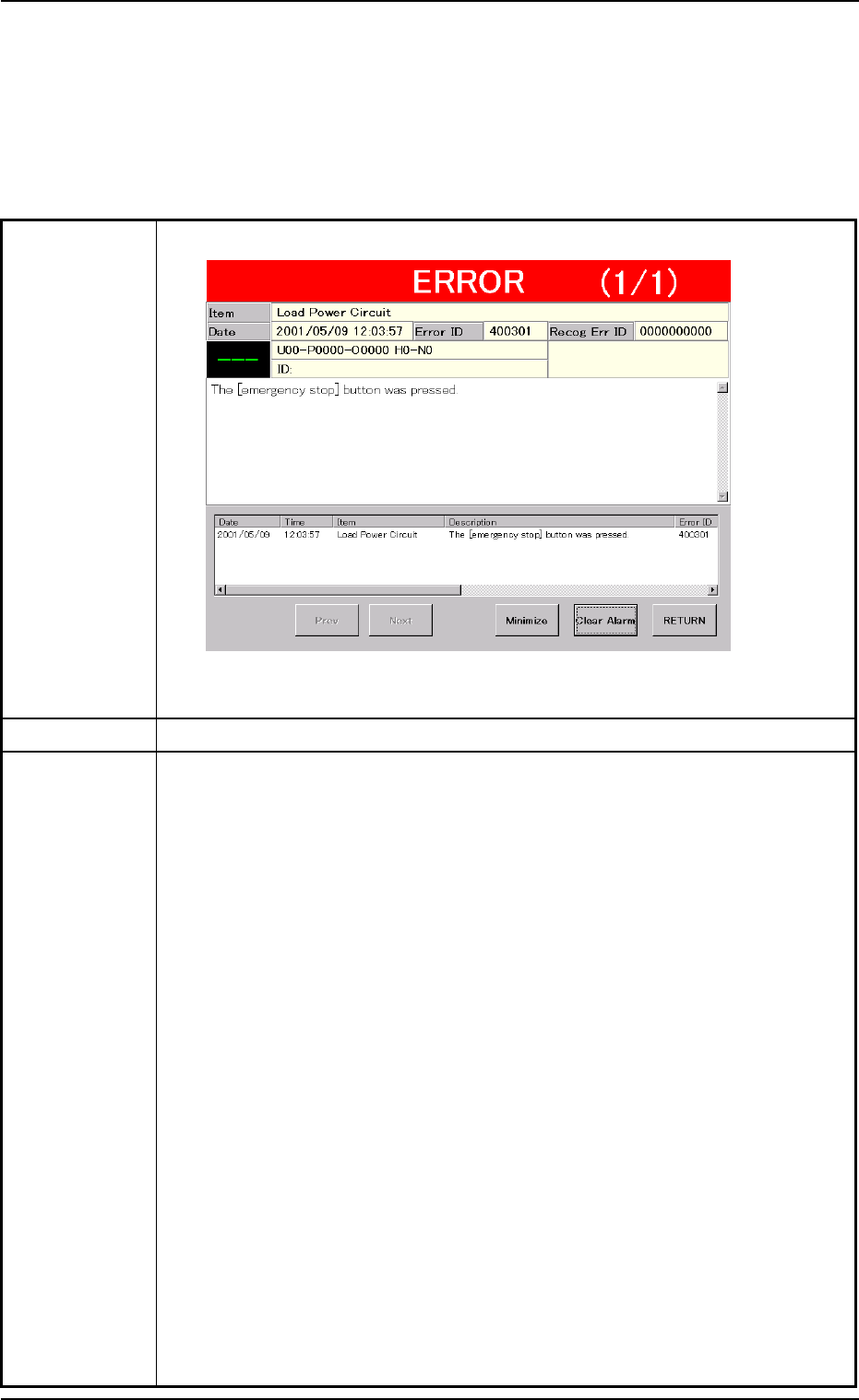

Symptom (1) The [POWER ON] button turns red and the following window opens.
Fig. 1D3
Cause (1) An [EMERGENCY STOP] switch was pressed.
Remedy (1) Press the [RETURN] button.
(2) Check for fallen components and remove them if any.
Check the areas below the vacuum nozzles located between Stations
#12 and #6.
Especially, when a component has fallen on the camera in the component
recognition section (Station #3), be sure to remove it.
(3) Check the tape feeders.
When a component to be picked up still remains in the cavity of a tape,
remove it from the cavity.
(4) Unlock the [EMERGENCY STOP] switch.
(5) Hold down the [POWER ON] button for more than 1 second to re-supply
power to the machine.
• When the LED of the [POWER ON] button turns yellowish green, it
indicates that power is supplied to the machine.
When the LED is kept red, re-check the cause and remove it.
(6) Press the [ALL] button (entitled "ZERO") in the "AUTO OPN." window. In 2
seconds, press the [ENABLE] button on the operation panel to zero all
device.
(7) Check whether or not the P.C.B. in the middle of component placement is
located out of the positioning section or the components are normally placed
(not dispersed).
3. Remedial Procedure from "ERROR" Window
0207-004 4 - 3 AFO01EOPP
Table 1D4
(8) When the message "Warm Start Enable" is displayed in the "Operator
Message" pane in the "AUTO OPN." window, it means that the "Warm
Start" operation is feasible.
(a) "Warm Start Enable" means that the production is interrupted in
the middle of component placement.
(b) When the operation is interrupted without any component being
placed, "Warm Start" becomes impossible.

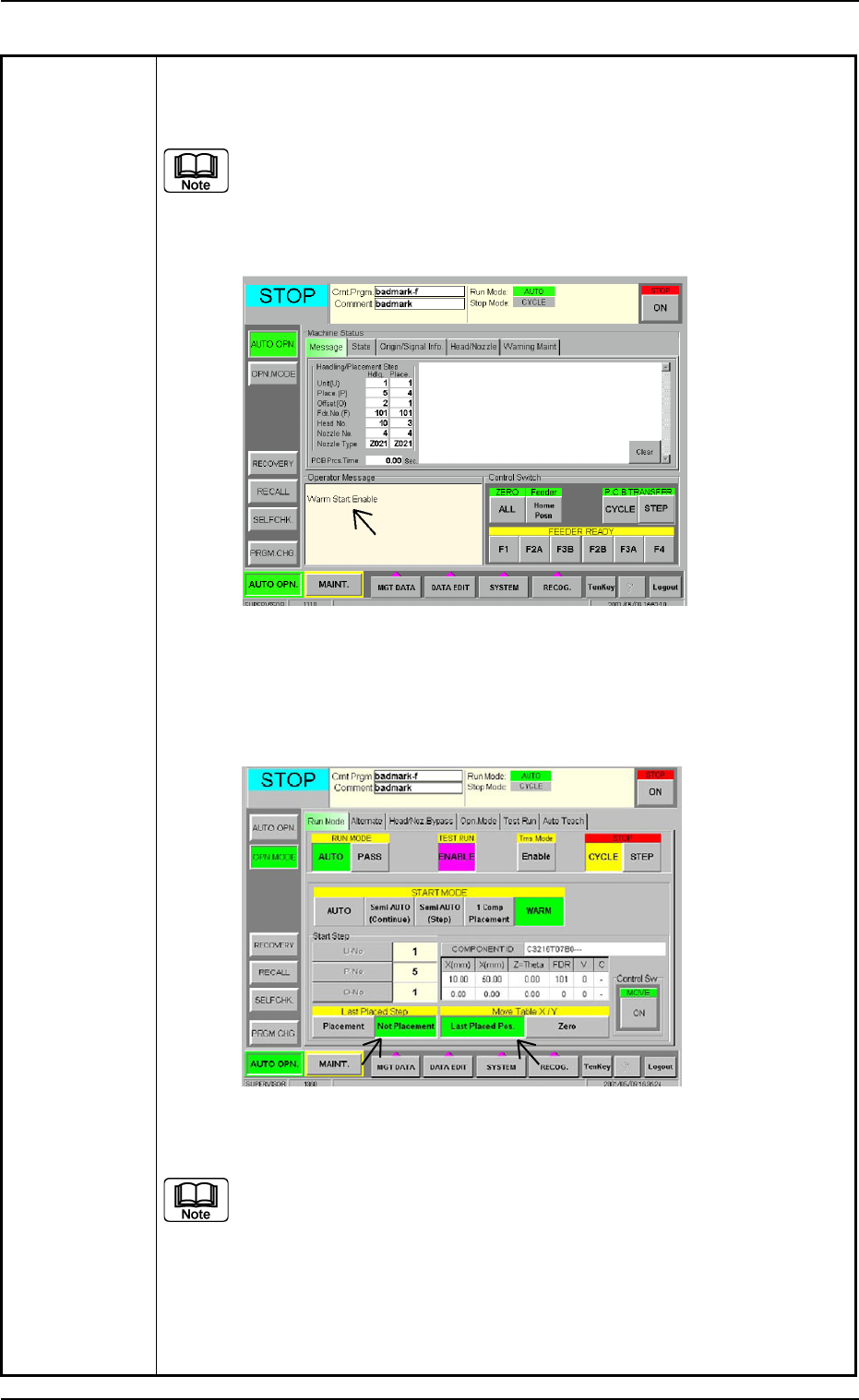

Fig. 1D4 "AUTO OPN." Window (Submenu)
(9) Press the [OPN. MODE] button on the submenu bar. The "OPN. MODE"
window (submenu) opens.
Fig. 1D5 "OPN. MODE" Window (Warm Start Available Mode)
(a) When the "Warm Start" operation is feasible, the [WARM] button
appears in the "OPN. MODE" window (submenu).
(b) When the [WARM] button is not displayed, it means that the "Warm
Start" operation is not feasible or there was a mistake in the re-
medial procedure after an error had occurred. In this case, per-
form the semi-automatic operation (step designation) to reset the
machine to its normal condition.
3.1 [EMERGENCY STOP] Switch Pressed
0301-005 4 - 4 AFO01EOPP
Table 1D5
(10) Check how the last component was placed when the operation was in-
terrupted.
The last placement step is indicated in the "Start Step" group box in
the "OPN. MODE" window (submenu).
Check visually whether or not the relevant component is placed on
the P.C.B.
(11) Press the [Last Placed Pos.] button (entitled "Move Table X/Y") in the
"OPN. MODE" window (submenu).
(12) Press the [RECOG.] button on the main menu bar and make the recog-
nition window (1/4 of the whole view at the upper right corner) appear.
(13) Press the [ON] button (entitled "MOVE"). In two seconds, press the [EN-
ABLE] button on the operation panel.
The last placement position is displayed as a recognition image.
Fig. 1D6 "OPN. MODE" Window (Last Step Confirmation)
(14) Check whether or not the component is placed. If not, select the [Place-
ment] button. If the component is already placed, select the [Not Place-
ment] button.
(15) Press the [Zero] button (entitled "Move Table X/Y") and press the [ON]
button (entitled "MOVE"). In two seconds, press the [ENABLE] button on
the operation panel. The X/Y Table is zeroed.
(16) Press the [START] button on the operation panel. The "Warm Start" op-
eration is implemented.
(17) As for the P.C.B. produced through "Warm Start" operations, be sure to
confirm that all components are correctly placed.
0301-004 4-5 AFO01EOPP
3.1 [EMERGENCY STOP] Switch Pressed
