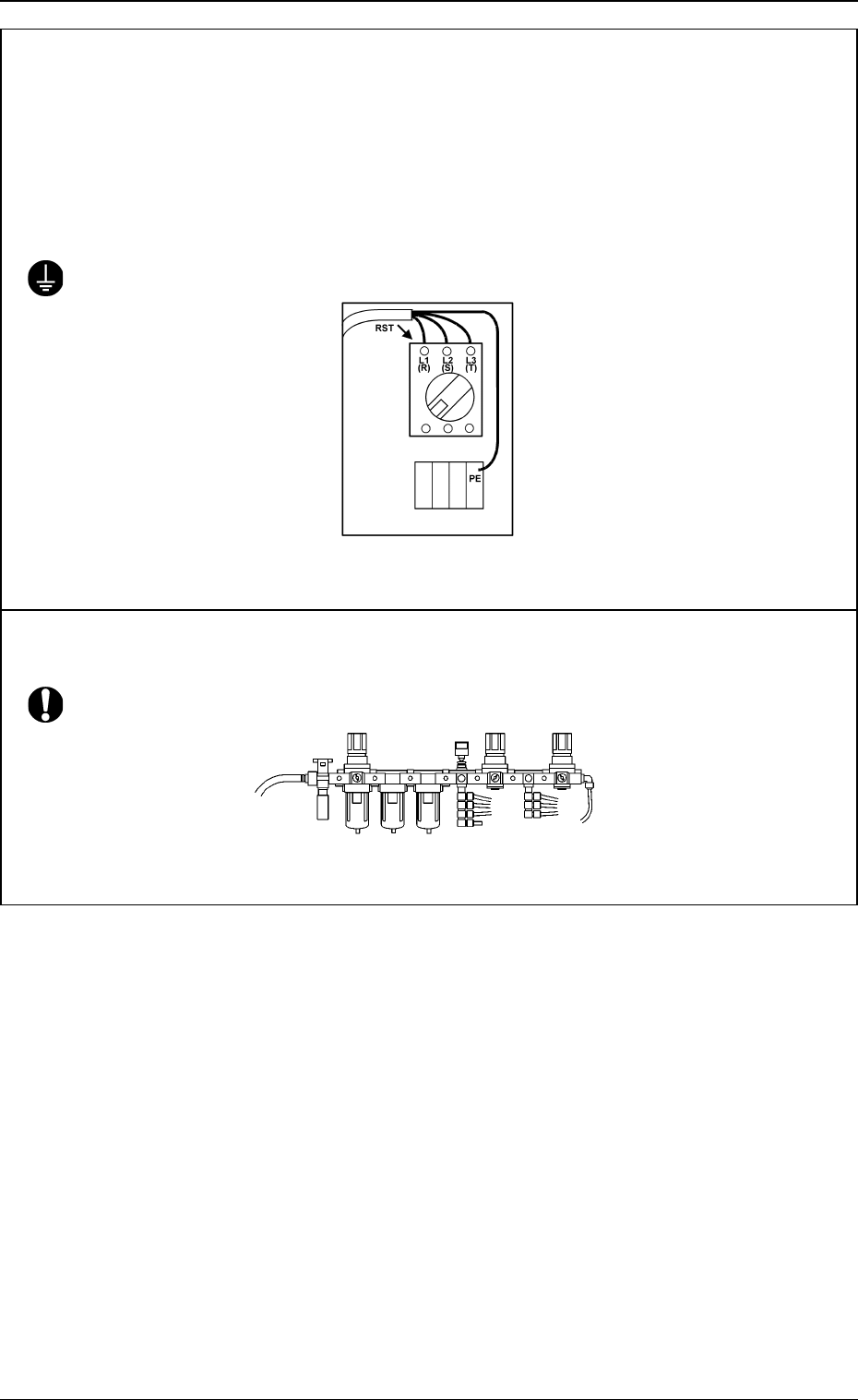

• Primary power supply must be connected to Terminals "L1", "L2", and "L3" and the ground

wire to "PE".

Voltage : 200±20 V AC, 3-Phase

Apparent Power : TCM-X100: Approx. 16 kVA

TCM-X200: Approx. 16 kVA

TCM-X300: Approx. 16 kVA

Note: Make the PE wire longer than the others "L1 through L3 wires", giving some leeway.

Fig. 1X34

• Clean, dry, and non-lubricated air (air containing no moisture, oil, and dust) must be supplied

at an air pressure of 0.45 to 0.69 MPa (4.6 to 7 kgf/cm

Fig. 1X35

2.6 Pre-Installation Checks

0301-004 25 AFO01EOPP

3. About Warning Labels

Please read “3.1 Warning Label Positions" and “3.2 Warning Labels

and Description" carefully to fully understand the meaning of each pre-

cautionary point for safety precautions.

3.1 Warning Label Positions

The warning labels are affixed to hazardous and special attention-re-

quired areas.

Refer to “3.2 Warning Labels and Description" for details.

TCM-X100, TCM-X200, TCM-X300

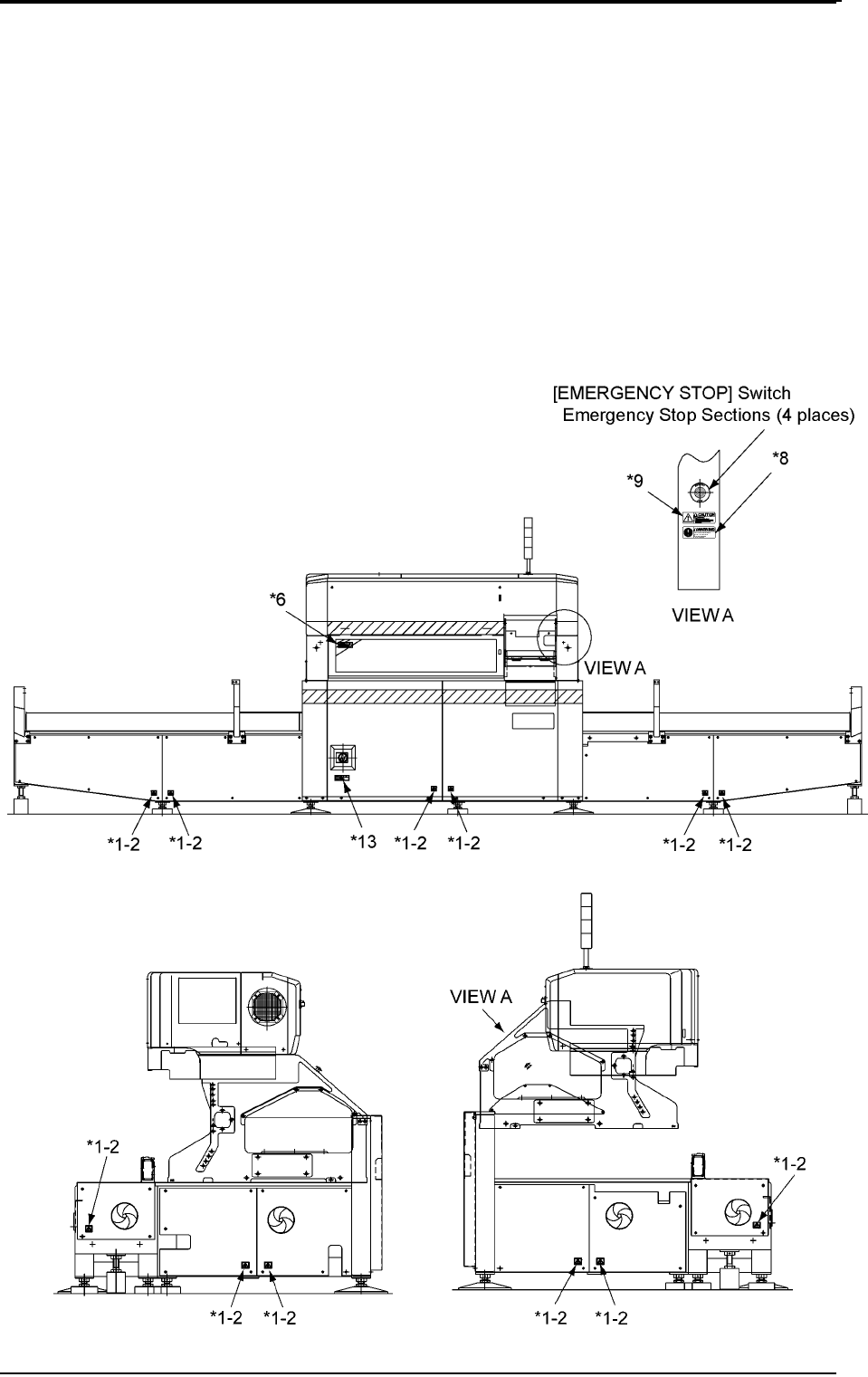

Fig. 1X36 Front View

Fig. 1X37 Left Side View Fig. 1X38 Right Side View

3. About Warning Labels

0304-005 26 AFO01EOPP

3.1 Warning Label Positions

TCM-X100

Fig. 1X39 Rear View (TCM-X100)

Fig. 1X40 Frame Structure (Top View) (TCM-X100)
