1 . 5 Interruption of Automatic Operation 1.5.1 Interruption of Automatic Operation with [CANCEL] Button Interrupt the automatic operation to discontinue the production when a wrong pattern program or P .C.B. is used. (1…

••

• Temporary Stop (Pause) with [ON] Button (entitled "STOP")

When "STEP" is set as "Stop Mode" (*1) and the [ON] button (*2, en-

titled "STOP") is pressed, the automatic operation stops temporarily.

Fig. 1C23-1

When "CYCLE" is set as "Stop Mode" (*1), select the [STEP]

button (entitled "STOP") in the "Run Mode" tab sheet ("OPN.

MODE" submenu window).

1.4.3 Stop Operation by Selection of "Auto Stop Mode"

Stop the input machine.

After all P.C.B.’s on the system line are processed and discharged, the

input machine automatically stops running.

(a) This function works only when "Enable" is set in the "Auto

stop mode" text box of the "P.C.B. Transfer Mode Setup"

tab sheet. (Operation Procedure: [SYSTEM] Button on Main

Menu Bar  [SYS DATA] Button  "Auto Operation" Tab

 "P.C.B. Transfer Mode Setup" Tab Sheet)

(b) When a machine of another brand is connected to the sys-

tem line, this function may not work.

0307-002 3-16-1 AFO01EOPP

*1 *2

STEP

1.4 Temporary Stop and Restart of Automatic Operation

1.5 Interruption of Automatic Operation

1.5.1 Interruption of Automatic Operation with [CANCEL] Button

Interrupt the automatic operation to discontinue the production when a

wrong pattern program or P.C.B. is used.

(1) Press the [STOP] button on the front operation panel.

Fig.1C23-2 "Run Mode" Tab Sheet

(2) When the [CANCEL] button (*1, entitled "CANCEL RUN") is pressed

after the "Run Mode" tab ("OPN. MODE" submenu window), the

automatic operation is interrupted.

To continue the automatic operation after the interruption, refer

to "Step (8)" and the subsequent items in "3.1 [EMERGENCY

STOP] Switch Pressed" in "Section 4" for details.

0301-005 3-17 AFO01EOPP

1.5 Interruption of Automatic Operation

1.5.2 Interruption with [EMERGENCY STOP] Switch

Use the [EMERGENCY STOP] switch to immediately stop the machine

in an emergency.

An error alarm is issued and the LED of the [POWER ON] button illumi-

nates in red.

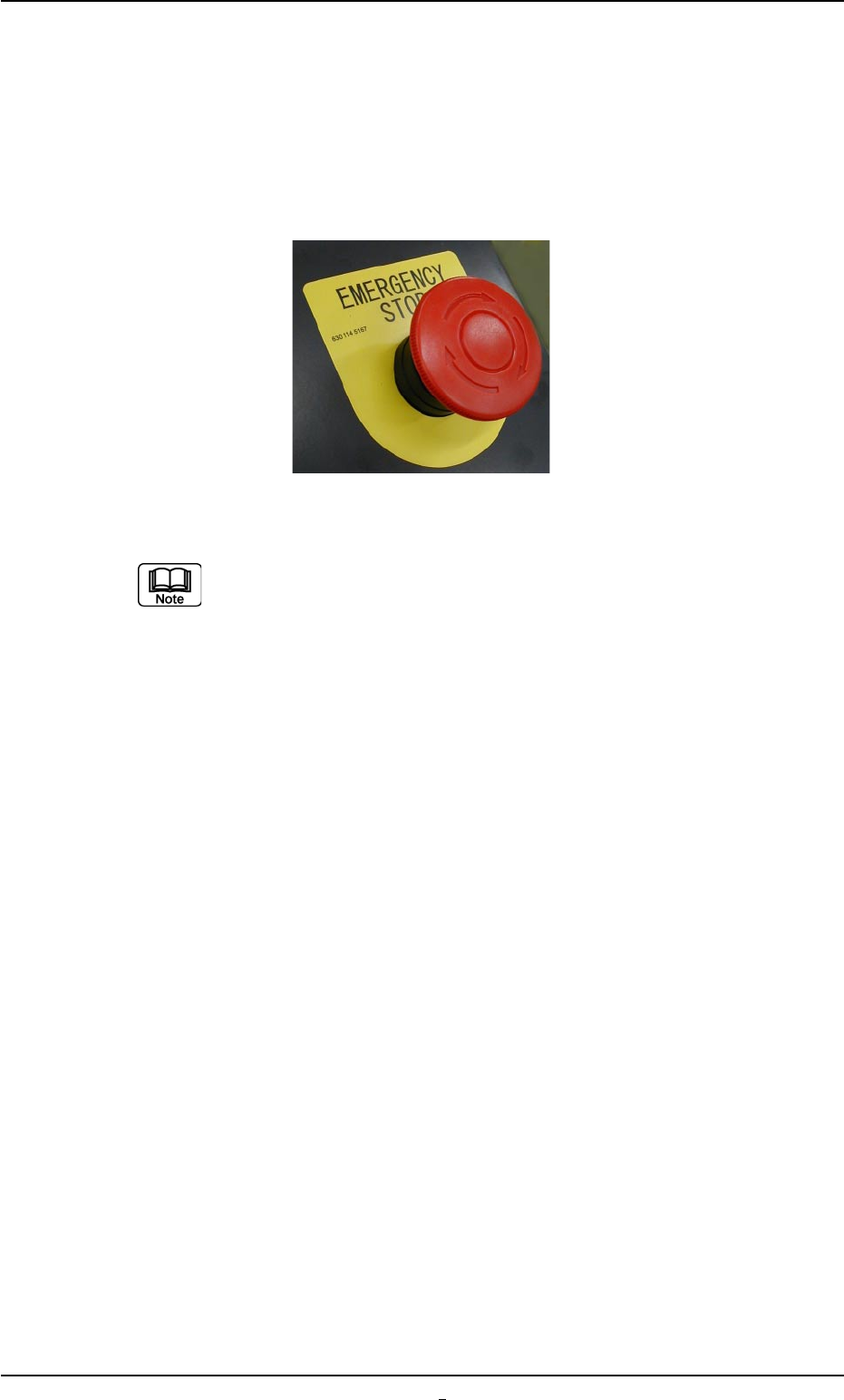

Fig. 1C24

Refer to "Section 4 Remedy of Simple Trouble" in "Volume 1"

for the procedures to reset the machine to the normal condition

from an emergency stop.

1.5 Interruption of Automatic Operation

0301-003 3-17-1 AFO01EOPP
