Switch Name Countermeasures (a) When the lamp of the [READY] button is "OFF", the [Work Area Safety Door] switch is released, making it possible to supply components. Confirm that the lamp of the [FEEDER READY]…

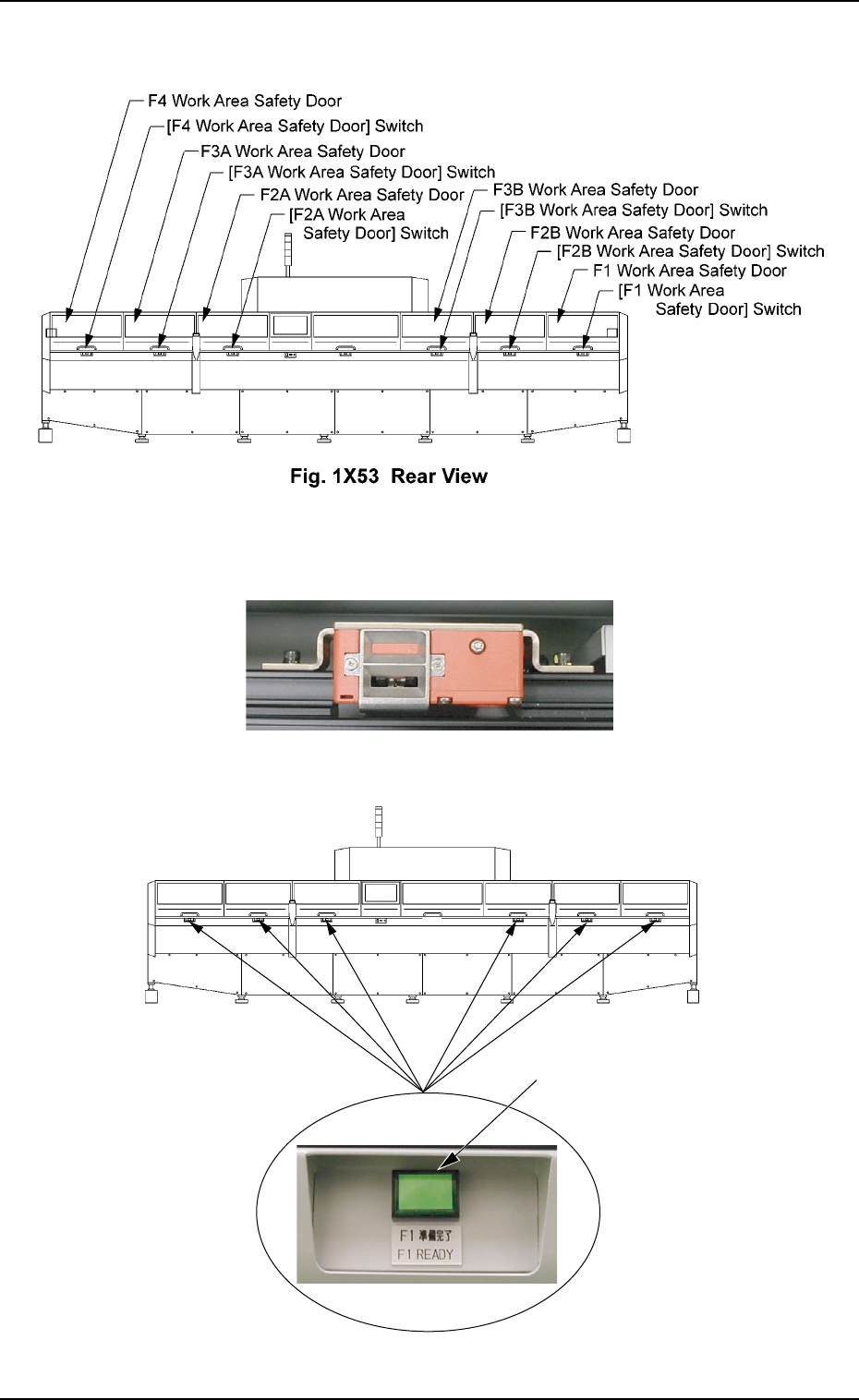

4.1.3 [Feeder Work Area Safety Door] Switches

Each feeder work area safety door is provided with a [Feeder Work

Area Safety Door] switch inside as shown below.

Fig. 1X55

Fig. 1X54 [Feeder Work Area Safety Door] Switches

[FEEDER READY] Buttons

4.1 Safety Switches

0210-004 44 AFO01EOPP

Switch Name Countermeasures

(a) When the lamp of the [READY] button is "OFF", the [Work

Area Safety Door] switch is released, making it possible to

supply components.

Confirm that the lamp of the [FEEDER READY] button is

"OFF" and then open the safety door.

(b) When the machine is in the emergency stop mode (load

power shut off), the lamp of the [READY] button extin-

guishes and the electromagnetic lock of the work area

safety door is released exceptionally although the feeder

carriage is not located in the work area.

4.1 Safety Switches

[F1 Work Area Safety Door] Switch

[F2A Work Area Safety Door] Switch

[F3B Work Area Safety Door] Switch

[F2B Work Area Safety Door] Switch

[F3A Work Area Safety Door] Switch

[F4 Work Area Safety Door] Switch

Table 1X8

• When the feeder carriage is located in the

work area and the work area safety door in

the work area is opened, the power to drive

the feeder carriage is shut off.

Ref.: The lamp of the [READY] button ex-

tinguishes.

• When the feeder carriage is not located in

the work area, the [Work Area Safety Door]

switch in the work area is activated, pre-

venting the safety door from being opened.

Ref.:The lamp of the [READY] button

illuminates.

Should the safety door opens at this

time, the power to drive the feeder car-

riages (F1 through F4) is shut off.

• While the work area safety door is kept

open, the feeder carriage is prohibited from

any movement such as zeroing and manual

alignment operations, etc.

0301-003 45 AFO01EOPP

4.1.4 [FEEDER CARRIAGE COVER] Safety Switch

Fig. 1X56 Rear View

The [FEEDER CARRIAGE COVER] safety switch is mounted inside

the cover as shown below.

Switch Name Countermeasures

4.1 Safety Switches

Fig. 1X56-1

Table 1X9

[FEEDER CARRIAGE COVER] Safety

Switch

• The power for operations cannot be sup-

plied with the feeder carriage cover being

open.

0210-002 46 AFO01EOPP
