*10 Pointing Device Fig. 1A13 This device is used to indicate where the pointer is on the operation screen. Basic Operations of Pointing Device • Pointer T o point to an object on the operation screen, move the pointer w…
2.3 Operational Measures
0307-001 1-15-2 AFO01EOPP
• Storage Procedure
(1) Hold the B-marked area and turn it in the D-marked arrow direction
until it clicks.
Note: Be sure to turn it until it clicks. Otherwise, the keyboard will
be damaged when stored.
(2) Press the E-marked two buttons at the same time.
(3) Push down the F-marked area.
Fig. 1A12-2
B
D
E
F

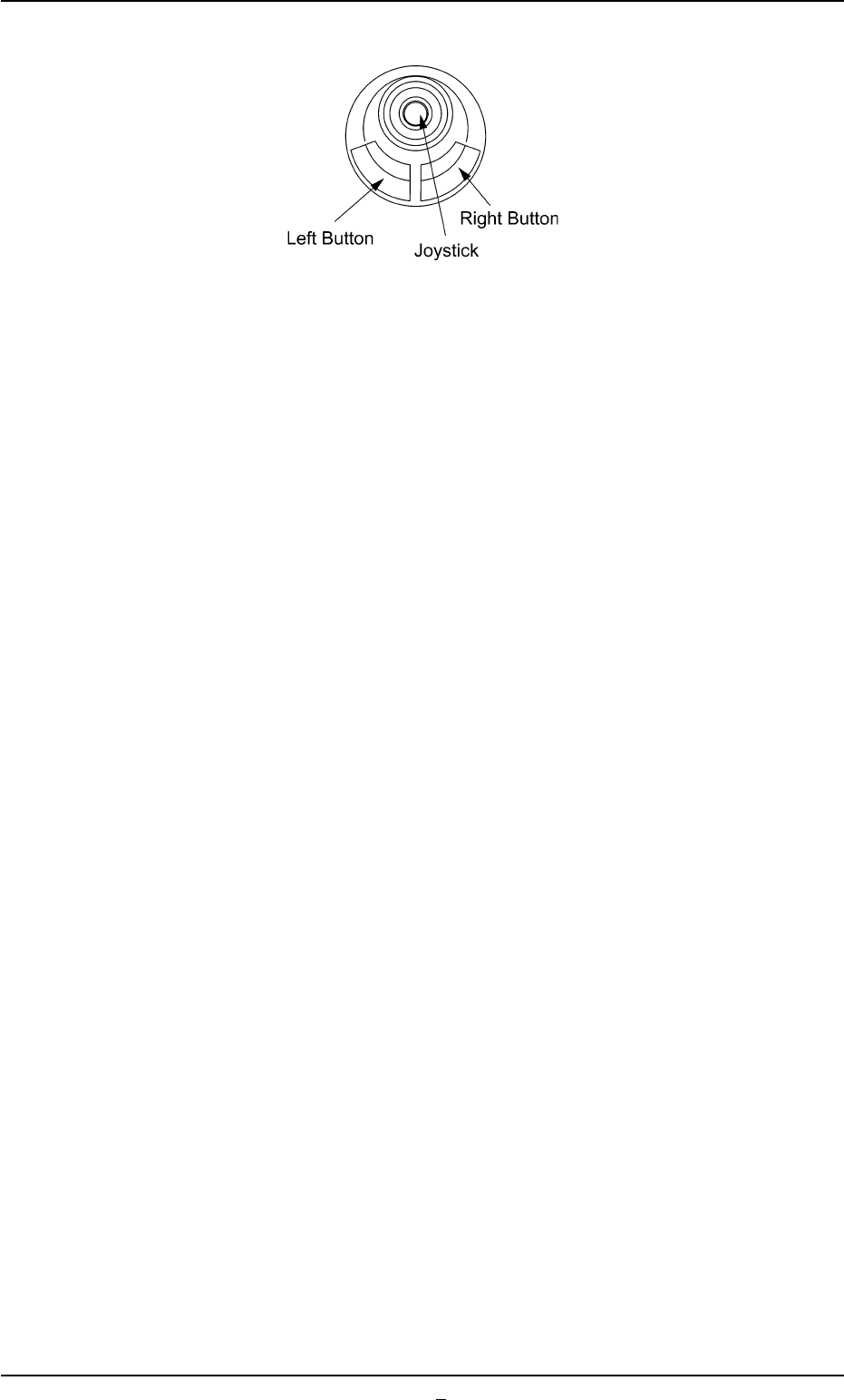

*10 Pointing Device
Fig. 1A13
This device is used to indicate where the pointer is on the operation
screen.
Basic Operations of Pointing Device
• Pointer
To point to an object on the operation screen, move the pointer with
the joy stick.
• Click
To click, point the pointer at the object you want to select, and quickly
press and release the left button.
Quickly pressing and releasing the right button is called "Right-Click".
• Double-Click
To press the left button twice in rapid succession while keeping the
pointer motionless between clicks.
• Drag
To move an object on the screen from one place to another by point-
ing to it, holding the left button down, and pulling it to where you want
it to be, using the joy stick. When the pointer has dragged the object
to the desired position, release the left button.
2.3 Operational Measures
0307-001 1-15-3 AFO01EOPP
Front Touch Screen

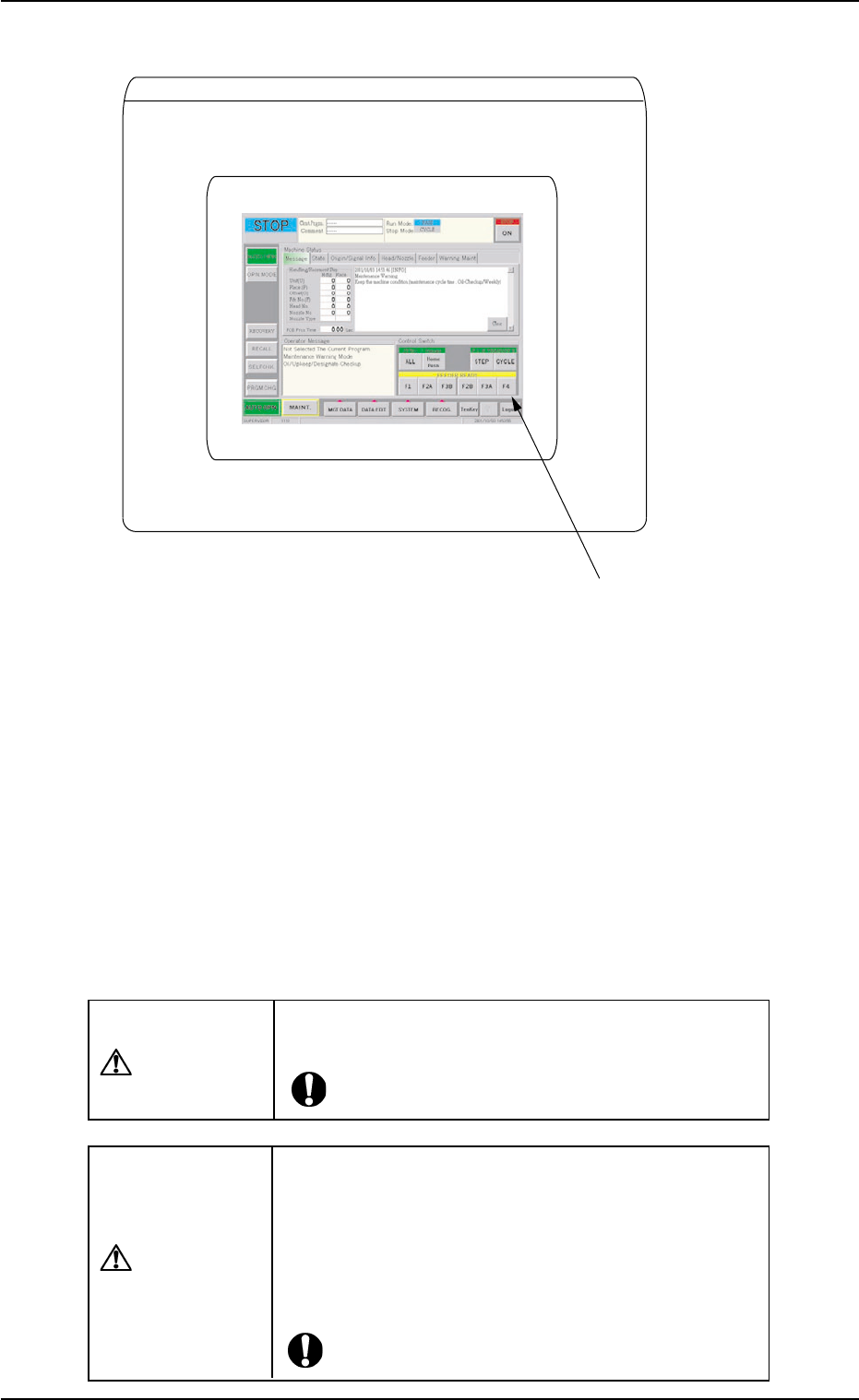

*11 Front Touch Screen
Fig. 1A14
The operation windows will be displayed on the front touch screen.
Various types of operations become available by touching the operation
buttons and tabs on the screen.
Since the touch screen uses the molecules in liquid crystals, handle it
like glass.
Do not apply strong pressure to the touch screen. Try not to touch the
screen except for input operations.
The touch-sensitive regions of the touch screen reacts to a force of
0.78 Ncm
2
(approx. 80 gf/cm
2
) or less.
Do not press the screen with an excessive force.
CAUTION
The surface of the touch screen is fragile. Do not rub
the surface or touch it with a pen, a screwdriver, etc.
CAUTION
The machine is not a water-proof and encapsulated
type.
Avoid dust, water droplet, oil droplet, and metal pieces.
Especially, when metal pieces or combustible mate-
rial is mixed into the machine, it may lead to fire igni-
tion.
2.3 Operational Measures
