No . W arning Labels and Description *26 Description • Install the feeders correctly . Otherwise, the machine and feeders may breakdown. T able 1X5-3 3.2 Warning Labels and Description 0301-001 41-1 AFO01EOPP
Table 1X5-2
0301-006 41 AFO01EOPP
No. Warning Labels and Description
*23
Description
• This power outlet must be used exclusively for recognition lighting.
Be sure not to use it for other purposes. Otherwise, the machine will breakdown.
*24
Description
• This power outlet must be used exclusively for maintenance work.
Be sure not to use it for other purposes. Otherwise, the machine will breakdown.
*25
Description
• Do not put any feeder sideways nor tools on the feeder carriages. Otherwise, the ma-
chine will breakdown.
3.2 Warning Labels and Description
No. Warning Labels and Description
*26
Description
• Install the feeders correctly. Otherwise, the machine and feeders may breakdown.
Table 1X5-3
3.2 Warning Labels and Description
0301-001 41-1 AFO01EOPP
4. Safety-Related Functions
4. Safety-Related Functions
This session describes the safety switches and module protection sen-
sors.
4.1 Safety Switches
When an error is detected in the machine, the safety switches are de-
signed to stop the dangerous moving mechanisms of the machine. Ev-
erything is processed on the machine side (hardware) without using
any software application on the computer side.
4.1.1 [EMERGENCY STOP] Switches
Press one of the [EMERGENCY STOP] switches to immediately stop
the machine in an emergency. The power is turned off and the machine
stops immediately.

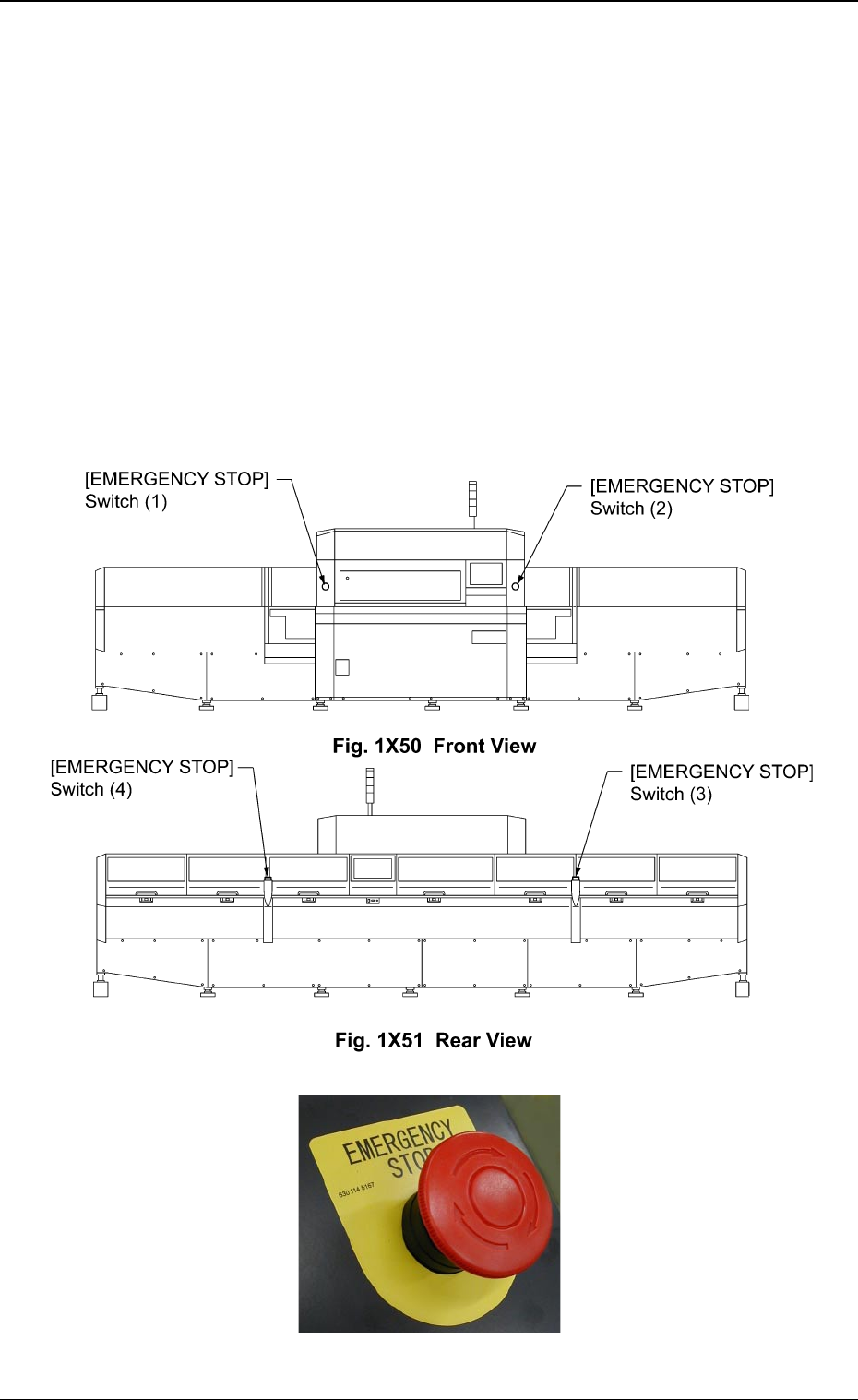

Fig. 1X51-1 [EMERGENCY STOP] Switch
