1 . 4 T emporary Stop and Restart of Automatic Opera- tion 1.4.1 Replenishment of Components and P .C.B.’ s There will be two cases of component replenishment during automatic operation - Component Replenishment with Mac…
(5) Press the [Origin/Signal Info.] tab in the "AUTO OPN." submenu
window. The "Origin/Signal Info." tab sheet opens. Check the origin
marks.
Fig. 1C20
(6) When the [START] button on the front operation panel is pressed
while the lamp is flickering, the automatic operation (placement)
starts.
Fig. 1C21
When the automatic operation (component placement) starts, all origin
marks disappear and the LED (green) of the [START] button on the front
operation panel and the green lamp of the light tower illuminate.
(a) The automatic operation cannot be started unless the
"AUTO OPN." window is active.
(b) When a P.C.B. already exists in the P.C.B. positioning sec-
tion, the machine discharges the P.C.B. without placing
any component on the P.C.B.
1.3 Start of Automatic Operation
0307-006 3-12 AFO01EOPP
219'410
5612
56#46 '0#$.'
4705'672
12'4#6+10
.1%-
20.%*#0)'
1.4 Temporary Stop and Restart of Automatic Opera-
tion
1.4.1 Replenishment of Components and P.C.B.’s
There will be two cases of component replenishment during automatic
operation - Component Replenishment with Machine in Short of Com-
ponents and Intentional Component Replenishment.
Correct countermeasures are also required when the machine is short
of P.C.B.’s.
••
••
• Component Shortage Mode
When a component shortage error occurs during automatic opera-
tion, an error alarm is issued and the machine stops.
In this case, follow the steps below to replenish components and re-
start the automatic operation.
(1) Press the [RESET] button to cancel the error alarm.
(2) Open the feeder work area safety door and detach the tape feeder.
(3) Install the tape feeder loaded with components.
Refer to the instruction manual of the tape feeders for attach-
ment and detachment of the tape feeders.
CAUTION
The tape feeders should be seated securely. Other-
wise, they may collide with the feeder installation er-
ror detection sensors or pick-up errors will occur.
(4) After the replacement of the tape feeder, close the feeder work area
safety door and press the [READY] button on the pertinent side.
Confirm that the "AUTO OPN." window is active on the touch screen
and press the [START] button. The automatic operation re-starts.
1.4 Temporary Stop and Restart of Automatic Operation
0110-003 3- 13 AFO01EOPP
••
••
• Intentional Component Replenishment during Automatic
Operation
(1) Press the [STOP] button on the front operation panel to stop the
machine temporarily.

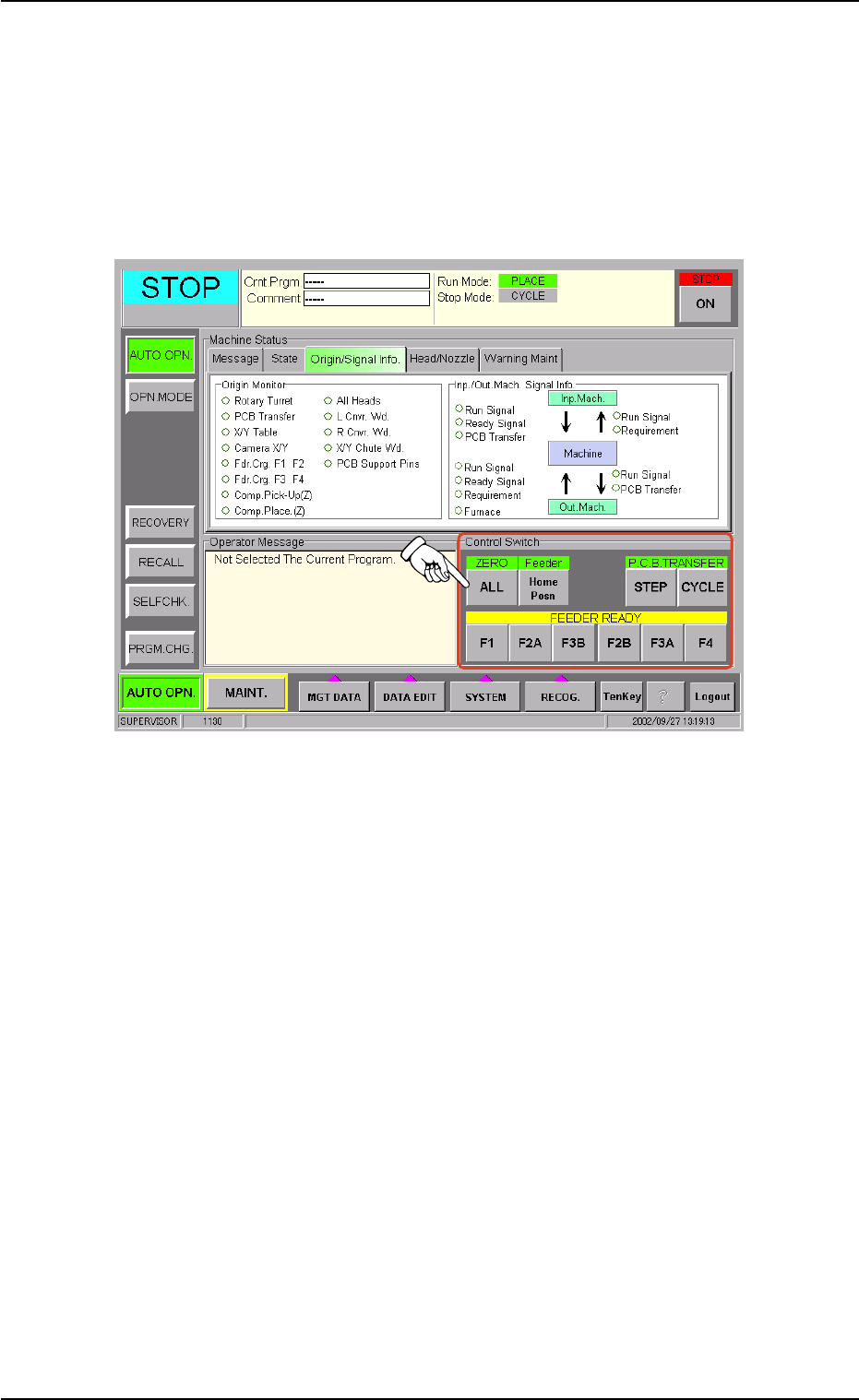

(2) Press the [ALL] button (entitled "ZERO") in the "Control Switch" group
box of the "AUTO OPN." window (submenu) to zero the devices.
Fig. 1C22
(3) Open the feeder work area safety door and detach the tape feeder
in component shortage.
(4) Load the tape feeder with new components and install it on the feeder
carriage.
(5) Press one of the buttons (entitled "FEEDER READY") related to the
pertinent tape feeder in the "Control Switch" group box in the "AUTO
OPN." submenu window.
(6) Close the feeder work area safety door and press the [READY] and
[START] buttons. The automatic operation re-starts.
0210-005 3-14 AFO01EOPP
1.4 Temporary Stop and Restart of Automatic Operation
