2.3.7 Ethernet LAN
Data can be exchanged between the network terminal (option) and the
machine in the Ethernet LAN system.

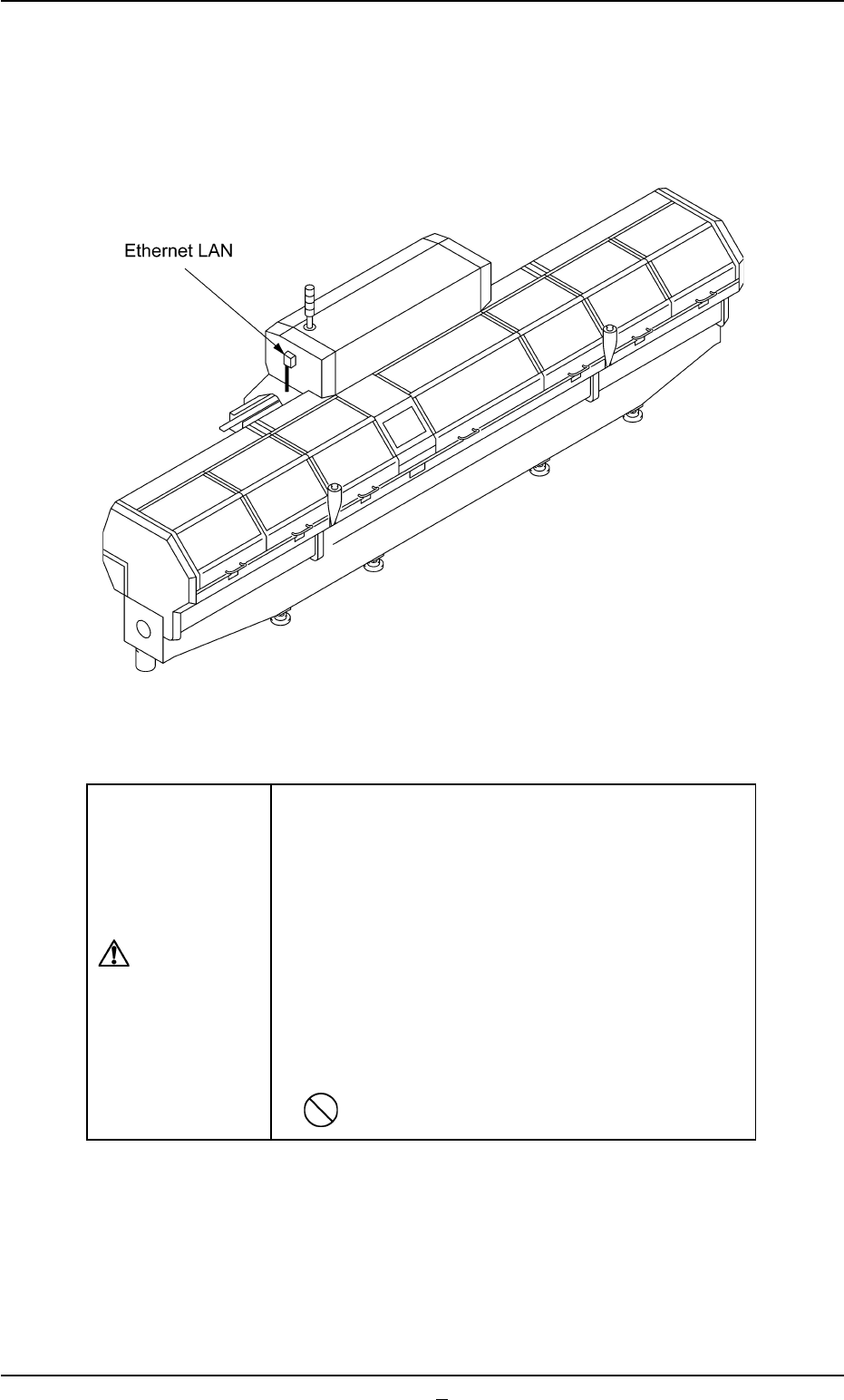

Fig. 1A17-1
0207-001 1-21-2 AFO01EOPP
2.3 Operational Measures
CAUTION
• Do not exchange data through Ethernet cabling
(Local Area Network) between the system and
a computer that is not provided with any viral
strategies.
Otherwise, viruses might enter the network, caus-
ing the machine to malfunction.
• Isolate the system without using Ethernet ca-
bling (Local Area Network) except for the speci-
fied functional operations.
Otherwise, the machine will break down.
2.4 Main Units
2.4.1 Feeder Carriages

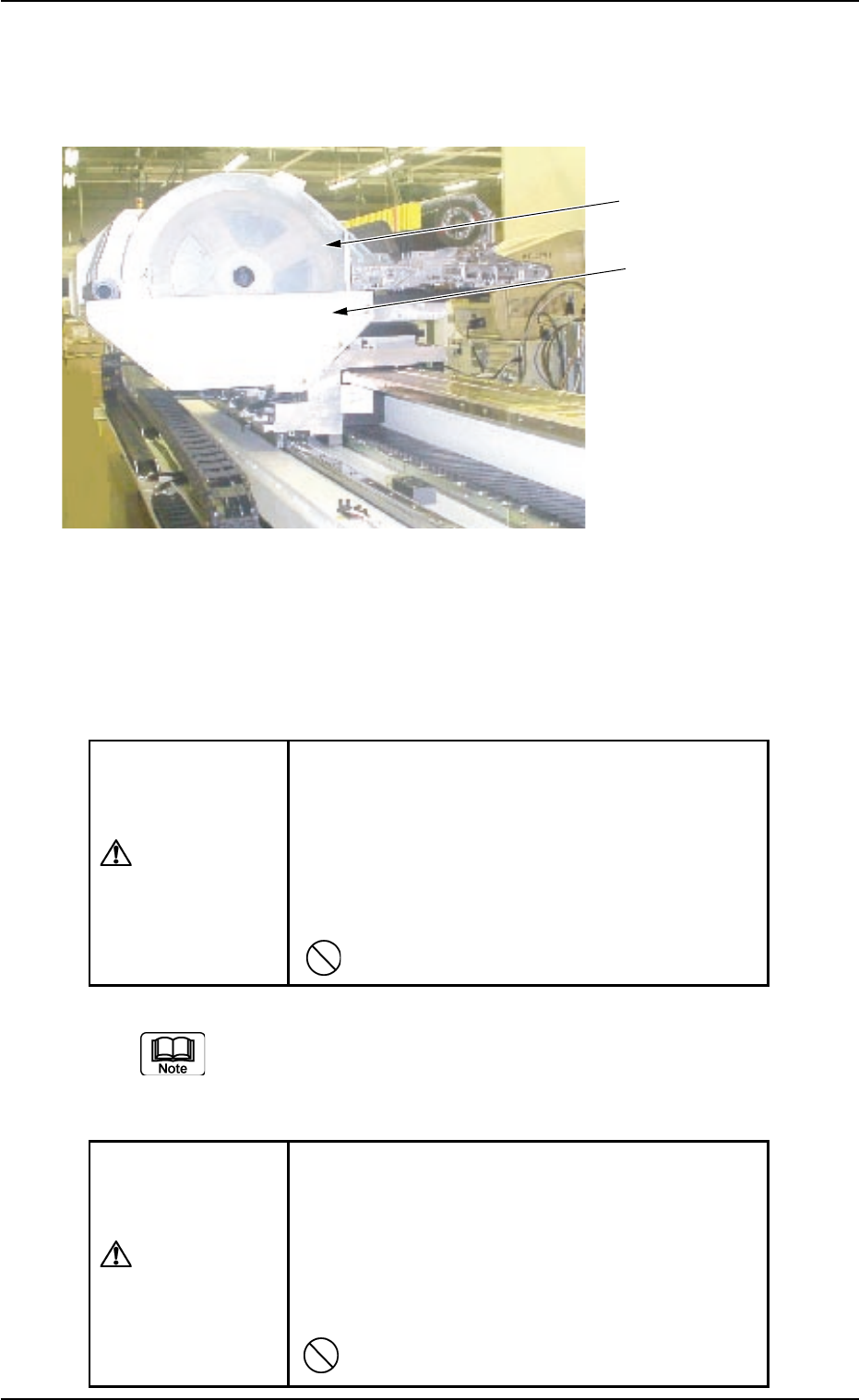

Fig. 1A18
The carriages carry feeders for component supply.
The tape or bulk feeders can be installed on the feeder carriages. The
carriages move right and left to supply components.
WARNING
Never operate the machine with the feeder carriage
covers being open.
The feeder carriages are moved at high speed by
means of a strong motor.
It is very dangerous for a person or a thing to come
in contact with the moving section.
Components should be loaded on the tape or bulk feeders.
Refer to the instruction manual of the tape or the bulk feeders
for details.
WARNING
Those who wear an implanted pacemaker are not
allowed to work inside the carriage covers.
Strong magnets are used in the feeder carriage sec-
tions.
Therefore, the pacemaker may be affected by mag-
netism.
2.4 Main Units
Feeder
Feeder Carriage
0110-003 1-22 AFO01EOPP
2.4.2 L and R Conveyor Sections

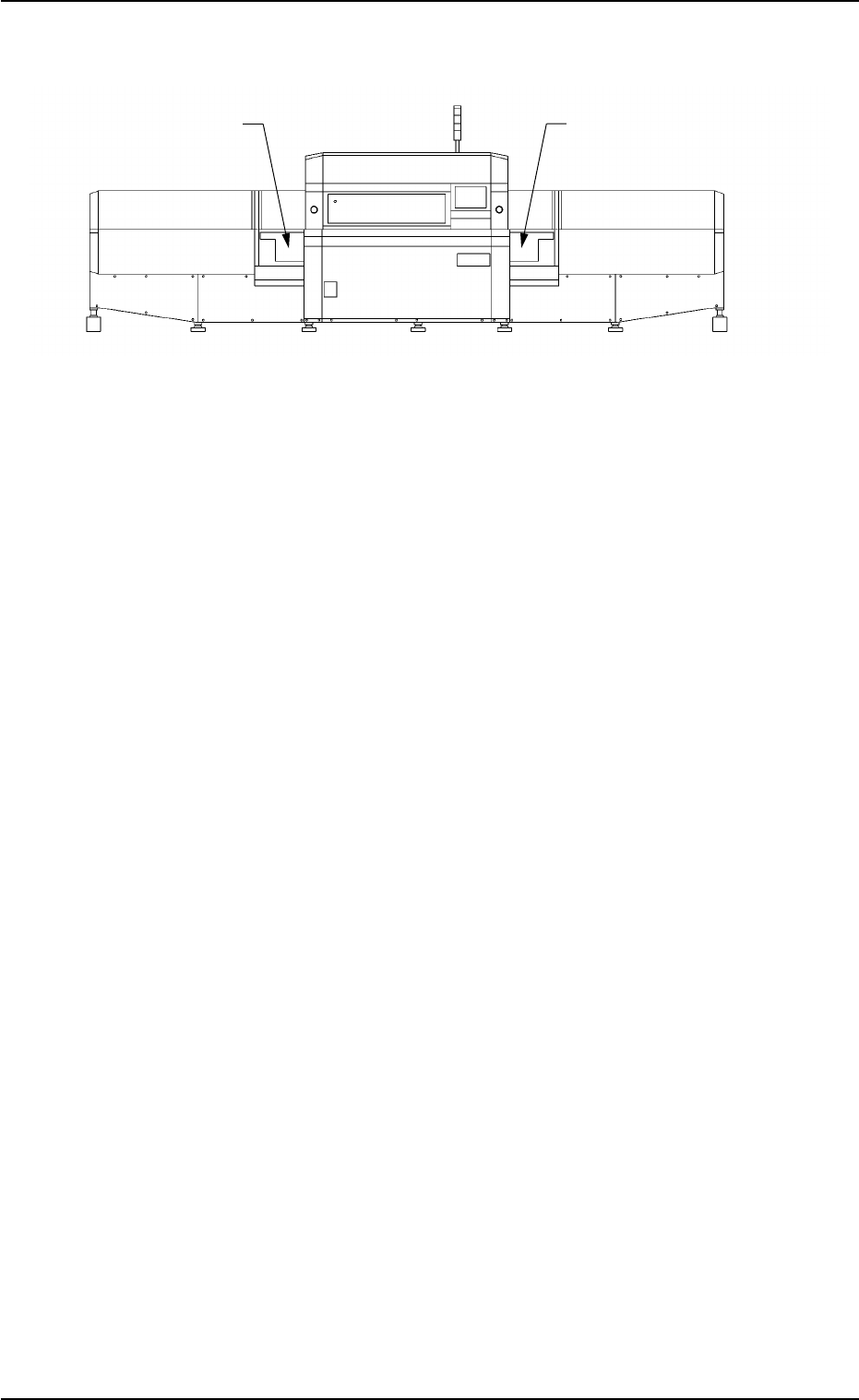

Fig. 1A19
These conveyors are used to receive a P.C.B. from the input machine
and transfer it to the place right before the X/Y table or carry the compo-
nent-placed P.C.B. to the output machine.
When the P.C.B. flow direction is "L R" (P.C.B. flow from left to right),
the L conveyor receives a P.C.B. from the input machine and transfers
it to the place right before the X/Y table.
The R conveyor receives the component-placed P.C.B. from the X/Y
table and transfers it to the output machine.
When the P.C.B. flow direction is "R L" (P.C.B. flow from right to left),
the R conveyor receives a P.C.B. from the input machine and transfers
it to the place right before the X/Y table.
The L conveyor receives the component-placed P.C.B. from the X/Y
table and transfers it to the output machine.
L Conveyor
R Conveyor
2.4 Main Units
0102-002 1-23 AFO01EOPP
