1. Basic Operations

0207-003 2 - 1 AFO01EOPP

1. Basic Operations

1.1 Selection of Front or Rear Operation Panel

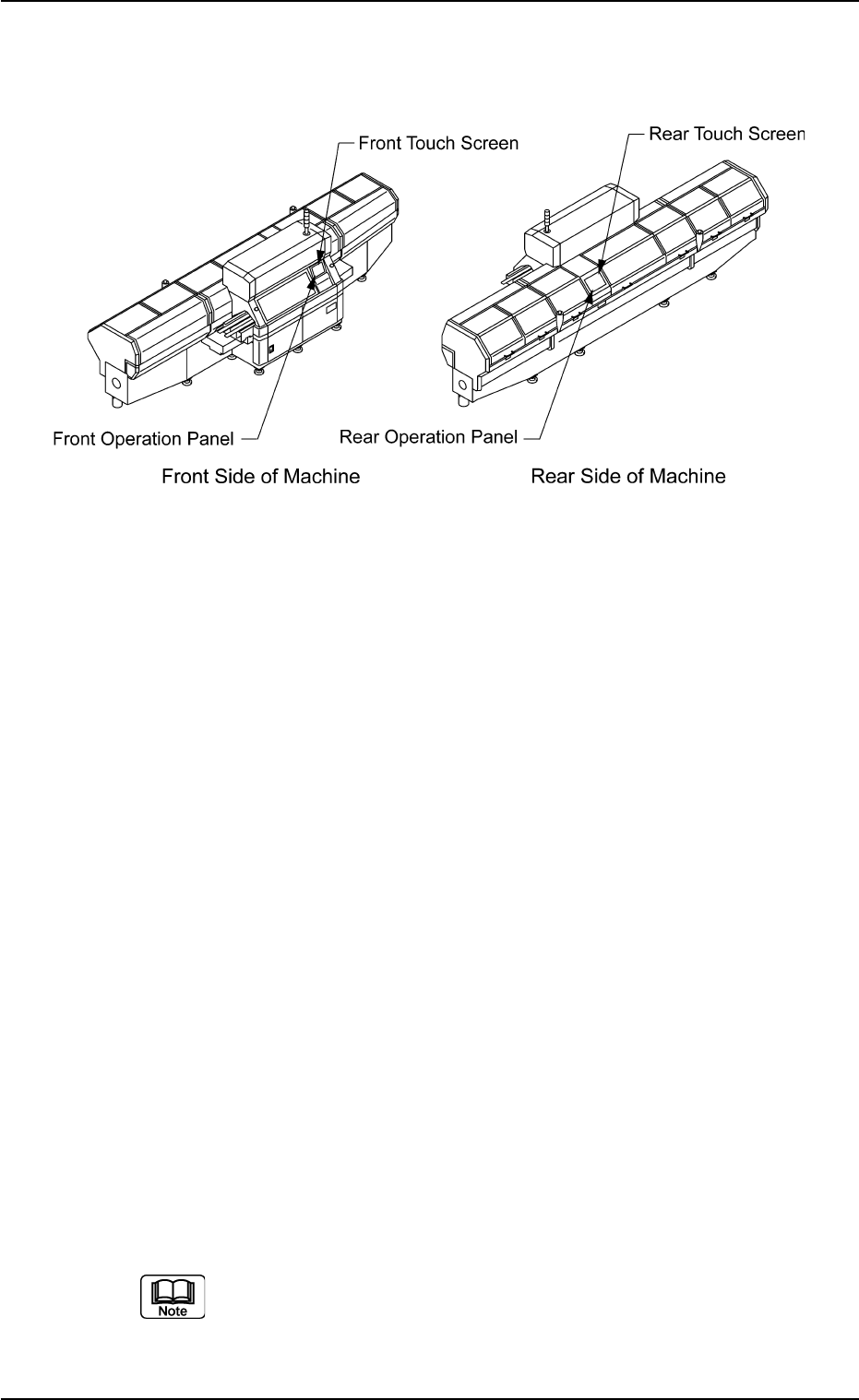

Fig. 1B1

The machine is equipped with operation panels on both front and rear

sides. Each operation panel has a touch screen and some switches

and buttons required to operate the machine.

One of the operation panels is always available (valid) in operations and

the other one can be selected with the [PNL CHANGE] button. It is im-

possible to activate both operation panels at the same time.

• When the [PNL CHANGE] button on the selected operation panel is

pressed, the LED of the button illuminates, indicating that the opera-

tion panel is set available in operations.

• When the [PNL CHANGE] button is pressed with the button being

illuminated, the [LOCK] lamp illuminates, indicating that only the panel

is available in operations (Operation Locked).

• To cancel "LOCK" mode on the selected operation panel, press the

[PNL CHANGE] button located on the panel again.

When the "LOCK" mode is canceled, the "LOCK" lamp extinguishes.

• The other operation panel can be selected by pressing the [PNL

CHANGE] button on the unavailable (invalid) side only when the cur-

rently selected panel is not set in the "Operation Locked" mode.

Either one of the operation panels can be selected regardless of the

operation mode (Ex. "RUN" or "PAUSE" mode) of the machine.

(a) When the machine is powered, the front operation panel

is activated (available).

(b) The pointing device and the keyboard can be used only for

operations on the front operation panel.

1.2 Touch Screens

1.2.1 Operation Windows

Various operation windows appear on the touch screen for parameter

settings (data input).

Basically, operations become available by touching the buttons in a win-

dow.

To enter alphanumeric characters, open the ten-key pad or the keyboard

by pressing the pertinent key in an operation window and press the de-

sired keys on the ten-key pad or the keyboard.

(a) The front operation panel is equipped with a keyboard and

a pointing device.

The keyboard and the pointing device can be used to work

with operation windows.

(b) The pattern program and component library data can be

edited in the edit windows, using the keyboard and the

pointing device.
