2 .2 Safety Devices 2.2.1 [EMERGENCY STOP] Switches Fig. 1A4 Use the [EMERGENCY STOP] switches to immediately stop the ma- chine in an emergency . When an [EMERGENCY STOP] switch is pressed, the power is turned off and t…

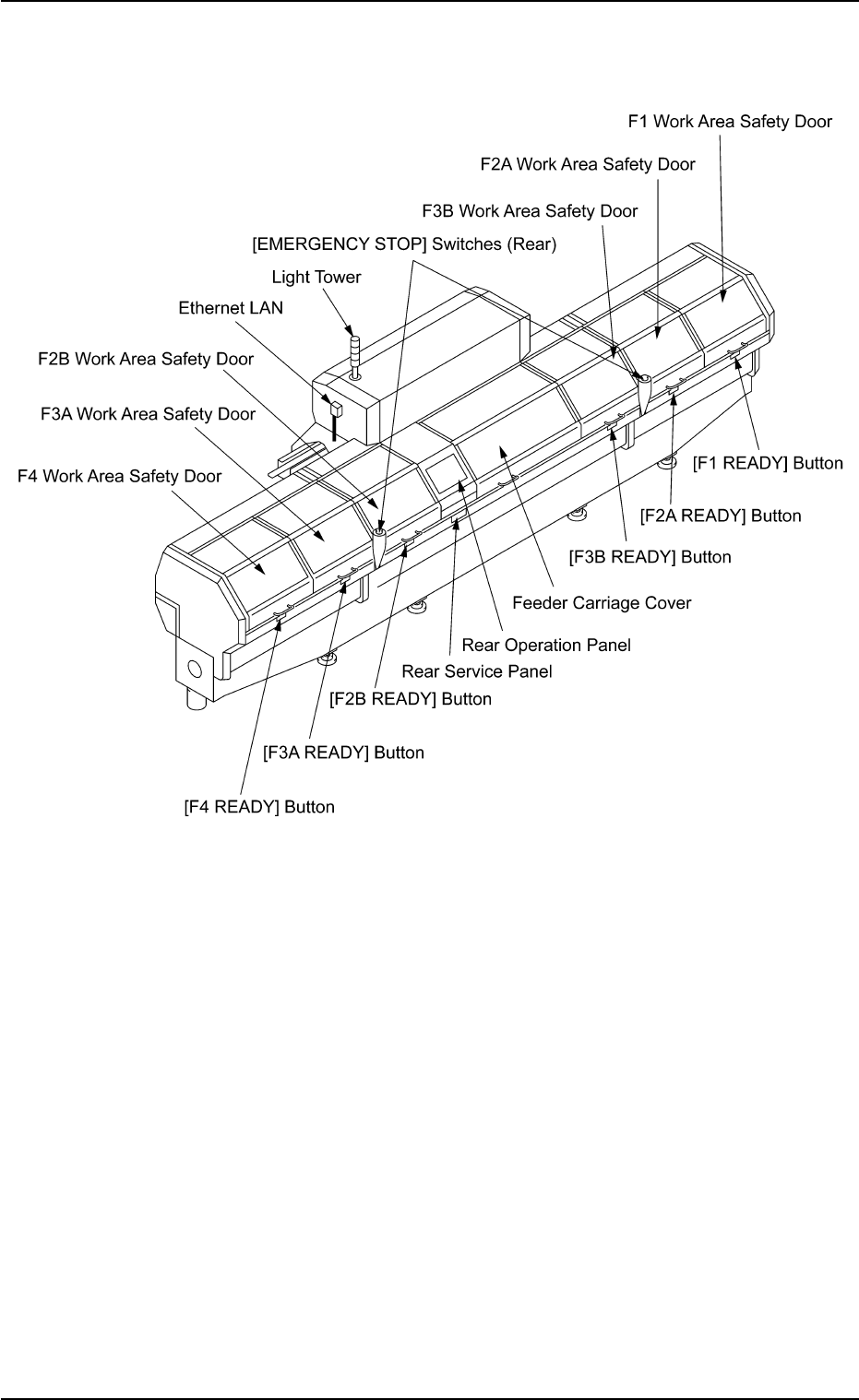

2.1.2 Rear Side of Machine

Fig. 1A3 Rear Side of Machine

2.1 General View

01 10-003 1-3 AFO01EOPP

2.2 Safety Devices

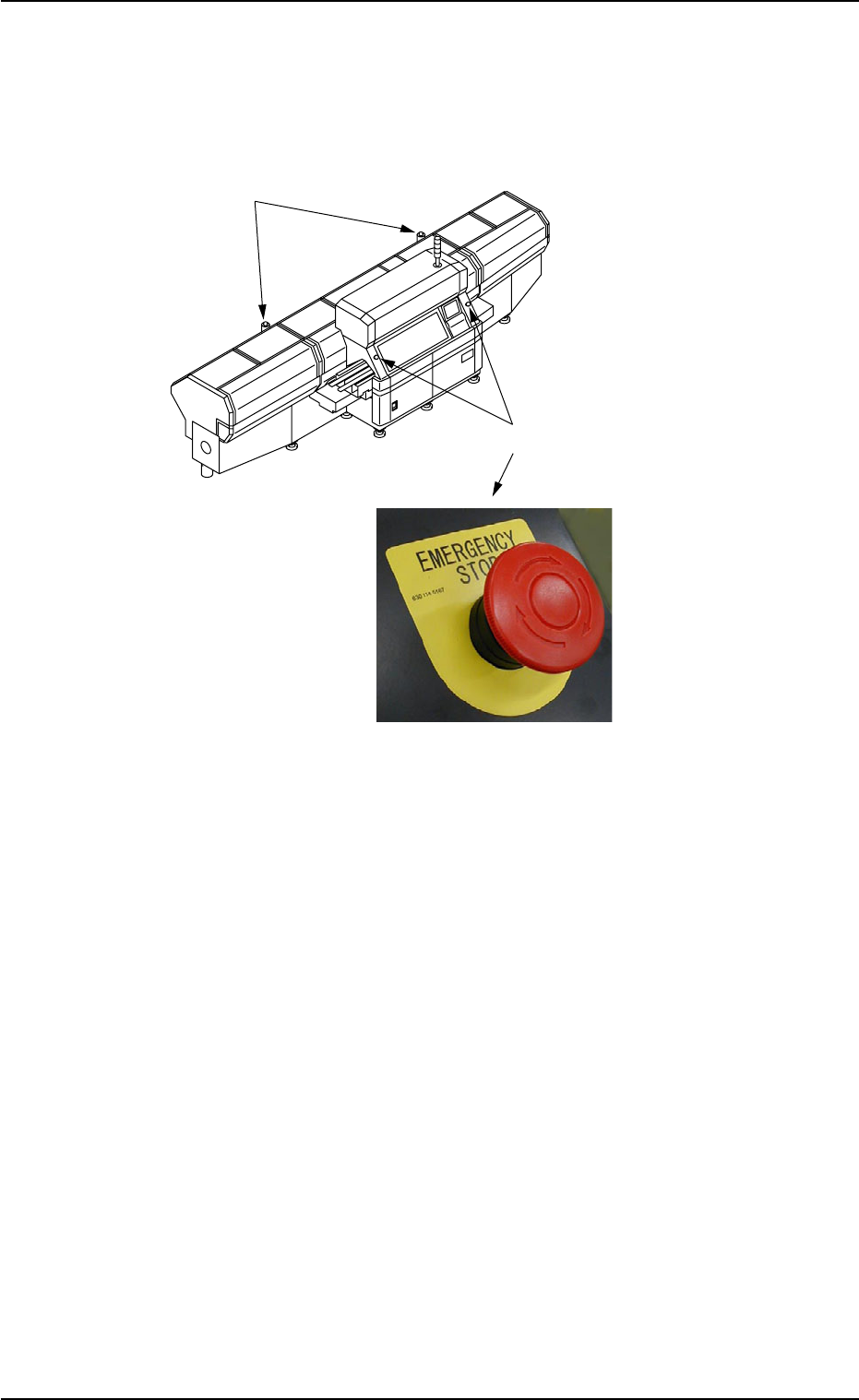

2.2.1 [EMERGENCY STOP] Switches

Fig. 1A4

Use the [EMERGENCY STOP] switches to immediately stop the ma-

chine in an emergency.

When an [EMERGENCY STOP] switch is pressed, the power is turned

off and the machine stops immediately.

When the power is turned off, the LED of the [POWER ON] button on

the operation panel illuminates in red.

••

• Locking the [EMERGENCY STOP] Switch

When an [EMERGENCY STOP] switch is pressed, all power is shut

off, the machine stops running, and the [EMERGENCY STOP] switch

is locked to avoid any careless power re-supply to the machine.

••

• Unlocking the [EMERGENCY STOP] Switch

Before re-supplying power to the machine, check and remove the

cause of emergency stop and inspect each section of the machine.

Then, unlock the [EMERGENCY STOP] switch.

To unlock the switch, turn the switch clockwise and pull it out.

2.2 Safety Devices

0307-005 1-4 AFO01EOPP

[EMERGENCY STOP] Switches (Front)

[EMERGENCY STOP] Switches (Rear)

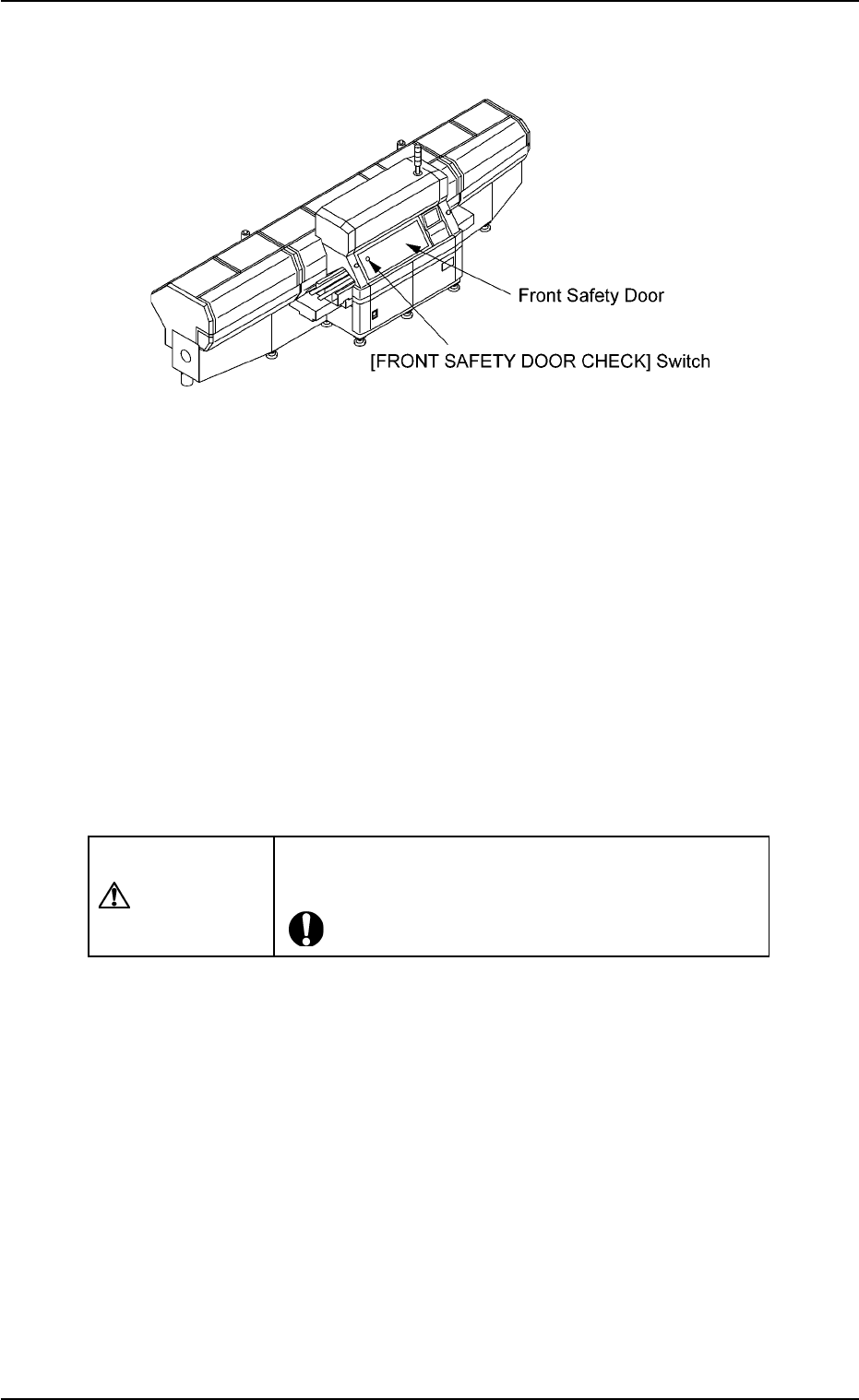

2.2.2 Front Safety Door

Fig. 1A5

The machine is provided with a front safety door on the front side of the

machine to keep any part of body, clothes and any object away from the

moving parts of the machine, avoiding any danger during automatic op-

eration.

The machine is also provided with a [FRONT SAFETY DOOR CHECK]

switch that works to detect whether the front safety door is open or

closed.

When the front safety door is opened with the [OPERATION] switch on

the front operation panel set to "RUN", the switch is activated and an

error occurs.

When the switch is set to "SETUP", it is not activated.

CAUTION

Keep the front safety door closed during automatic

operation to avoid any danger.

2.2 Safety Devices

01 10-003 1-5 AFO01EOPP
