• Ambient temperature must be 20 ± 10 ° C and humidity 30 to 80%. Any dew condensation must be avoided. • When the machine is transferred to another place and the ambient temperature rises more than the surface of the ma…

2.6 Pre-Installation Checks

If the machine is installed in unsatisfactory environmental conditions, it

may malfunction due to damage or breakdown.

To avoid this, make preparations to install the machine as follows.

• The primary power supply must be prepared on the local site.

Voltage : 200±20 V AC, 3-Phase

Apparent Power : TCM-X100: Approx. 16 kVA

TCM-X200: Approx. 16 kVA

TCM-X300: Approx. 16 kVA

• Our service personnel will connect the primary power source.

When any person other than our service personnel must connect the

primary power source, consult our marketing department or sales

agency beforehand.

• If the machine is scheduled to be transferred to another place, please

contact our marketing department or sales agency beforehand.

• Select a place solid enough to support the mass of the machine.

Ref. : It is recommended that the machine should be installed on the first floor.

When the machine has to be installed on a floor other than the first one, please

contact our marketing department or sales agency for details.

Fig. 1X26

• Avoid any place that vibrates severely.

Fig. 1X27

0301-004 22

AFO01EOPP

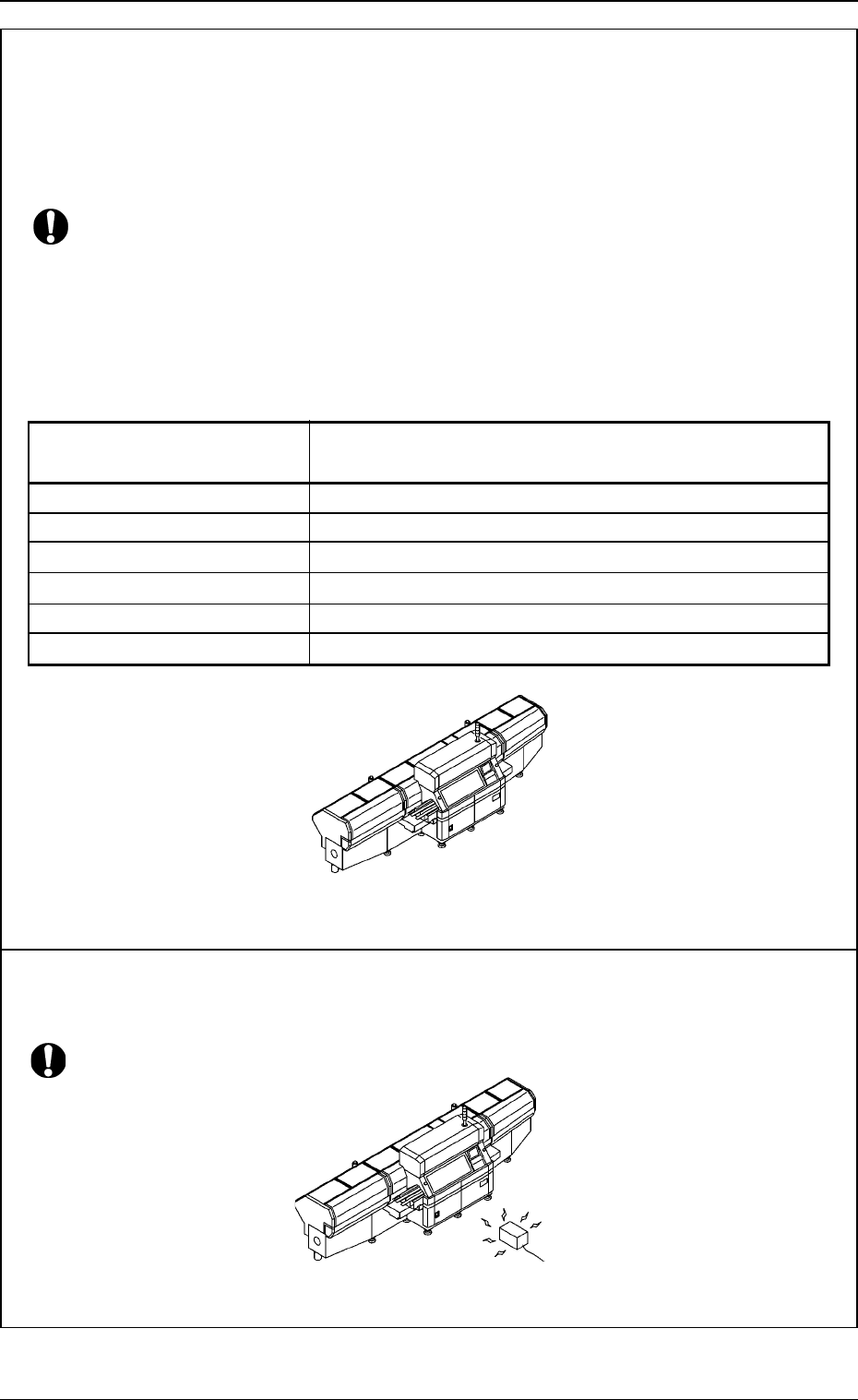

• Ambient temperature must be 20±10°C and humidity 30 to 80%. Any dew condensation

must be avoided.

• When the machine is transferred to another place and the ambient temperature rises

more than the surface of the machine, dew may condense under the condition described

below.

Note that dew condensation may cause the machine to break down.

Condition of Dew Condensation

Dew may condense when the difference (based on "Humidity (%)") between the ambient

temperature of the destination (the place where the machine was transferred) and the

surface temperature of the machine reach the values or more in the table below.

Humidity (%) of Destination Differences between Ambient Temperature of

Destination and Surface Temperature of Machine

80 3°C or more

70 6°C or more

60 8°C or more

50 10°C or more

40 14°C or more

30 18°C or more

Fig. 1X28

• Ensure that the selected place is free of electric noise.

• Precautionary measures (prevention of noise generation, etc.) must be taken for other equip-

ment to prevent malfunctions.

Fig. 1X29

2.6 Pre-Installation Checks

0207-004 23 AFO01EOPP

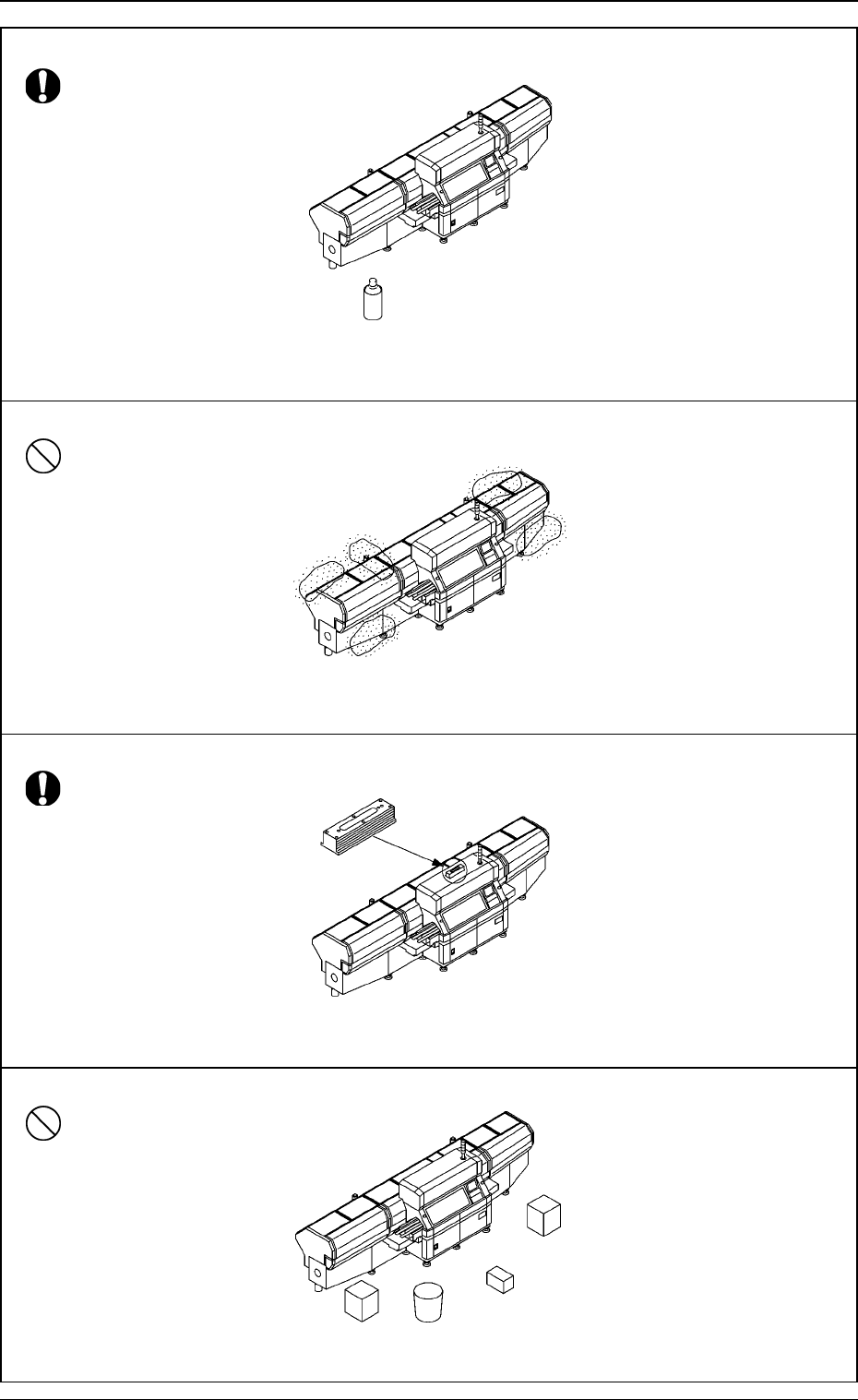

• Do not expose the machine to combustible or corrosive gas.

Fig. 1X30

• Select a place free of lamp soot and dust.

Fig. 1X31

• Level the machine at the correct height, using a level vial.

Fig. 1X32

• The machine should be free of obstacles around it for easy maintenance.

Fig. 1X33

2.6 Pre-Installation Checks
