CAUTION Special caution is required to avoid any danger while the feeder carriage is activated with the feeder work area safety door being kept open. CAUTION When a door is opened or closed, be sure to hold the grip firm…

2.2.3 Feeder Work Area Safety Doors

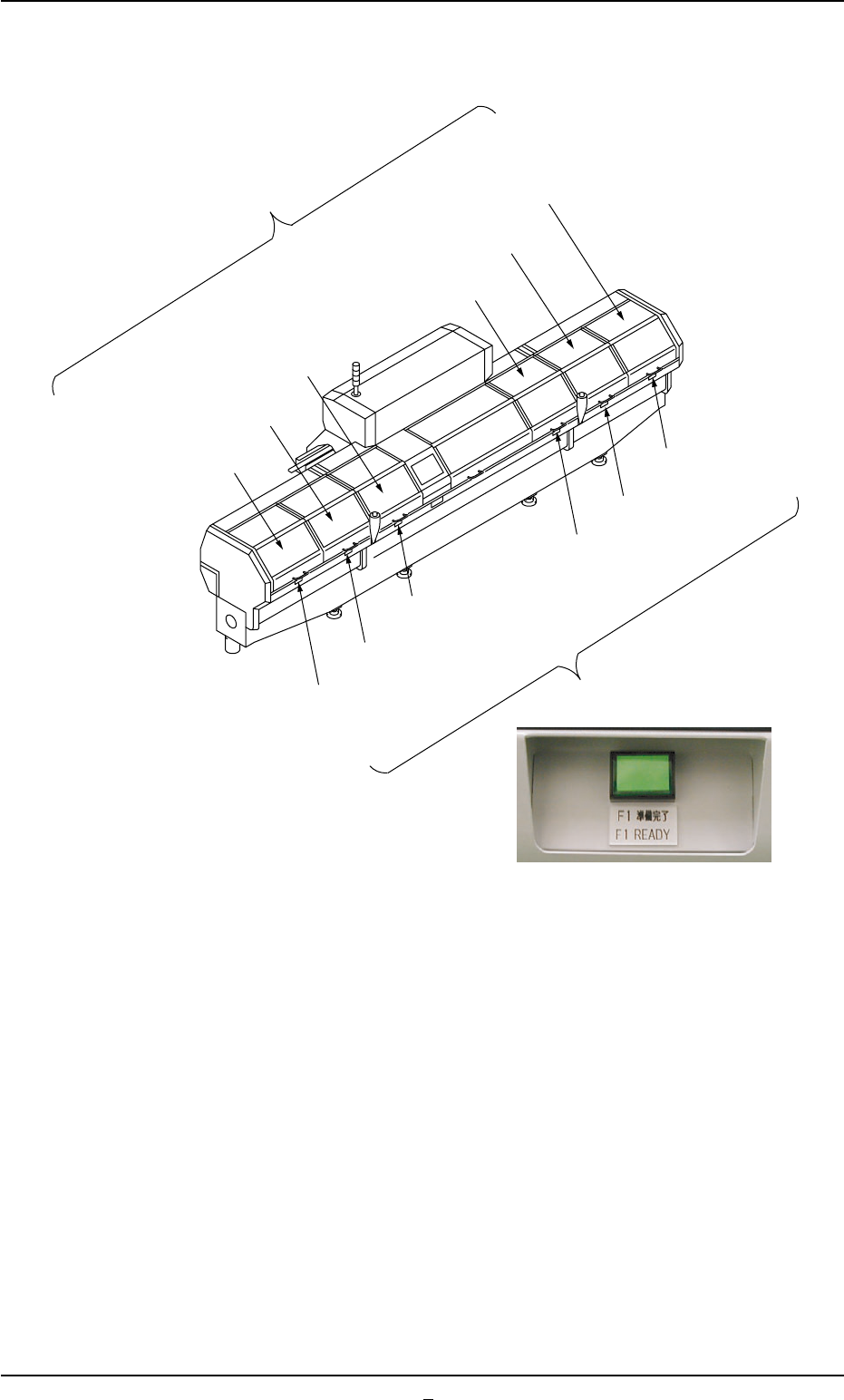

Fig. 1A6 Feeder Work Area Safety Doors and Feeder Ready Buttons

The machine is provided with feeder work area safety doors on the rear

side of the machine to avoid any danger possible to be caused while the

feeder carriage is moving during automatic operation.

To open a feeder work area safety door, press the corresponding feeder

ready button (the lamp of the button extinguishes) and ensure the safety

around the machine before opening the door.

2.2 Safety Devices

0102-002 1-6 AFO01EOPP

F1 Work Area Safety Door

[F1 READY] Button

Feeder Work Area

Safety Door

F2A Work Area Safety Door

F3B Work Area Safety Door

F2B Work Area Safety Door

F3A Work Area Safety Door

F4 Work Area Safety Door

[F2A READY] Button

[F3B READY] Button

[F2B READY] Button

[F3A READY] Button

[F4 READY] Button

Feeder Ready Buttons

CAUTION

Special caution is required to avoid any danger while

the feeder carriage is activated with the feeder work

area safety door being kept open.

CAUTION

When a door is opened or closed, be sure to hold the

grip firmly and slowly move the door up or down.

Otherwise, part of your body may be trapped in the

door.

If the feeder work area safety door is opened while the feeder

carriage is moving, the power to drive the carriage is shut off

and the machine stops in an error condition.

2.2 Safety Devices

01 10-003 1-6-1 AFO01EOPP

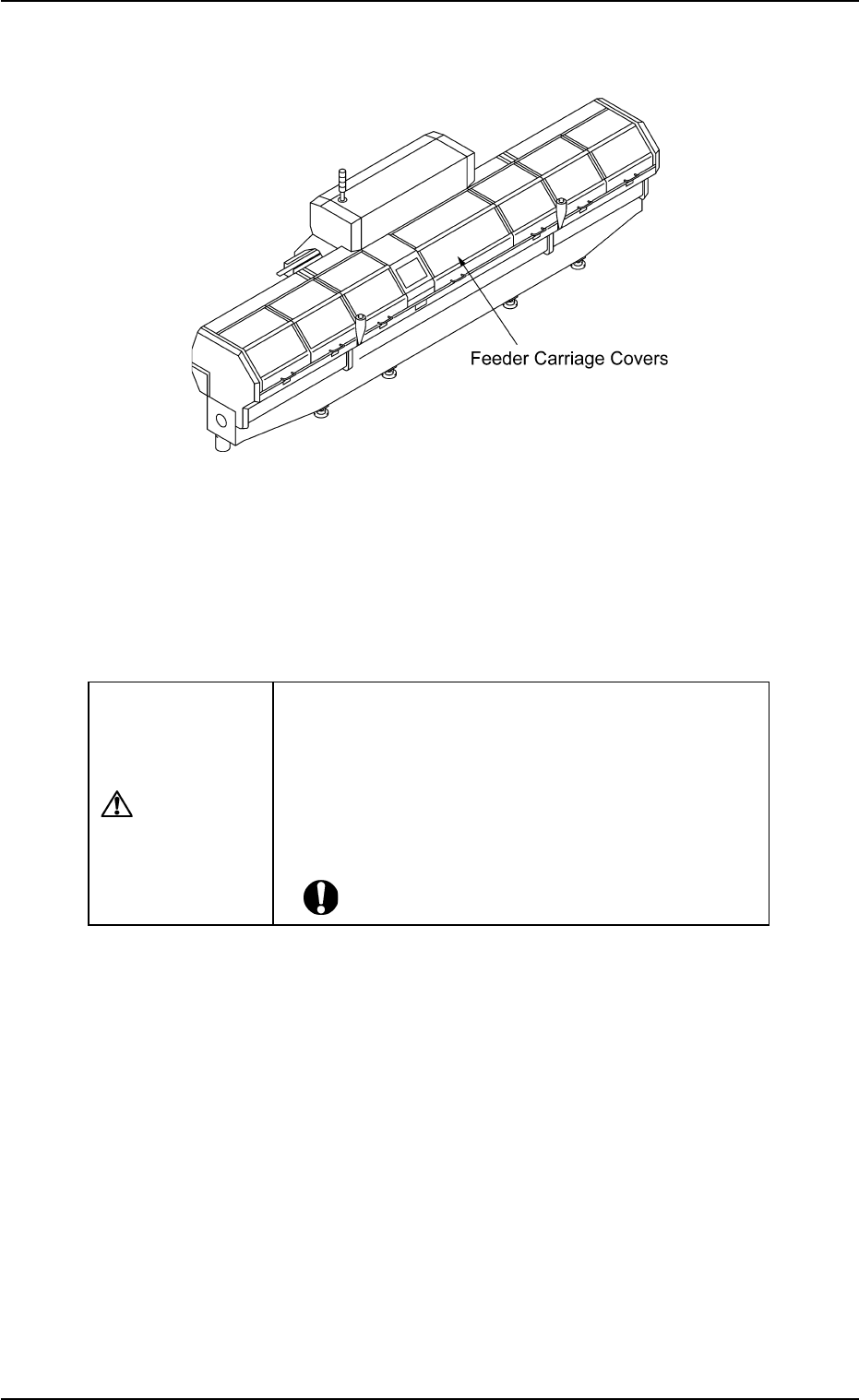

2.2.4 Feeder Carriage Covers

Fig. 1A7

The machine is provided with feeder carriage covers at the central sec-

tion of the rear side, allowing the operator to stay clear of any danger

possible to be caused while the feeder carriages are moving during au-

tomatic operation.

CAUTION

• When the machine is powered, the feeder carriage

cover cannot be opened.

• The machine cannot be powered with the feeder car-

riage cover being open.

• Do not modify the safety device in the feeder car-

riage cover section.

01 10-003 1-7

AFO01EOPP

2.2 Safety Devices
