1.1 Inspections before Automatic Operation
1.1.1 Confirmation of Power Supply and Air Pressure
(1) Confirmation of Power Supply
Confirm that the local main breaker (the power supply to the ma-
chine) is "ON".
• Power Supply : 200±20 V AC 3-Phase
• Apparent Power : TCM-X100: Approx. 16 kVA
TCM-X200: Approx. 16 kVA
TCM-X300: Approx. 16 kVA
(2) Confirmation of Air Pressure
Confirm that the air pressure is set to the value specified below.
• Main Pressure : 0.45 MPa (4.6 kgf/cm
2
)
The above represents the pressure specified while the
machine is in the "STOP" mode.
Min. 0.4 MPa (4.1 kgf/cm
2
) is required while the machine
is running.
• Sub Pressure : 0.29 MPa (3 kgf/cm
2
)
• Air Blowing Pressure: 0.05 MPa (0.5 kgf/cm
2
) to
0.08 MPa (0.8 kgf/cm
2
)
• Pressure of Z Clamp: 0.2 MPa (2.0 kgf/cm
2
)
Fig. 1C3
1.1 Inspections before Automatic Operation
0307-006 3-2 AFO01EOPP

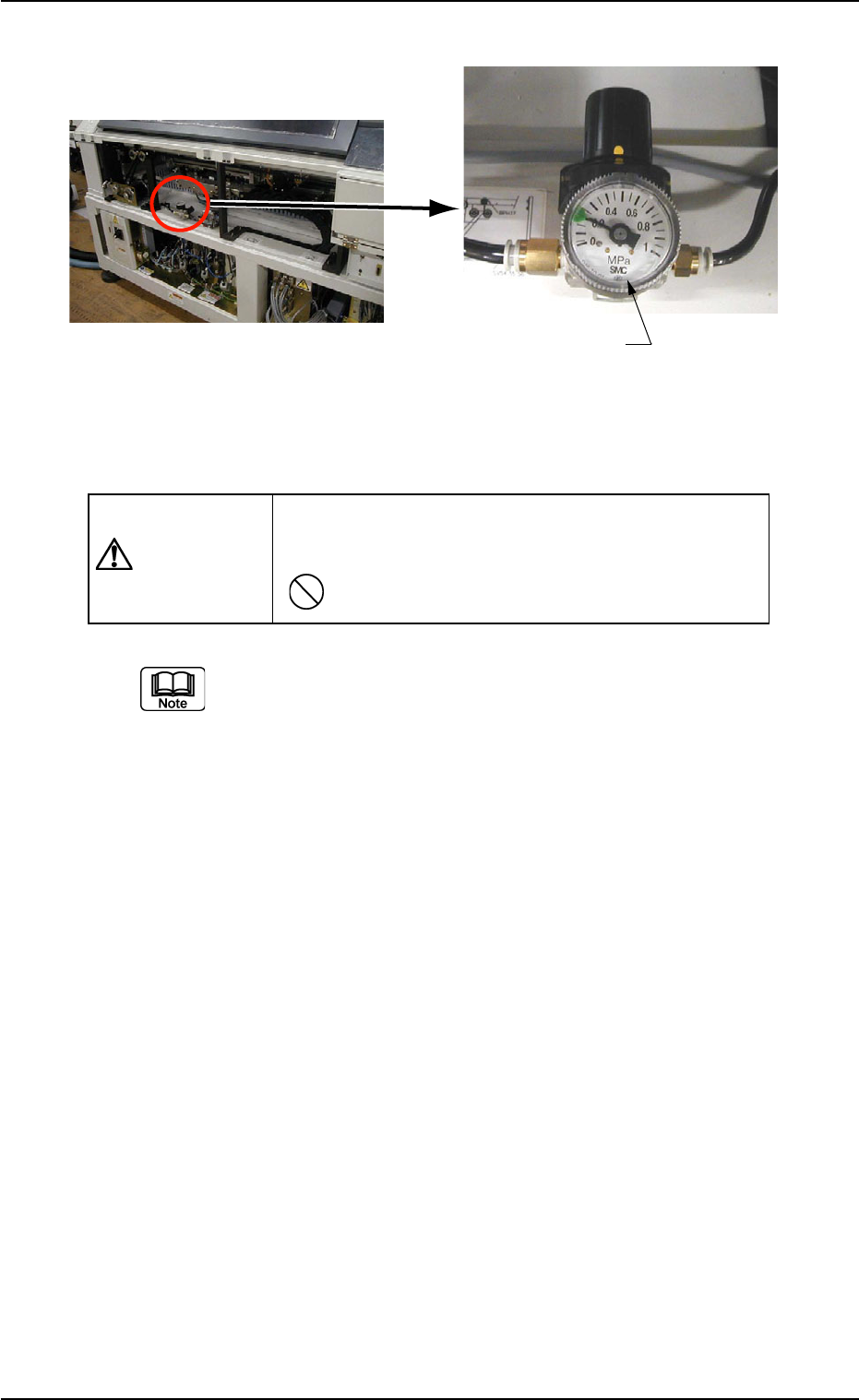

Fig. 1C3-1 Fig. 1C3-2
CAUTION
Do not change the set air pressure. Otherwise, the
pneumatic devices will not work normally.
(a) The pressure switch is correctly set. Be sure not to adjust
it.
Ref.: 0.40 MPa for P1 and 0.35 MPa for P2
(b) Never adjust the air blowing pressure. The pressure is al-
ready set to "0.05 MPa (0.5 kgf/cm
2
) to 0.08 MPa (0.8 kgf/
cm
2
)".
(c) Use of Dry and Clean Air
Be sure to use dry and clean air. If moisture, oil, dust, etc.,
enter a pneumatic device (air cylinder, etc., used in this
machine), it will result in a breakdown of the machine.
Dry and Clean Air
Moisture : Dew Point -17°C or lower (Atmospheric Pres-
sure)
Oil : 0.1 mg/m
3
or less (ANR)
Dust : Solid Material 0.01 µm or less
1.1 Inspections before Automatic Operation
0301-004 3 - 3 AFO01EOPP
