1.6 End of Automatic Operation

1.6.1 Stop of Automatic Operation

(1) Confirm that the [CYCLE] button (*1, entitled "STOP") is selected.

(2) When the [ON] button (*3, entitled "STOP") is pressed, each device

returns to its stationary position after the machine has placed com-

ponents on the P.C.B.’s inside the machine.

The LED of the [START] button and the green lamp (tower light)

extinguish and the automatic operation stops.

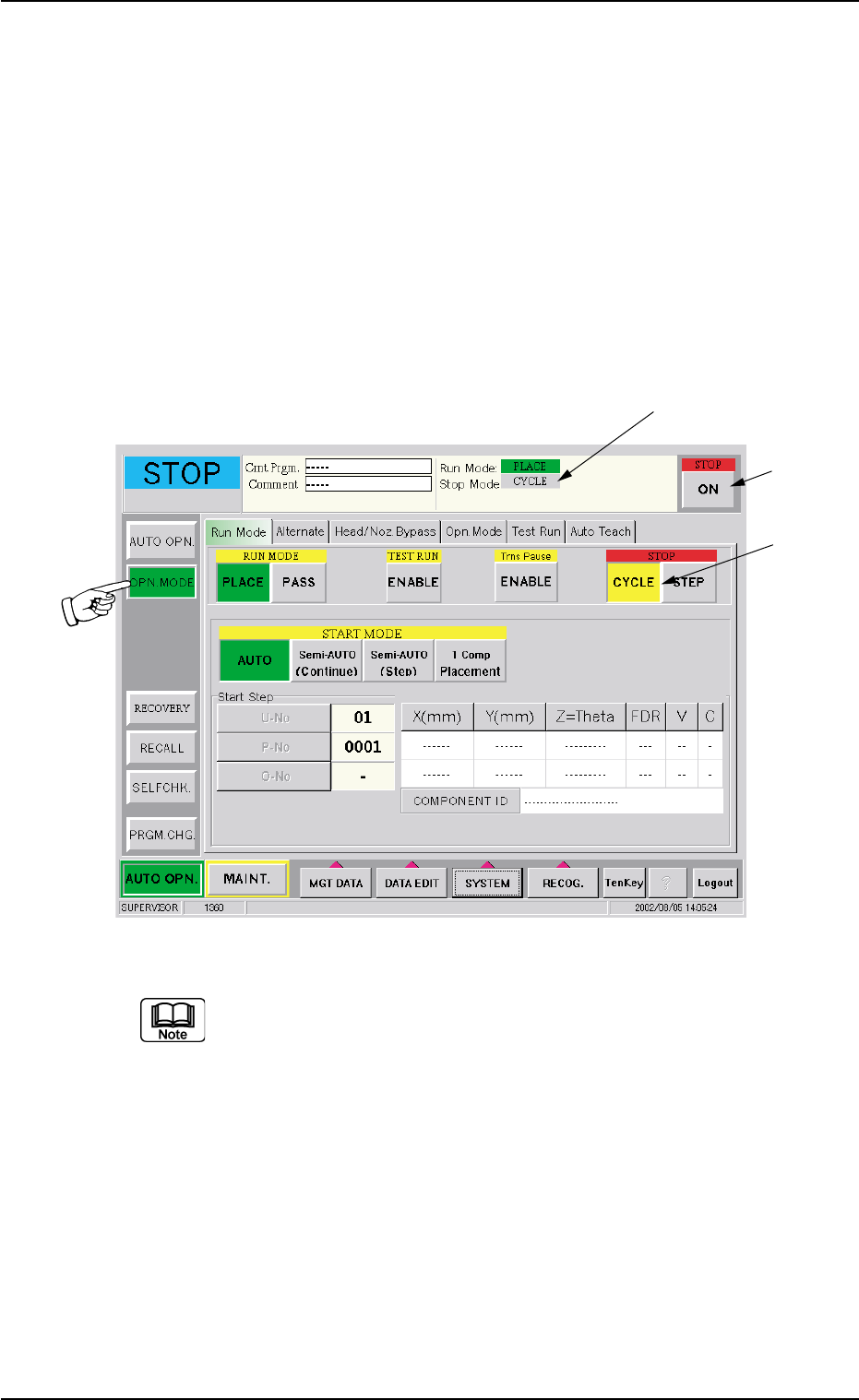

Fig. 1C24-1

When "STEP" is set as "Stop Mode" (*1), select the [CYCLE]

button (*2, entitled "STOP") in the "Run Mode" tab sheet.

"CYCLE" is set as "Stop Mode" (*1).

1.6 End of Automatic Operation

0207-004 3-18 AFO01EOPP

1.7 Shut-Down Operation

1.7.1 Shut-Down Procedure

The following explains how to shut down the power to the machine.

CAUTION

Be sure to log out from an operation window to open

the "Login Type Selection" window and go through

the shutdown procedure by pressing the [SHUT

DOWN] button before turning off the power to the

machine.

• When the power is shut down at a window other

than the "Login Type Selection" window, the saved

data (the management data, various data on the

hard disk, etc.) may be deleted.

Operation Procedure

(1) Press the [Logout] button on the main menu bar.

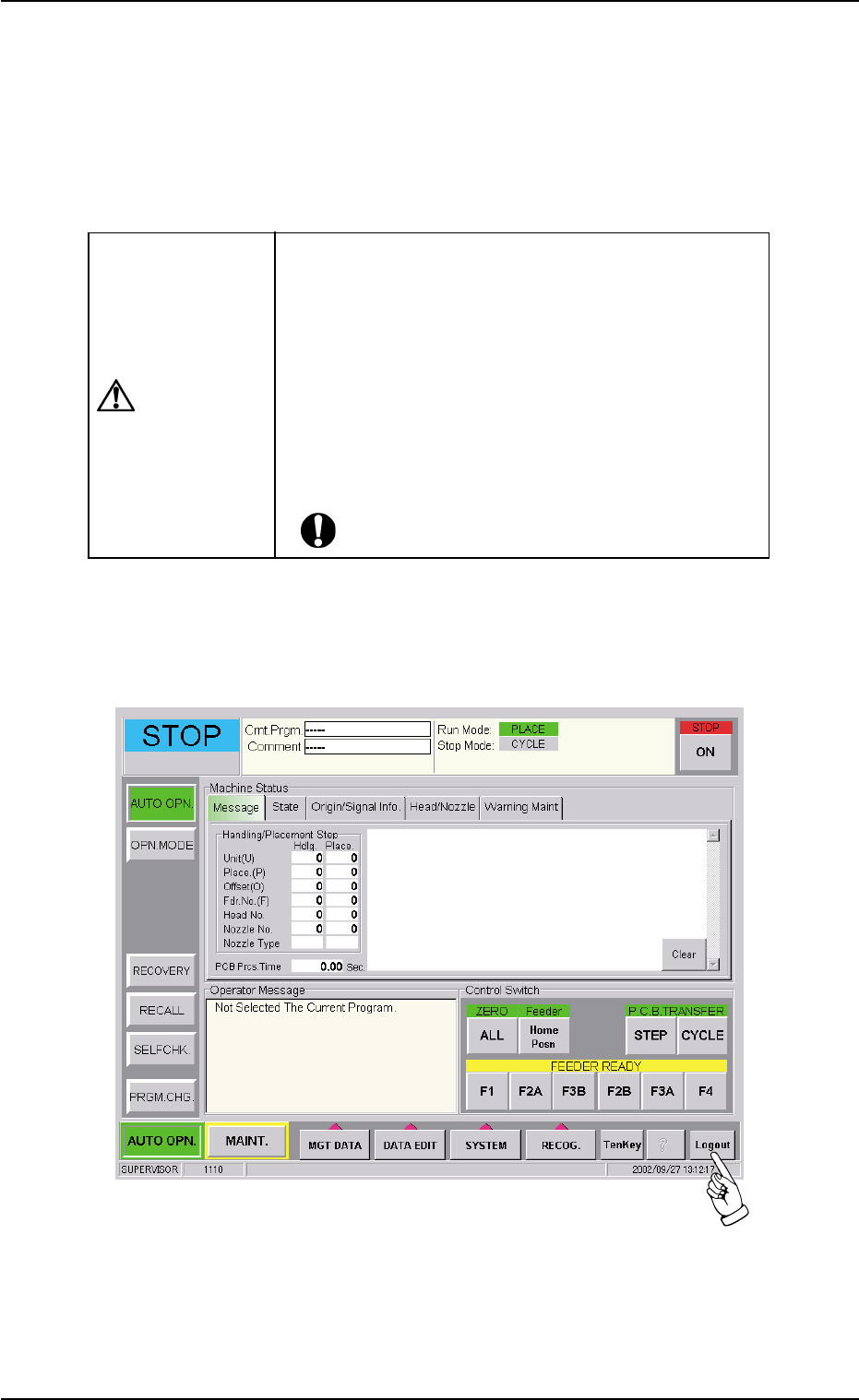

Fig. 1C25

0210-005 3-19

AFO01EOPP

1.7 Shut-Down Operation

(2) The "Login Type Selection" window opens.

Fig. 1C25-1

(3) When the [SHUT DOWN] button is pressed in the "Login Type Se-

lection" window, the "SHUT DOWN" dialog box opens for the confir-

mation.

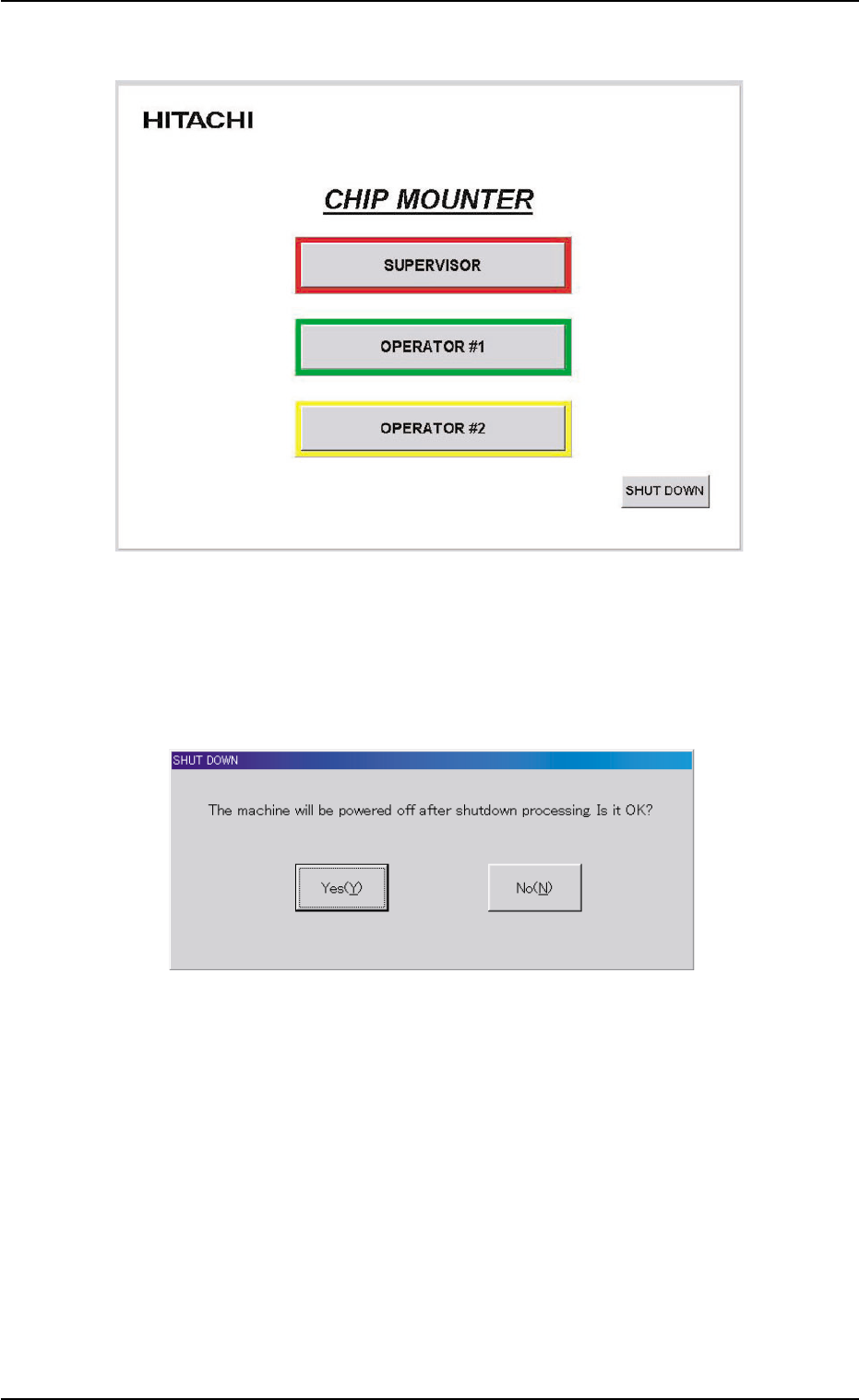

Fig. 1C25-2 "SHUT DOWN" Dialog Box for Confirmation

(4) When the [Yes(Y)] button is pressed, the power to the machine is

turned off.

When the [No(N)] button is pressed, the shut-down operation is

canceled.

0307-003 3-20

AFO01EOPP

1.7 Shut-Down Operation
