1. Normal Automatic Operation
Flow of Automatic Operation
Program Change Operation
Refer to "Volume 2: Operation (Supervisor)" for
details.
Inspections before Automatic Operation
Refer to the following for details.
1.1.1 Confirmation of Power Supply and Air
Pressure
1.1.2 Confirmation of Front Safety Door and
Feeder Carriage Sections
Preparation before Automatic Operation
Refer to the following for details.
1.2.1 Power ON Operation
1.2.2 "AUTO OPN." Window and Zeroing of
Each Device
1.2.3 Preparation for Components and P.C.B.’s
Start of Automatic Operation
Refer to the following for details.
1.3 Start of Automatic Operation
Temporary Stop and Restart of Automatic Operation
Refer to the following for details.
1.4.1 Replenishment of Components and P.C.B.’s
1.4.2 Temporary Stop with [STOP] or [ON]
(entitled "STOP") Button
1.4.3 Stop Operation by Selection of "Auto Stop
Mode"
Interruption of Automatic Operation
Refer to the following for details.
1.5.1 Interruption of Automatic Operation with
[CANCEL] Button
1.5.2 Interruption with [EMERGENCY STOP] Switch
End of Automatic Operation
Refer to the following for details.
1.6.1 Stop of Automatic Operation
1.7.1 Shut-Down Procedure
1.7.2 Locking the Power Breaker with the Padlock
1. Normal Automatic Operation
Fig. 1C1
Fig. 1C2
0301-005 3 - 1 AFO01EOPP
1.1 Inspections before Automatic Operation
1.1.1 Confirmation of Power Supply and Air Pressure
(1) Confirmation of Power Supply
Confirm that the local main breaker (the power supply to the ma-
chine) is "ON".
• Power Supply : 200±20 V AC 3-Phase
• Apparent Power : TCM-X100: Approx. 16 kVA
TCM-X200: Approx. 16 kVA
TCM-X300: Approx. 16 kVA

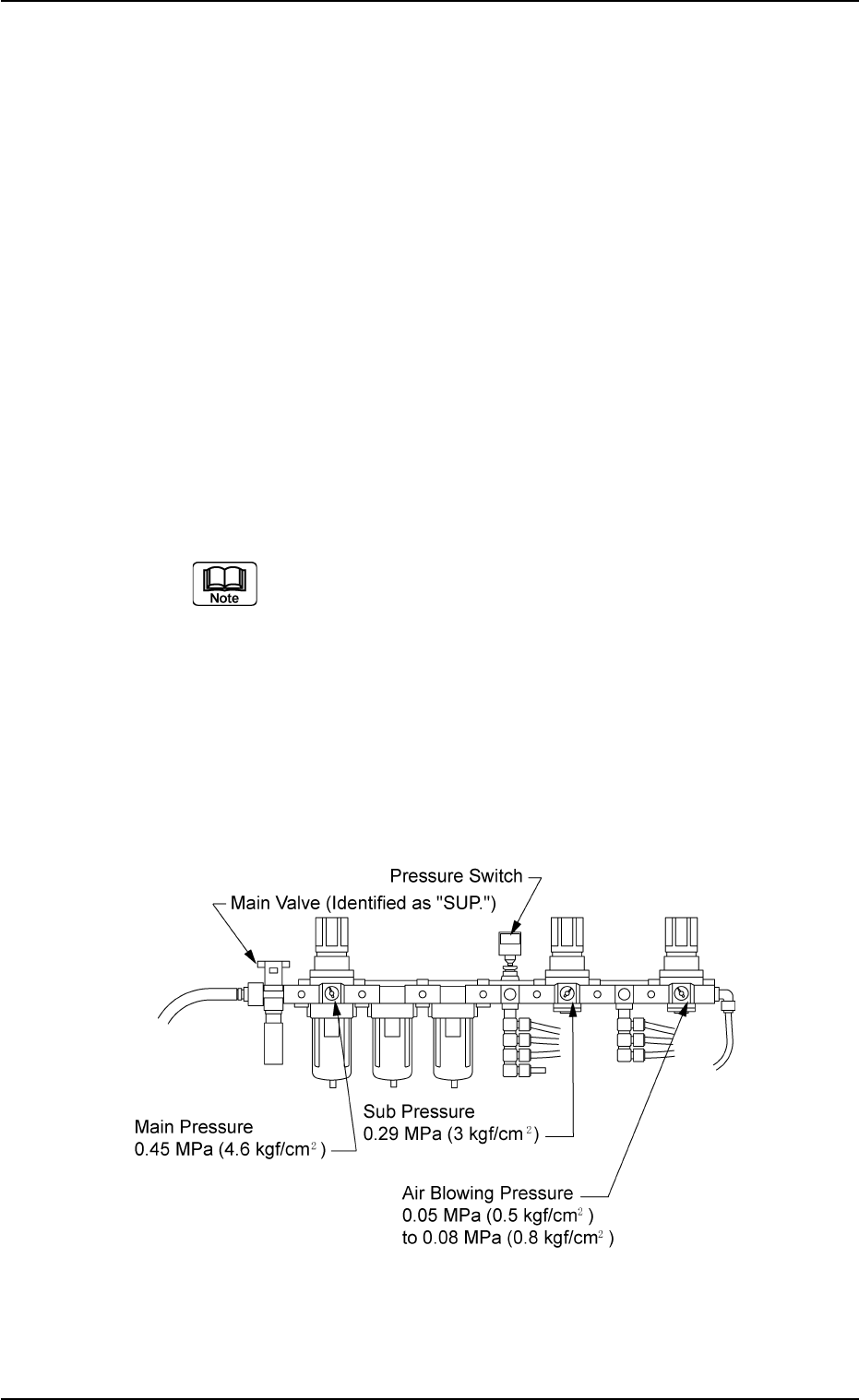

(2) Confirmation of Air Pressure
Confirm that the air pressure is set to the value specified below.
• Main Pressure : 0.45 MPa (4.6 kgf/cm
2
)
The above represents the pressure specified while the
machine is in the "STOP" mode.
Min. 0.4 MPa (4.1 kgf/cm
2
) is required while the machine
is running.
• Sub Pressure : 0.29 MPa (3 kgf/cm
2
)
• Air Blowing Pressure: 0.05 MPa (0.5 kgf/cm
2
) to
0.08 MPa (0.8 kgf/cm
2
)
• Pressure of Z Clamp: 0.2 MPa (2.0 kgf/cm
2
)
Fig. 1C3
