1 . 2 Preparation before Automatic Operation 1.2.1 Power ON Operation (1) Ensure the safety around the front safety door and the feeder car- riage sections. (2) Remove the padlock from the lock lever of the power breaker…

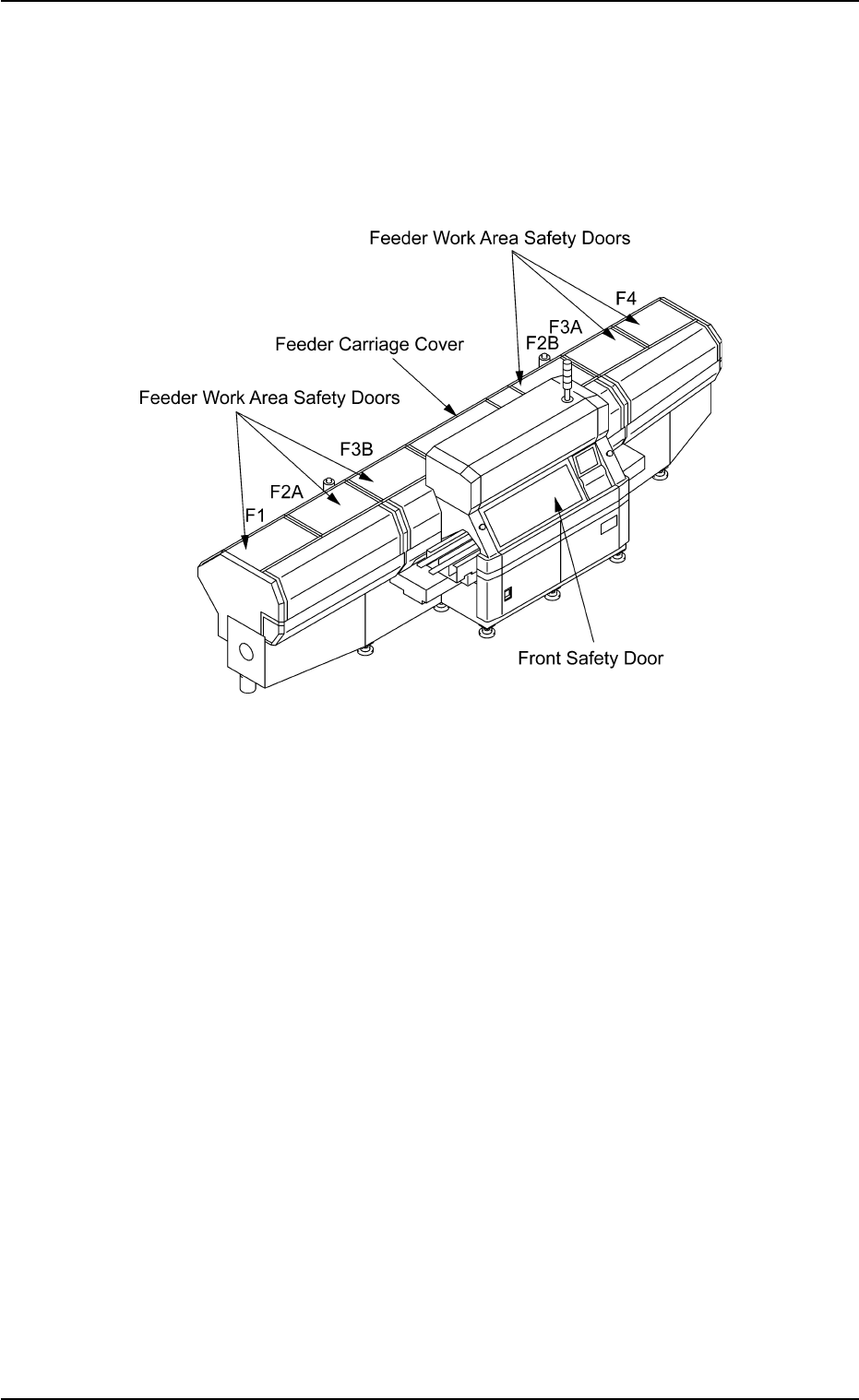

1.1.2 Confirmation of Front Safety Door and Feeder Carriage
Sections
Confirm that the front safety door, the feeder work area safety doors,
and the feeder carriage covers are completely closed.
Fig. 1C4
0102-002 3 - 4
AFO01EOPP
1.1 Inspections before Automatic Operation
1.2 Preparation before Automatic Operation
1.2.1 Power ON Operation
(1) Ensure the safety around the front safety door and the feeder car-
riage sections.
(2) Remove the padlock from the lock lever of the power breaker.
Fig. 1C6
(3) Set the power breaker to "ON".
Power is supplied to the machine.
To re-power the machine, shut down the main
breaker and wait for about 10 seconds. After that,
turn on the main breaker.
If the main breaker is turned on immediately after it
was shut down, the previous data (the data retained
before the current is intercepted) will not be reset, lead-
ing to a rare malfunction in the breaker.
Fig. 1C7
1.2 Preparation before Automatic Operation
0307-003 3-5 AFO01EOPP
CAUTION
(4) Hold down the [POWER ON] button on the operation panel for one
second or more.
The lamp of the [POWER ON] button illuminates in yellowish green
and the self-diagnostics function starts.
Fig. 1C8
It takes 2 to 3 minutes until the self-diagnostics operation is
completed. Please wait for a while.
When the self-diagnostics operation is completed, "Login Type Selec-
tion" window appears on the touch screen.
Fig. 1C9
(5) Press the [SUPERVISER], the [OPERATOR #1], or the [OPERA-
TOR #2] button according to the given authority. The "Password
Entry" window opens.
Fig. 1C10
219'410
5612
56#46 '0#$.'
4705'672
12'4#6+10
.1%-
20.%*#0)'
1.2 Preparation before Automatic Operation
0307-004 3-6 AFO01EOPP
