3 . 3 P .C.B. T ransfer (to the output machine) The P .C.B. where all required components are placed is transferred from the P .C.B. transfer section to the R conveyor and carried further to the output machine. Fig. 1A44…

Tape Feeder

3.2 Component Picks and Placement

0102-002 1-30 AFO01EOPP

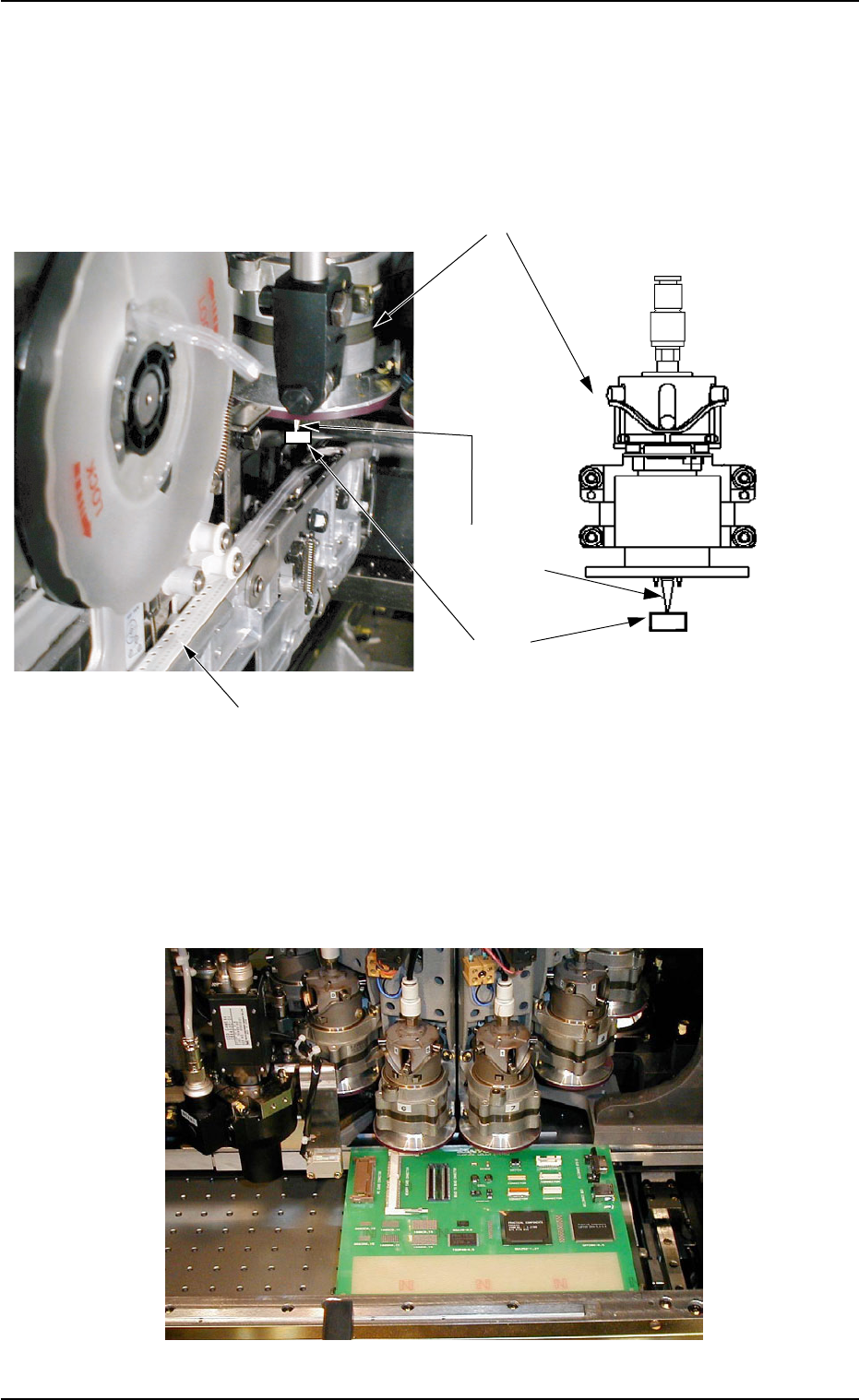

3.2 Component Picks and Placement

Component Pick-Up

Components are picked up from the tape feeder by the vacuum

nozzles on the placement heads.

Fig. 1A42 Component Pick-Up Section (Station #12)

Component Placement

The component picked up by the vacuum nozzle is placed on the

P.C.B. in the component placement section.

Fig. 1A43 Component Placement Section (Station #6)

Placement Head

Vacuum Nozzle

Component

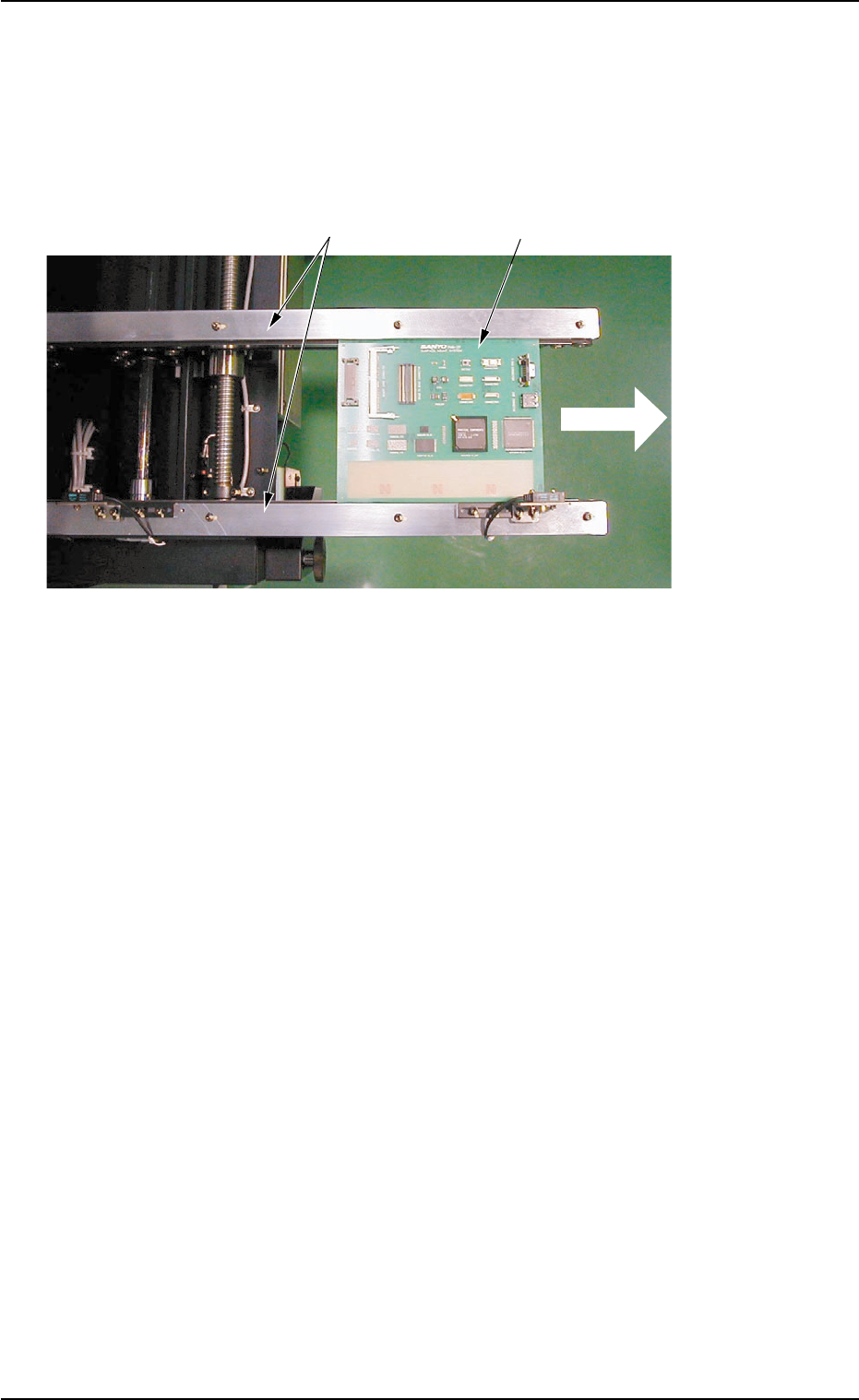

3.3 P.C.B. Transfer (to the output machine)

The P.C.B. where all required components are placed is transferred

from the P.C.B. transfer section to the R conveyor and carried further to

the output machine.

Fig. 1A44

3.3 P.C.B. Transfer (to the output machine)

R Conveyors

P.C.B.

Output Machine
