Introduction 1-1
1 - Introduction
YESTech Automated X-Ray Inspection (AXI) is an effective technology for finding
manufacturing defects in electronic assemblies.
1.1 Automated 2D Inspection System –X2

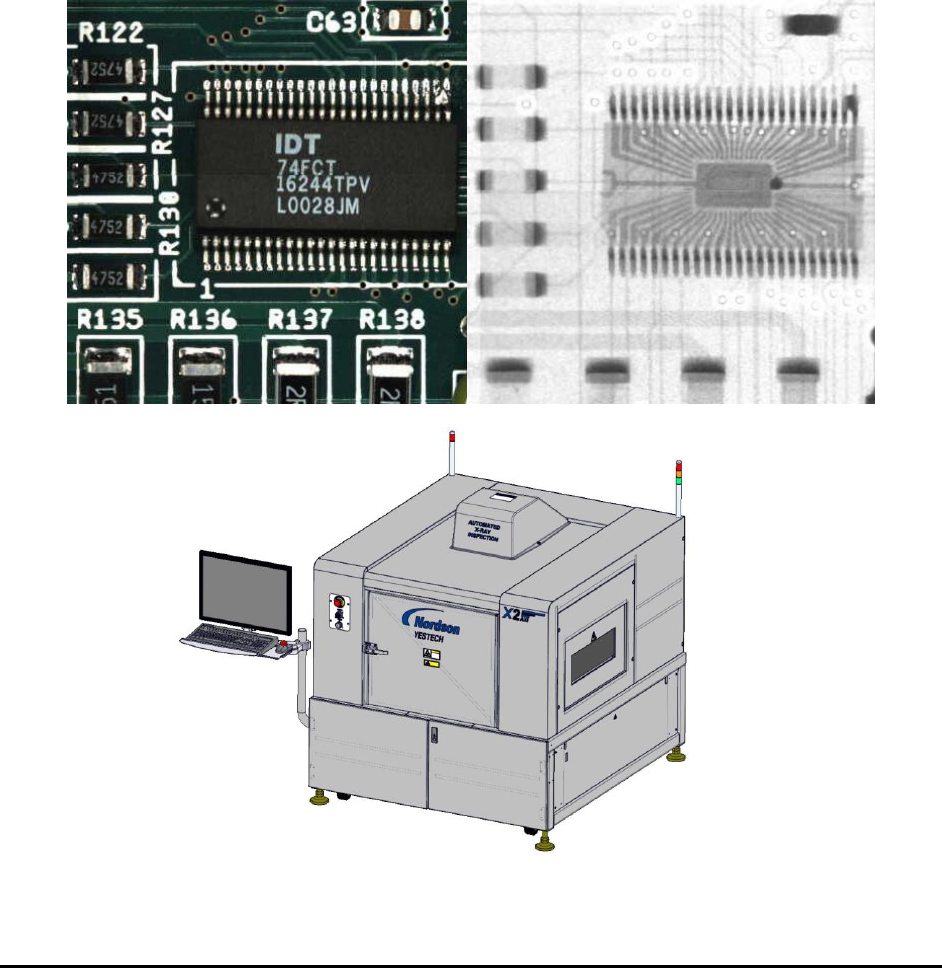

Nordson YESTECH’s X2 AXI System is a fully automated 2D X-Ray inspection system. It can
couple with an AOI machine to perform dual technology inspection. The X2 AXI System is
equipped with an X-Ray camera as well as a vision camera. The vision camera is mainly used for
generating background map image for the board being inspected. It can also be used to read
barcodes from the boards. Other than that, all inspection functions are performed under X-Ray
camera view and by X-Ray inspection methodologies.
1-2 Introduction
1.1.1 System Block Diagram for X2 AXI System
XY Stage
Alignment
Camera
Assembly
Top Light
Assembly
Side Light Assembly
Conveyor
EBOX 1
I/O Control
EBOX 2
Servo Motor
Control
PC
LCD
Monitor
Keyboard
Mouse
IEEE 1284
LCB
X-ray
Intensifier
X-ray
Camera
Z
Stage
X-ray Tube
X-ray Power
Supply
Left Shutter
Right Shutter
RS232
USB2
USB2
USB2
