User Interface Basics 4-9

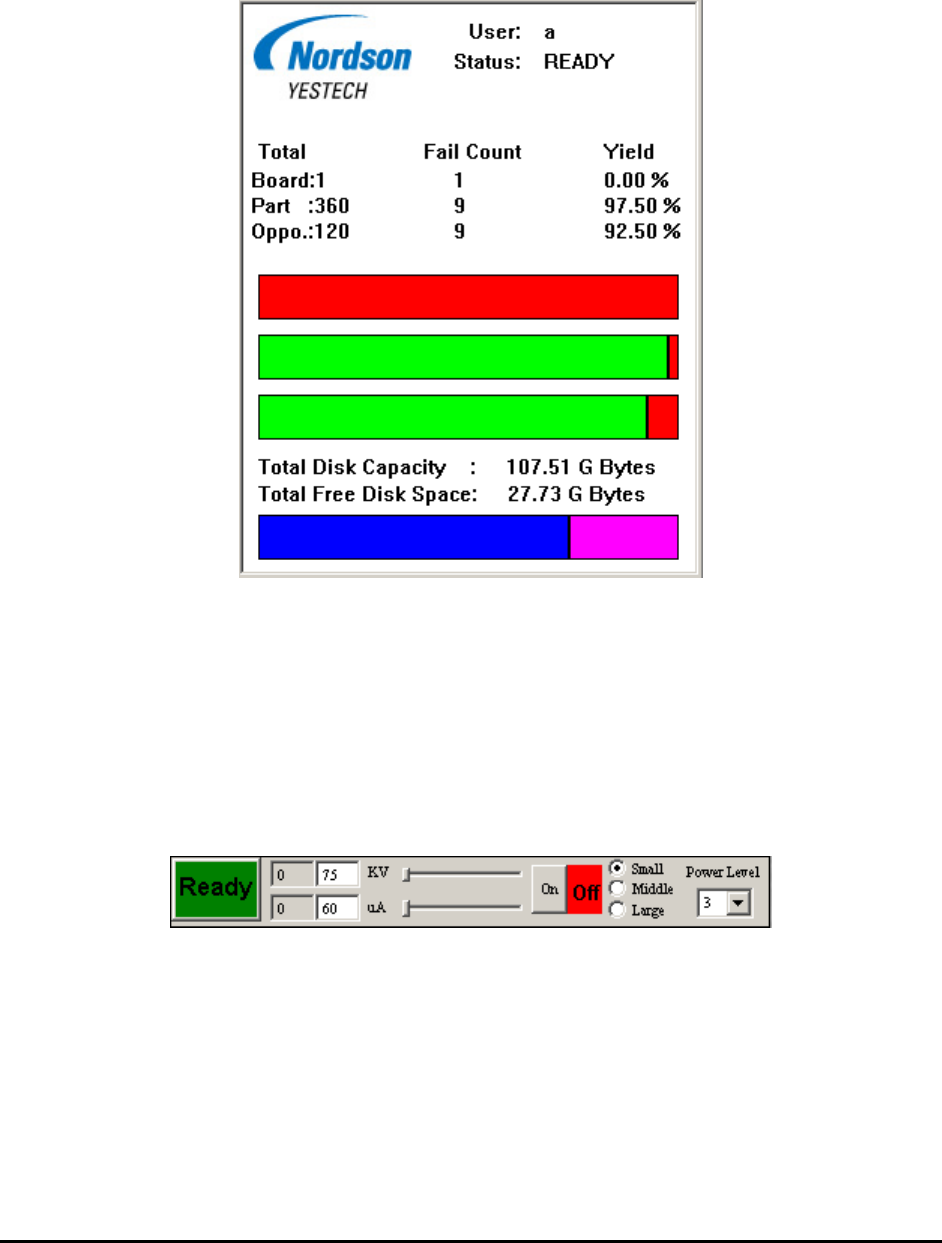

4.7 Status View
The status view displays various status information related to the inspection process as well as
the disk space.
Optionally you can open a second status window. Right click on the Status 1 dialog to open the
Status 1 pop-up menu and select Show Status2 View. The second status window displays status
information for a FIFO (First-In-First-Out) buffer used during downstream review.
4.8 X-ray Control Bar
The X-ray control bar displays various status information and controls for the X-ray tube. With
the X-ray Control, the user can interactively control and monitor the X-ray source from the
YesAX software, instead of using the control panel of the X-ray source. When the YesAX is
started, the X-ray Control Bar dialog appears at the upper right corner of the screen.
The X-ray Control Bar displays the current status of the X-ray source, its voltage and current
levels. It is also able to continuously update the information in real time.
Use the On and Off buttons to turn on and off the X-ray. When the X-ray is on, the control bar
shows “X-ray On” inside its status pane, and also continuously displays and updates the voltage
and current levels.
The two left boxes display the preset voltage and current. To change the demand voltage or
demand current, use the two sliders next to the voltage and current fields.
4-10 User Interface Basics
To change the X-ray focal spot size, select one of the options on the right: Small, Middle or
Large. Smaller spot sizes generate an image with better resolution.
NOTE If the spot size is changed while the X-ray is on, X-ray will be turned off
automatically. Touch the X-ray On button to turn the X-ray back on.
Since the X-ray tube used on the X3 AXI system only has one spot size available, there is no
spot size selection area available for X3 AXI system.
The position of the control bar can be changed. To do that, left mouse click on the control bar,
drag it to a new position, then release the mouse button.
For each X2/X3 AXI system there are ten pre-defined X-ray power level settings. Each power
level has its own voltage, current and spot size settings. During system calibration values of
voltages and currents of each power level will be adjusted so that for the same kind of sample,
the same power level of different systems will generate very similar levels of image quality. To
use a pre-defined power level, select the specific power level from the drop down list and then
click the X-ray On button.
4.9 3D Control Dialog
The 3D Control dialog displays various status information and control for 3D related inspections
and operations. This dialog box is designed for X3 AXI systems only. Details of 3D inspection
will be described in Section 10.
Inspection and Defect Review Step by Step 5-1
5 - Inspection and Defect Review Step
by Step
5.1 Step1: Load the Recipe
Inspection process starts by selecting and loading the correct inspection recipe. To load the
recipe, click the Load Recipe button or select it from the list of recently loaded recipes in the
File menu.
