Inspection and Defect Review Step by Step 5-1

5 - Inspection and Defect Review Step

by Step

5.1 Step1: Load the Recipe

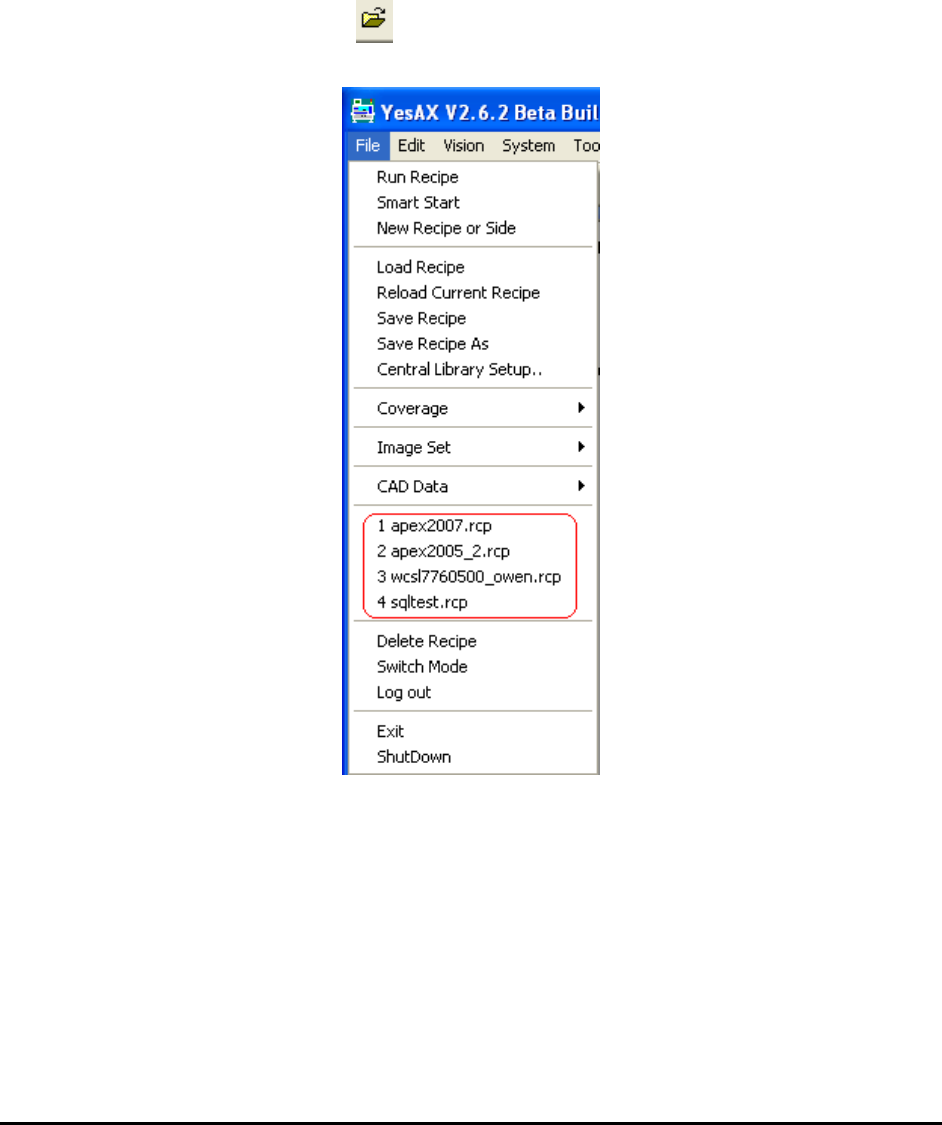

Inspection process starts by selecting and loading the correct inspection recipe. To load the

recipe, click the Load Recipe button or select it from the list of recently loaded recipes in the

File menu.

5-2 Inspection and Defect Review Step by Step

5.2 Step2: Run the Inspection

To run the inspection, click the Run Recipe button. The Run Inspection dialog opens. In this

dialog the user can set various options for the inspection process.

The options in this dialog are arranged in three groups; Operation, Image Archive and

Reporting.

In the Operation group there are nine checkboxes and five radio buttons.

Re-Test Failed Parts

Enable or Disable the Re-Test feature. The re-testing of failed parts reduces the false call rate.

The number defines the re-test criteria. For example if a 3 is entered the system will retest

any frame having 3 or more failures. The default number is 1; re-test every failure.

Perform a Center Retest. Any failure found during the run will be moved under the crosshairs,

and retested.

Review Online

Select online or offline review. If online review is not selected user must select one of the

save image options in the Image Archive to allow offline review.

Auto Re-Start

If enabled, this feature will repeat the inspection step for the next board without the user

pressing the Next button in the Result dialog.

Pass Only

This option is only available when the Auto Re-Start option is selected. If enabled, Auto Re-

start is only active when the board being inspected has passed the inspection.

Inspection and Defect Review Step by Step 5-3

Laser Height Profile

This option is only available for X3 AXI system. If enabled, the laser height profile will run

first before any 3D inspection and update the slice offset of each 3D site. The Fast option is

available for early version YTX-X3 with non-PGR side cameras. If enabled, the laser height

inspection will be performed in a faster speed.

Inspect First Article

If enabled, the inspection will run under first article inspection mode. For details regarding

first article inspection, please refer to 0 For inspection programs use multiple layers, it will

be convenient to click layer buttons inside toolbar so that switching between different layers

is easy. To turn on the feature, close YesAX software first then edit the YesAX.ini file and

change:

[MainFrame]

ShowLayerButtons=1

Open YesAX software again the three layer buttons will show up in toolbar.

Reducing Inspection and Review Time for Non First Article Inspection.

Inspect Bare Board

If enabled, this feature indicates to the machine that a bare board is placed in the machine and

the machine will perform a bare board test for the inspection recipe. With the bare board test

all “marks” and “solder” inspection boxes are supposed to fail. In the review process for bare

boards, this system reviews “marks” and “solder” inspection boxes that passed.

The five radial buttons in the operation group are used to select how the boards are tracked.

Prompt for S/N

Before inspection software will prompt the user for the board’s serial number with the Board

Serial Number dialog.
