Train Part without CAD data 8-1

8 - Train Part without CAD data

It is possible to train parts without CAD data. To add parts this way first move the camera so that

the part to be trained is in the field of view, then press the Add Part button on the toolbar.

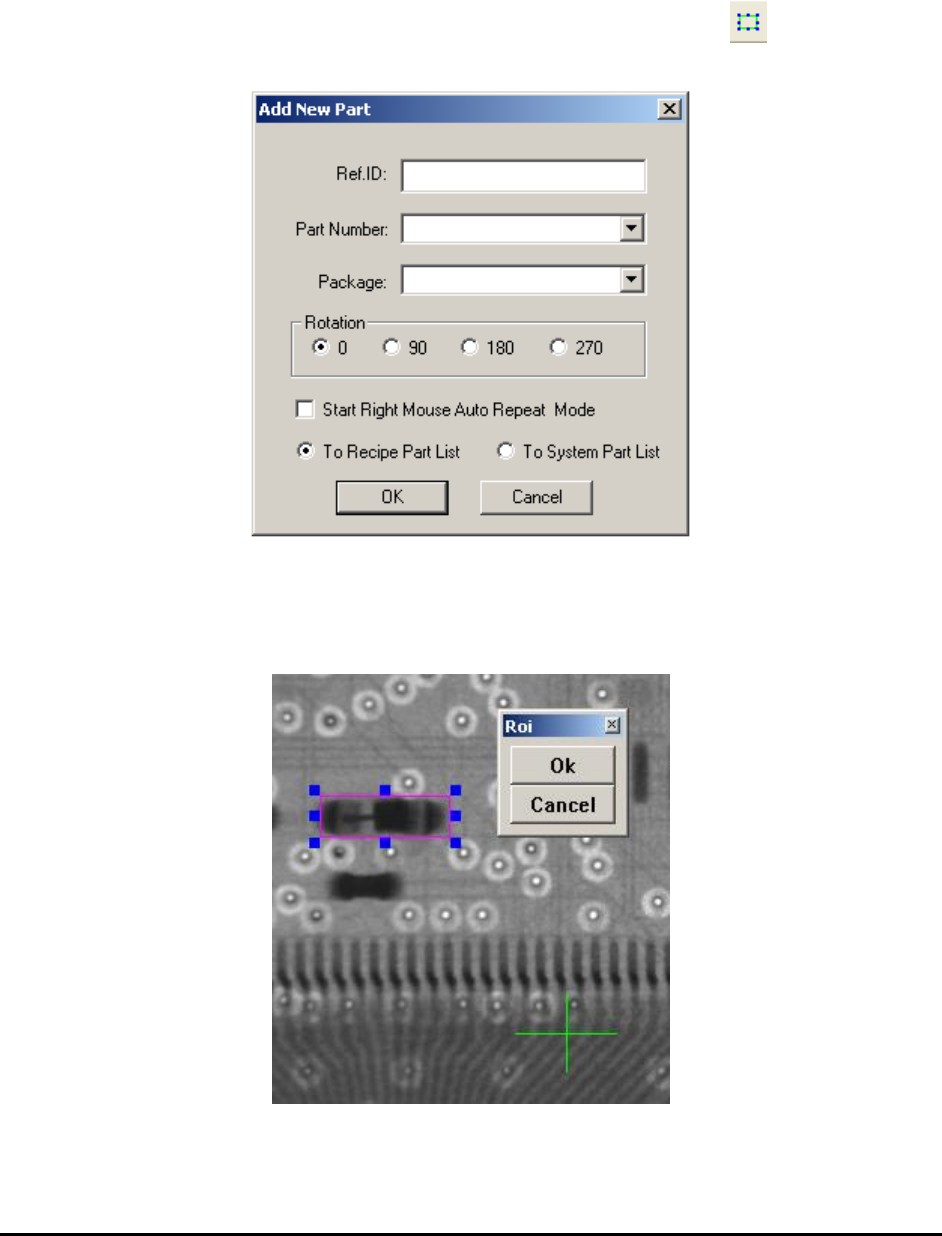

The Add New Part dialog displays.

Enter the Reference ID of the part to be trained, and select from the Part Number list if the part

is in the part library. If the part is not in the part library, but its package is in the package library,

select the corresponding package of the part. Specify part rotation by selecting from one of the

radio buttons in the Rotation group.

After pressing OK on the Add New Part dialog, specify the part’s exact location by overlaying a

region of interest box on the part.

8-2 Train Part without CAD data

The Start Right Mouse Auto Repeat Mode checkbox starts the auto repeat mode for adding

multiple parts. See 8.3 Auto Repeat Mode and Quick Marking Check for more detailed

information. The To Recipe Part List and To System Part List radio buttons select which part

list the newly created part is added to. Select the To Recipe Part List for all cases except during

the setup of SmartStart (refer to 17 - SmartStart).

Do not type in the new part number or package on the Add New Part dialog. The Part Number

and Package list boxes can only be used to select from existing part numbers and packages. To

create a new part number use the Edit Part Parameter dialog.

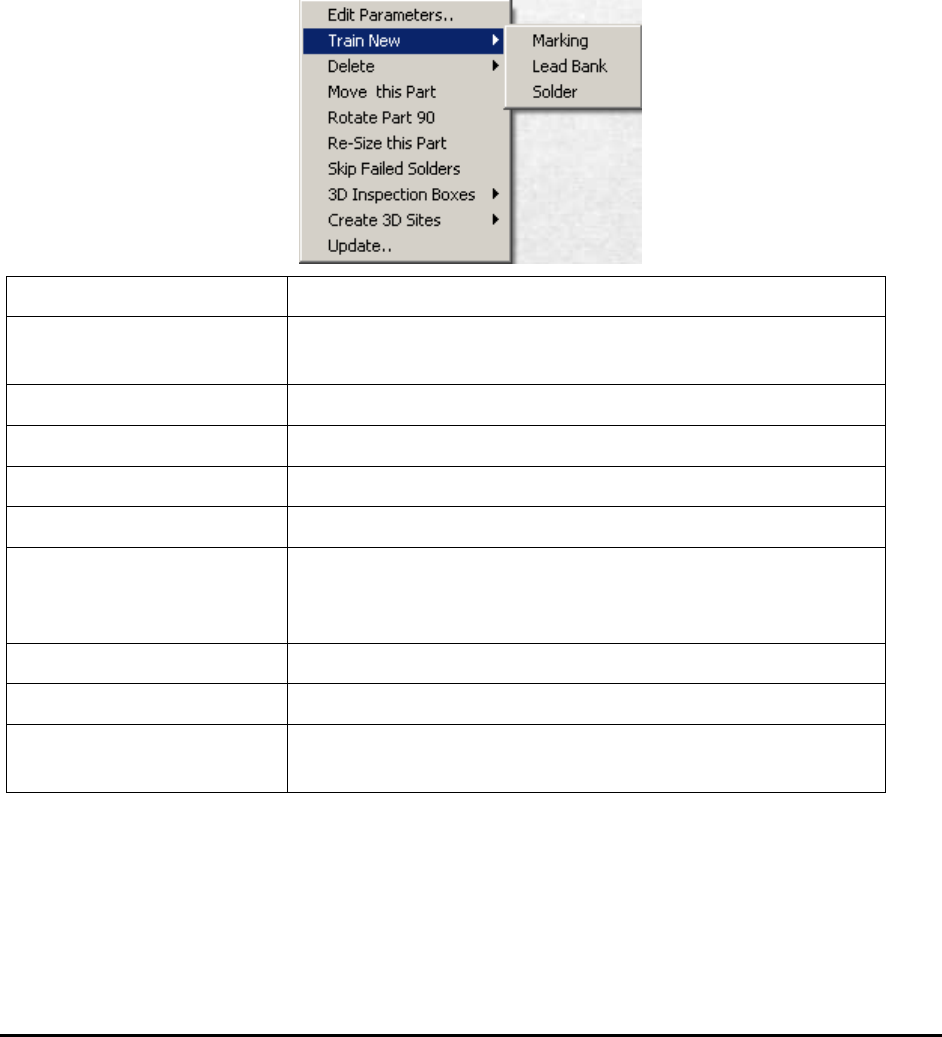

After the Once a part outline box (the purple box) is created around a part, a pop-up menu is

available by right clicking inside the part outline box.

Edit Parameters

Launches the Edit Part Parameters dialog. See Section 8.1.

Train New

Trains new mark, lead and solder inspection boxes for the

part.

Delete

Deletes the current part or some of the inspection boxes.

Move this Part

Moves the current part.

Rotate Part 90

Rotates the part 90 degree counter-clockwise

Resize this Part

Resizes the part outline of the part.

Skip Failed Solders

Skips the BGA balls which are blocked by the component

on the oppose side. Use only for X-ray BGA inspection on

YTX-6000 and X2/X3 AXI system.

3D Inspection Boxes

Operations related to 3D inspections.

Create 3D Sites

Create 3D sites for 3D inspections.

Update

Launches the Update Local Part Libraries dialog. See 8.1

Edit Part Parameters.

Train Part without CAD data 8-3

8.1 Edit Part Parameters

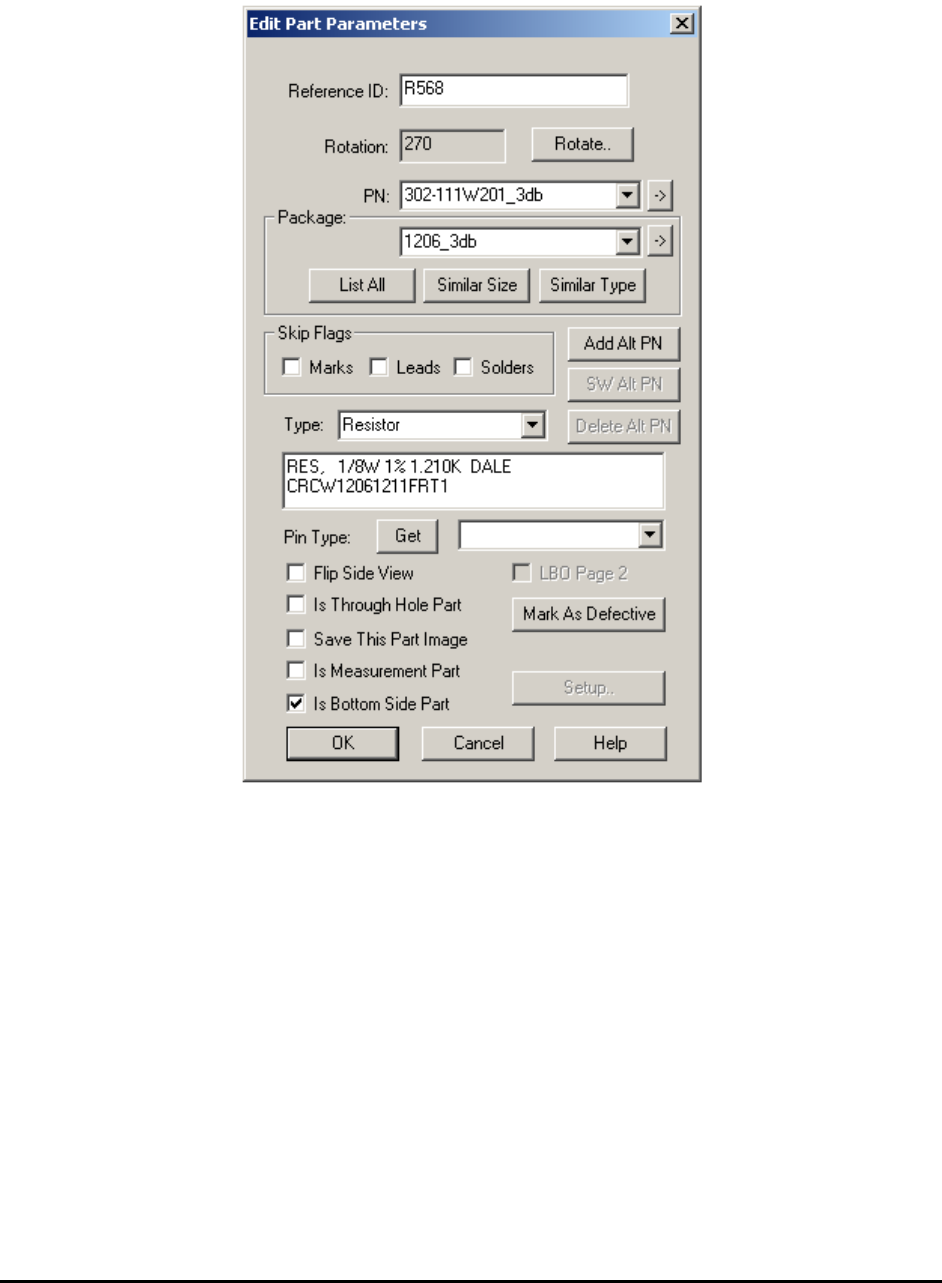

The Edit Part Parameters dialog allows you to customize part parameters.

The Reference ID shows the Reference designator of the part. Rotation indicates the part

rotation. When the Rotate button is pressed, the part rotates 90 degrees counter clockwise.

The PN list box displays the list of part number from the part library. To create a new part

number, type it into the box. Then use the part Update feature to add it into the part library.

The Package group contains one list box and three buttons. Use the list box to select a part

package. To enter an unlisted package, type it into the list box and then use the update feature to

add it into the package library. The package list can be quite long. Three buttons are provided to

make package selection easier. The List All button lists all the packages in the package library.

The Similar Size button lists only the packages that are approximately the same size as the

current part. The Similar Type button lists only the packages of the same or similar type.

The arrow buttons, on the right of the PN and Package name, will select the current PN or

package from the List View window. This allows easy access to the Walk Through functions for

the current PN or package.
