7. Select SWITCH ON.
The shutter motor switches on.
A commutation takes place the first time the motor is switched
on.
After the switching process is complete, the SWITCH ON button
is bordered in green.

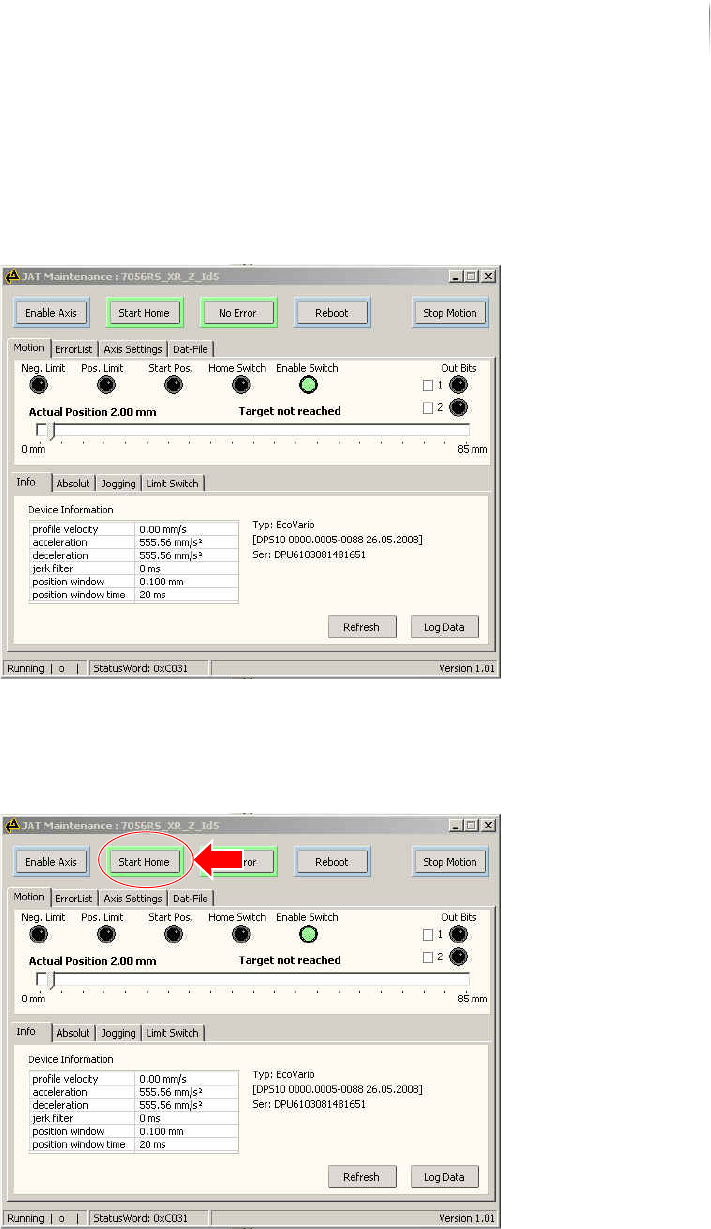

8. Select S
TART HOME.
A reference run is made.
After the referencing is complete, the START HOME button is
bordered in green.
9. In directory select the file
si_trans.conf.
Installation
First use
100
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

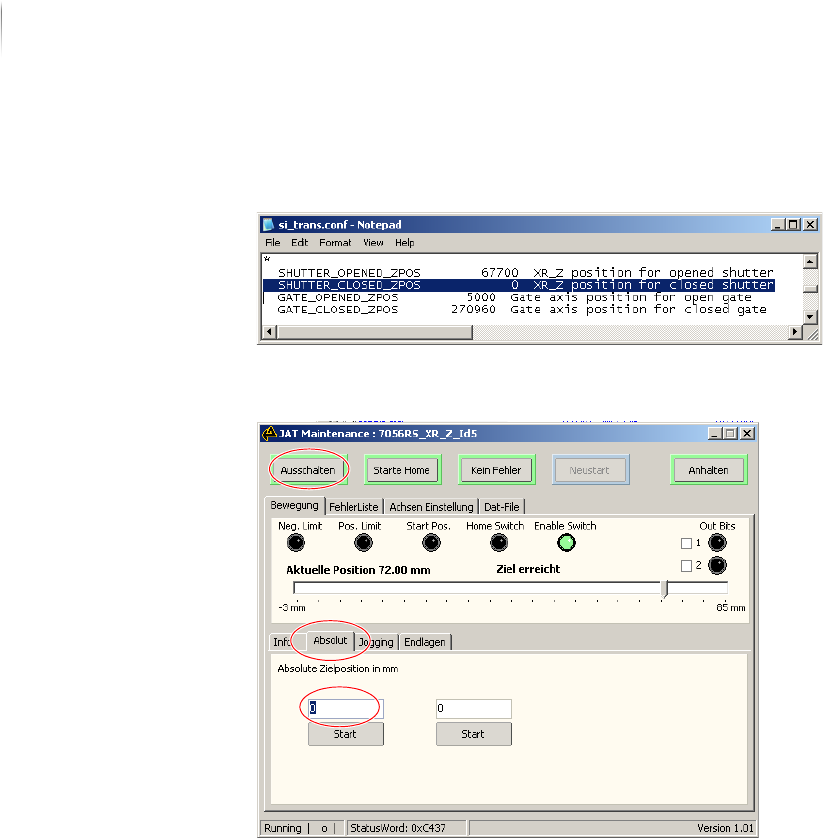

10.Read the value in parameter SHUTTER_CLOSED_ZPOS.
The value gives the position of the closed shutter in µm.
11.Enter the value from si_trans.conf in mm in JAT MAINTENANCE
Tool in the tab Movement - Absolute.
12.Confirm with Enter; click the button START.
The shutter is closed.
The Interlock connections in the program XRAYCLOSEDTUBE-
C
ONTROL are closed.
The shutter functioning is checked
Checking the Interlock linkage
Precondition: The white ON button does not light up?
Installation
First use
101
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Perform the following work steps:
Check that the Interlock connections are allocated, see „Inter-
lock linkage“ (Page 49).
The Interlock connections are allocated.
The white ON button lights up.
? The white ON button does not light up?
Devices connected by the Interlock are in the STOP mode
End the STOP mode of the connected devices.
The Interlock linkage is checked.
Checking the SMEMA protocol
After the inspection system is switched on, check the SMEMA/SV70
protocols, see .
Precondition: The inspection system is switched on.
The external components are switched on.
Checking
communication
with SMEMA N-
1A
Perform the following work steps:
1. Place a PCB in the transport conveyor of the external compo--
nent N-1A.

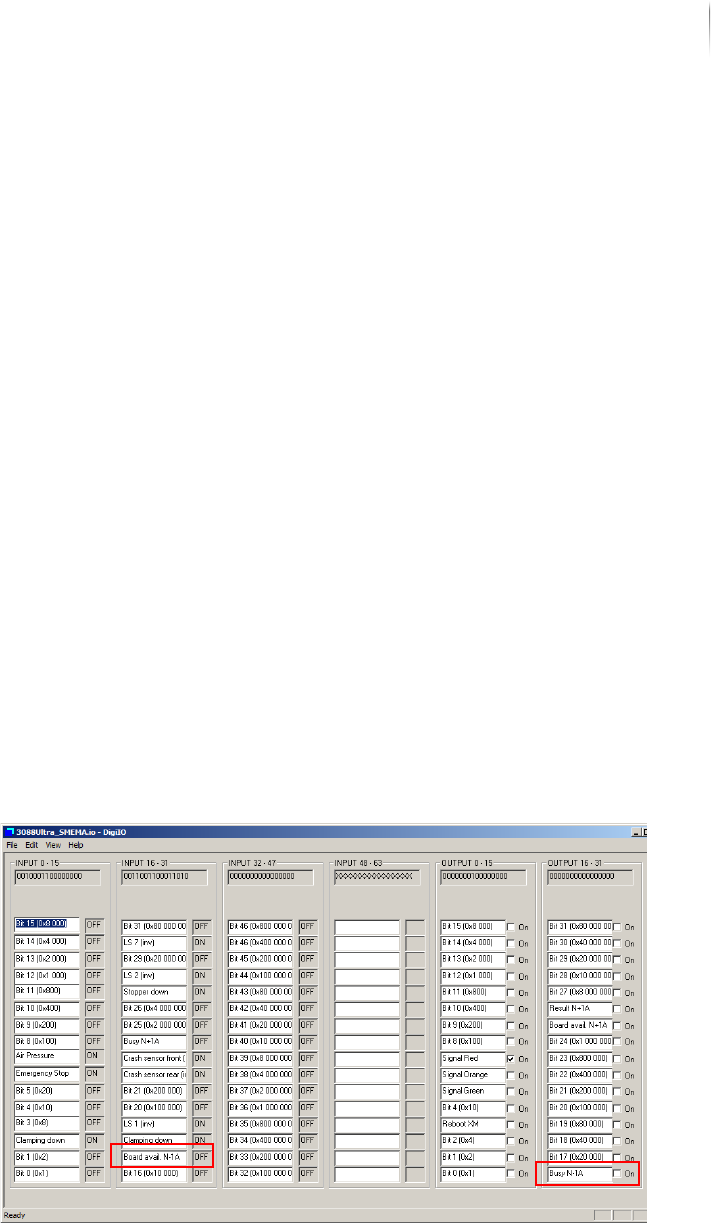

2. Click S
TART > MAINTENANCE PROGRAM > DIGIIO.
3. Set the output signal N -1A Busy to ON.
The input signal N-1A Board Available changes to ON.
The transport conveyor of the external component starts.
4. Remove the PCB from the transport conveyor of the external
component.
The input signal N-1A Board Available changes to OFF.
