Maintenanc e Lubricating the runner blocks - AXI 185 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a 7. Grease the tw o middle runner bl ocks through the funnel-type lube nippl…
Maintenance
Lubricating the runner blocks - AXI
184
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
3. Grease the two rear guide carriages (left) and the right guide
carriage on the Y-axis through the funnel grease nipples; use 3
cm
3
or 3 cm
3
grease.
4. Manually move the AXI transport track into the AOI section so
that it is adjacent the AOI transport track.
5. Stand in front of the inspection system.

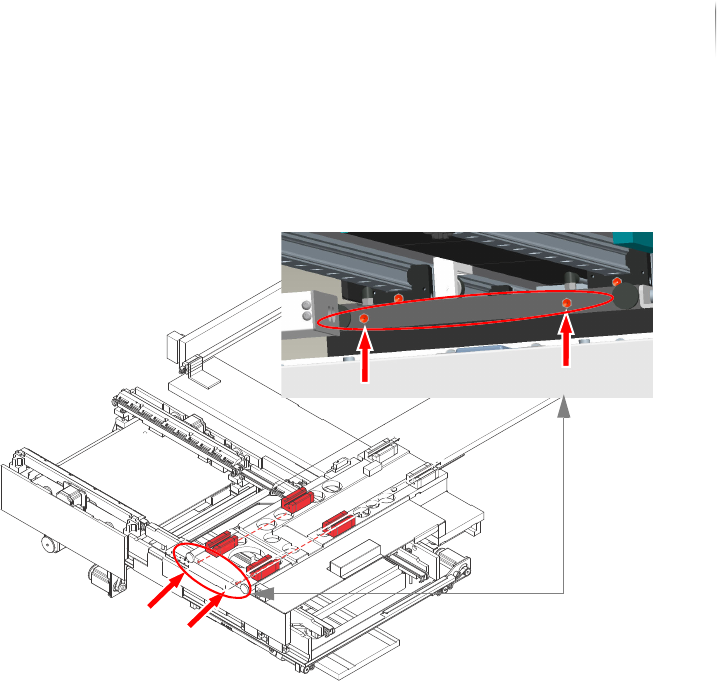

6. Grease the two front runner blocks through the funnel grease
nipples; use 1.4 cm
3
grease.
Maintenance
Lubricating the runner blocks - AXI
185
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
7. Grease the two middle runner blocks through the funnel-type
lube nipples, which are located beneath the two front runner
blocks.
8. Move the runner blocks back and forth with three double
strokes; the distance should be equal to at least three times
the length of a runner block.
9. Check if there is a visible grease layer on the guide rails.
The Y-axis guide carriages are greased.
The guide carriages in the AXI section are greased.
Maintenance
Lubricating the spindles and travel guides - AOI
186
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the spindles and travel guides
- AOI
This section describes the lubrication of spindles and guides for the
PCB clamping and width adjustment.
The following sections describe how to lubricate the spindles and
guides:
Transport track AOI
Lubricating spindles and guides
Transport track AOI
The following illustrations show the spindles and guides to be
greased in the AOI transport track.

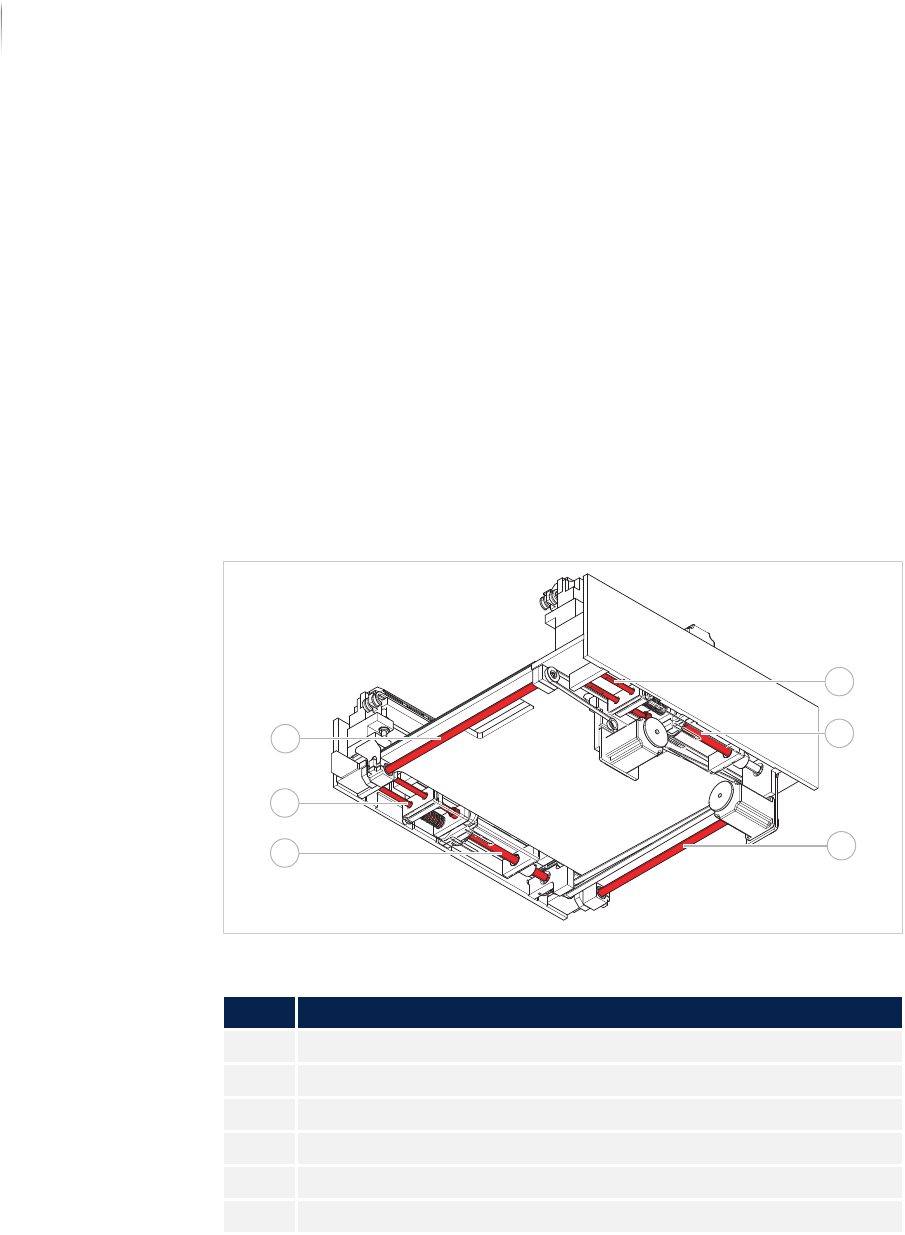

Transport track AOI, view from below
Lubricating spindles and guides
Required: Lubricating grease KP2K, NLGI class 2 according to DIN 51818
Brush
Legend
No. Name
1 Width adjustment spindle
2 Register drive guide
3 Register drive spindle
4 Width adjustment spindle
5 Register drive spindle
6 Register drive guide
1
3
5
4
2
6
