Maintenance
Exchanging the AOI transport belts
206
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

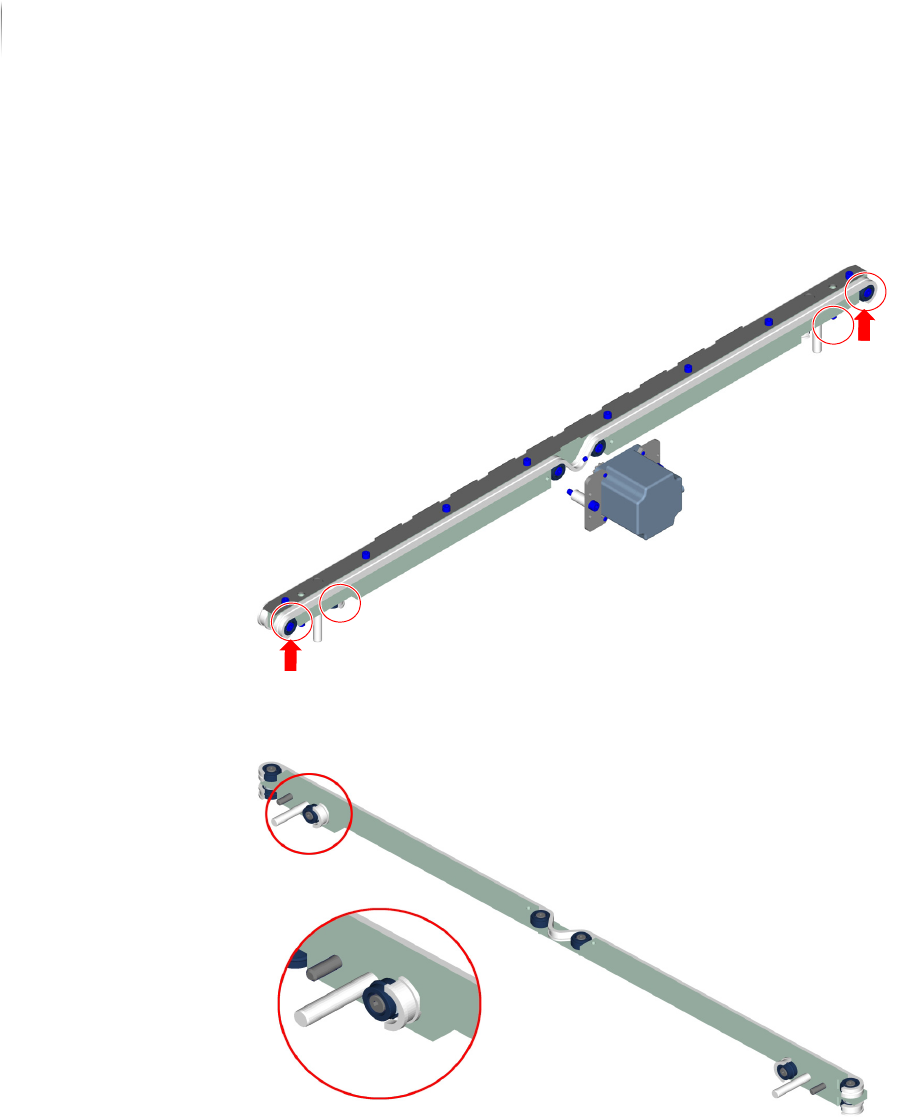

4. Span the belt around the outer guide rollers and the tensioning
rollers.
5. Tighten the belt with the belt tensioning roller; use the socket
wrench (2 mm Allen socket) to tighten the screw.
Maintenance
Exchanging the AOI transport belts
207
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

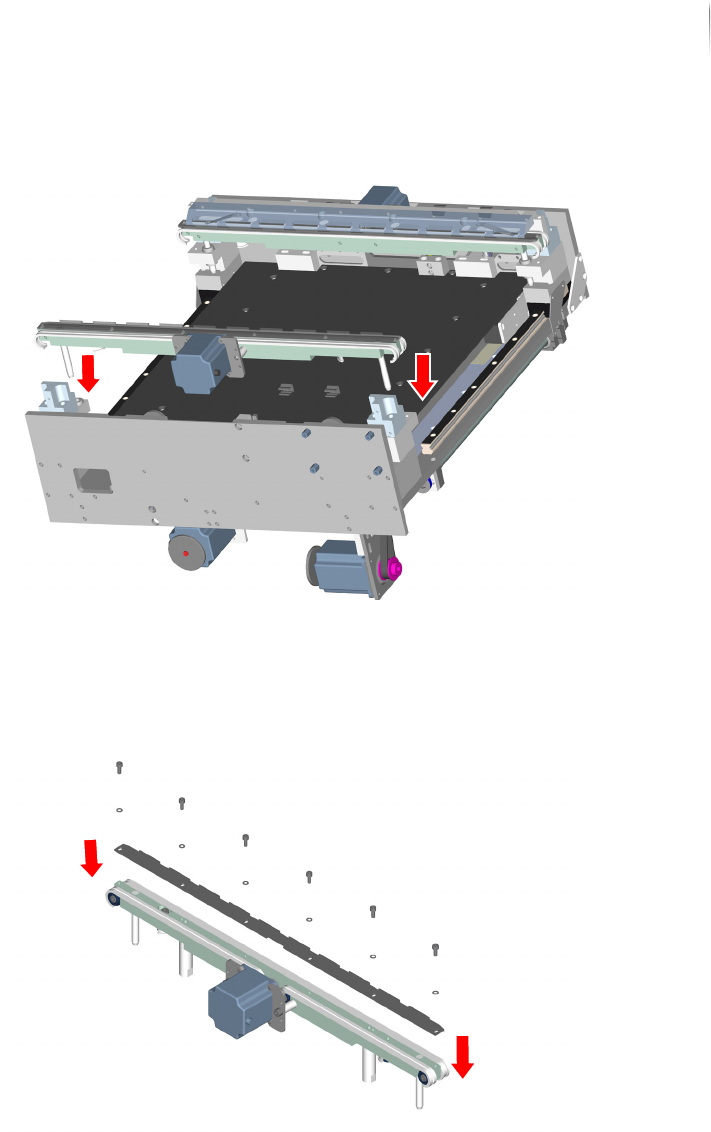

6. Install the clamping unit evenly, without tilting or bending.
7. Install the end stop guide rail by firmly tightening the 6 screws
with the socket wrench (3 mm Allen socket). Be absolutely
certain that the PCB overlap width value measured during the
disassembly is the same for the assembly.
Maintenance
Exchanging the AOI transport belts
208
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
8. Mount the traverse by firmly tightening the 4 screws with the
socket wrench (5 mm Allen socket).
The traverse must lie against the end stop.
9. Make sure the end stop rail guide catches on the traverse
correctly.
10.Repeat steps 1 to 9 for the transport belts on the movable
transport plate.
