Software
Automatic mode
120
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Defect images
This tab monitors the current inspection and contains the following
elements:
File tab DEFECT PICTURES
All the captured defect images are displayed in the field DEFECT
P
ICTURES. Clicking on a defect image displays the corresponding
defect details. See „Field D
EFECT DETAILS“ (Page 121)
Description of the fields
No. Name Description
1 DEFECT PICTURES Displays all the captured defect
images. See „Defect images“ (Page
120)
2 DEFECT DETAILS Displays important information for the
selected defect image. See „Field
D
EFECT DETAILS“ (Page 121)
3 ANALYSIS PICTURES Displays all analyzed defect images for
which more settings are available. See
„Field A
NALYSIS IMAGES“ (Page 122)
1
3
2
Software
Automatic mode
121
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Field DEFECT PICTURES
Additional information for the selected defect images is displayed
in the field D
EFECT DETAILS.
Field DEFECT DETAILS
Software
Automatic mode
122
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

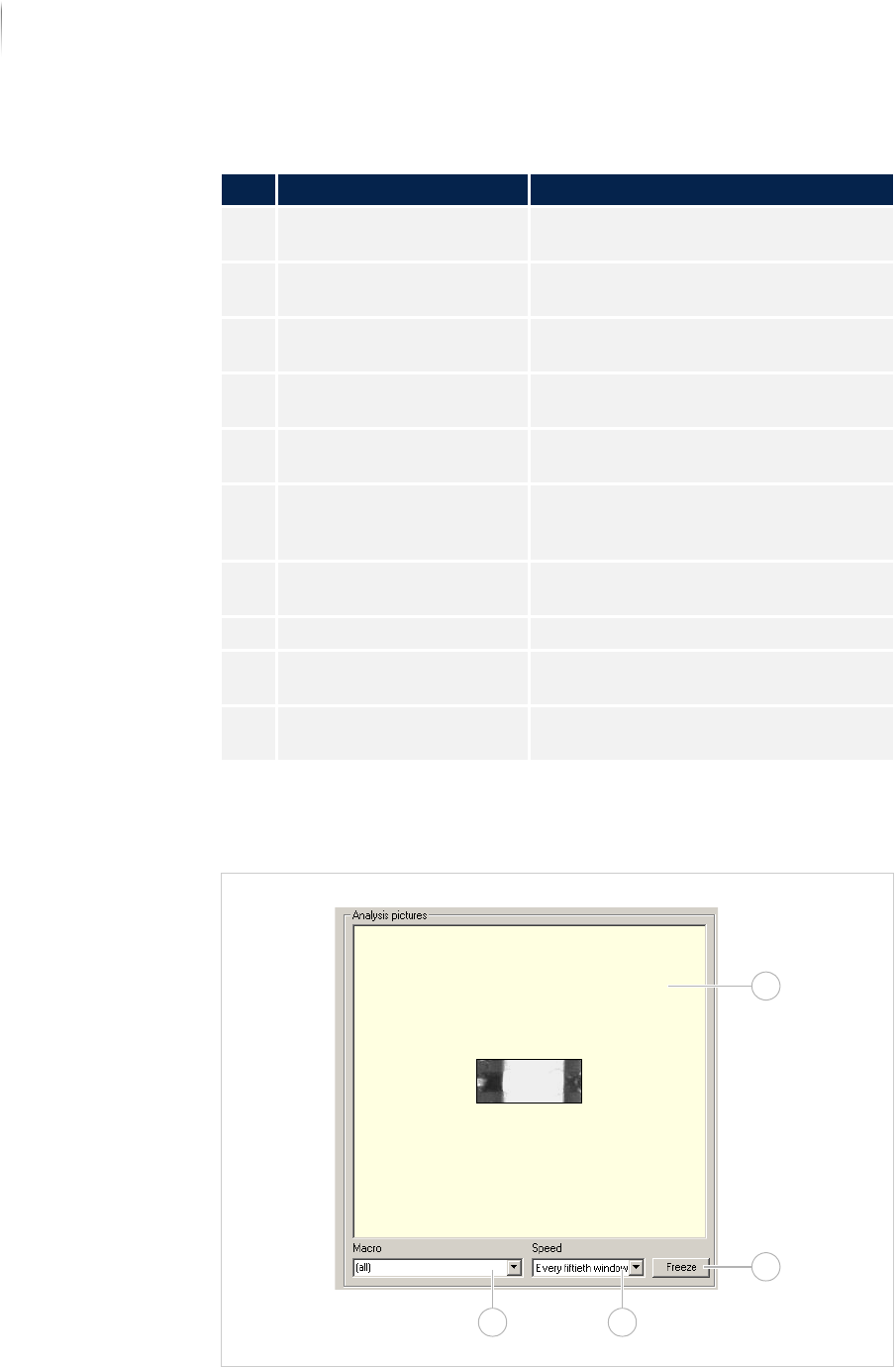

The field ANALYSIS PICTURES displays the individual defect images
for which more settings are available.
Field ANALYSIS IMAGES
Description of the field "Defect details"
No. Name Description
1 PATTERN Displays the name of the inspection
pattern.
2 IDENTIFICATION Displays the ID of the corresponding
component.
3 CODE Displays the component article
number.
4 MACRO NAME Displays the name of the macro the
component is inspected with.
5 AOI RESULT Displays the result from the inspection
system.
6 ERROR TEXT Text that can be transferred to the
verification station, where it can be
modified.
7 ANALYSIS Displays the analysis process being
used.
8 WINDOW Displays the window number.
9 CAMERA Displays the camera that captured the
image.
10 ILLUMINATION Displays the illumination the image
was captured with.
1
2
34
