Field PROGRAM INFORMATION
Description of the field "Program information"
No. Name Value Description
1 PROGRAM INFORMA-
TION
Contains information about the inspection
program.
COMPO-
NENTS
(FID/BBS)
Displays the number of fiducials
and bad board sensors.
COMPO-
NENTS
(OTHER)
Displays the number of compo-
nents, without the fiducials and
bad board sensors.
COMPO-
NENTS
Displays the entire number of
components (fiducials and bad
board sensors + components).
WINDOW
(F
ENSTER)
(REF/BBS)
Displays the number of inspec-
tion windows for fiducials and
bad board sensors.
WINDOW
(F
ENSTER)
(ORTH)
Displays the number of windows
to be inspected with orthogonal
cameras.
WINDOW
(FENSTER)
(ANGL)
Displays the number of windows
to be inspected with angled
cameras.
WINDOW
(FENSTER)
(XRAY)
Displays the number of windows
to be inspected with X-ray.
1
Software
Automatic mode
137
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Viscom infor-
mation

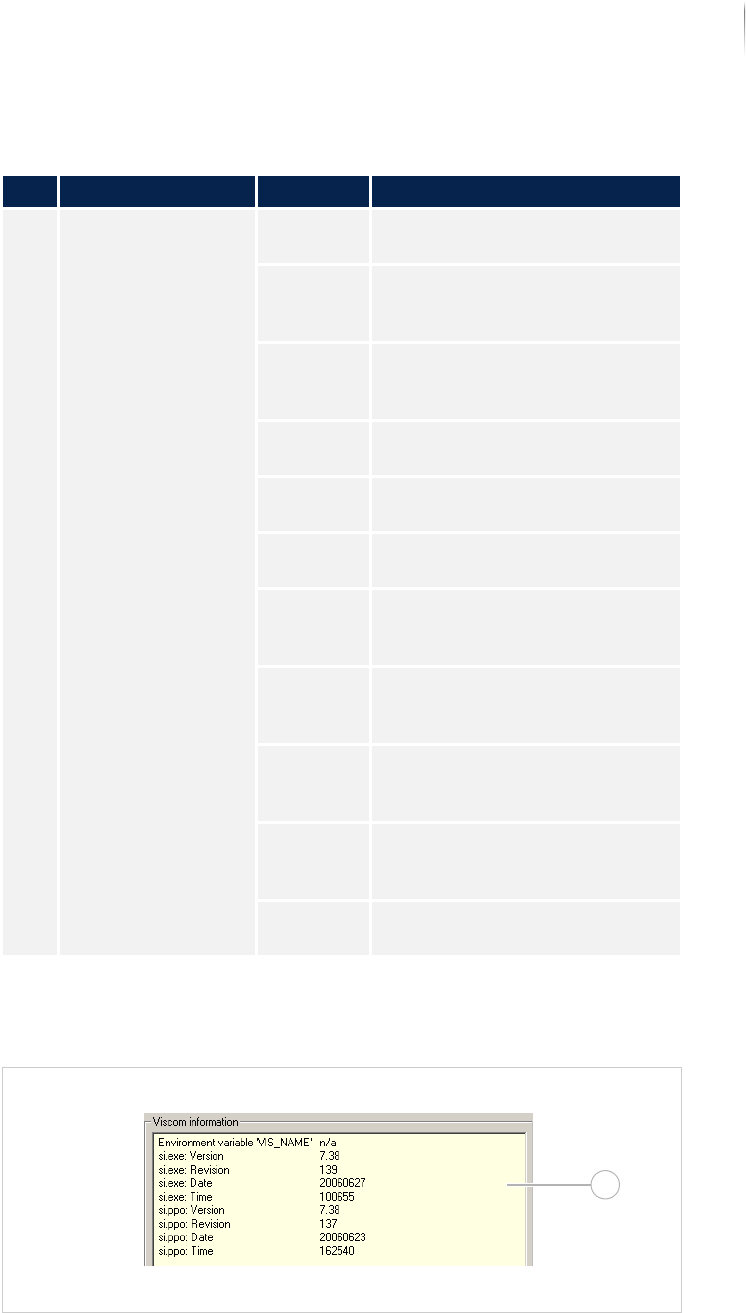

The field VISCOM INFORMATION contains the most important infor-
mation about the Viscom software.
Field VISCOM INFORMATION
WINDOW Displays the number of all
windows to be inspected.
FRAMES
(FID/BBS)
Displays the number of the
captured images for the fidu-
cials and bad board sensors.
FRAMES
(ORTH)
Displays the number of captured
images for the orthogonal
cameras.
FRAMES
(ANGL)
Displays the number of captured
images for the angled cameras.
FRAMES
(XRAY)
Displays the number of captured
X-ray images.
FRAMES Displays the number of all
captured images.
POSITIONS
(FID/BBS)
Displays the number of camera
positions for fiducials and bad
board sensors.
POSITIONS
(ORTH)
Displays the number of camera
positions for the orthogonal
cameras.
POSITIONS
(ANGL)
Displays the number of camera
positions for the angled
cameras.
POSITIONS
(XRAY)
Displays the number of camera
positions for the X-ray image
acquisition.
POSITIONS Displays the number of all the
camera positions.
Description of the field "Program information"
No. Name Value Description
1
Software
Automatic mode
138
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
System infor-
mation

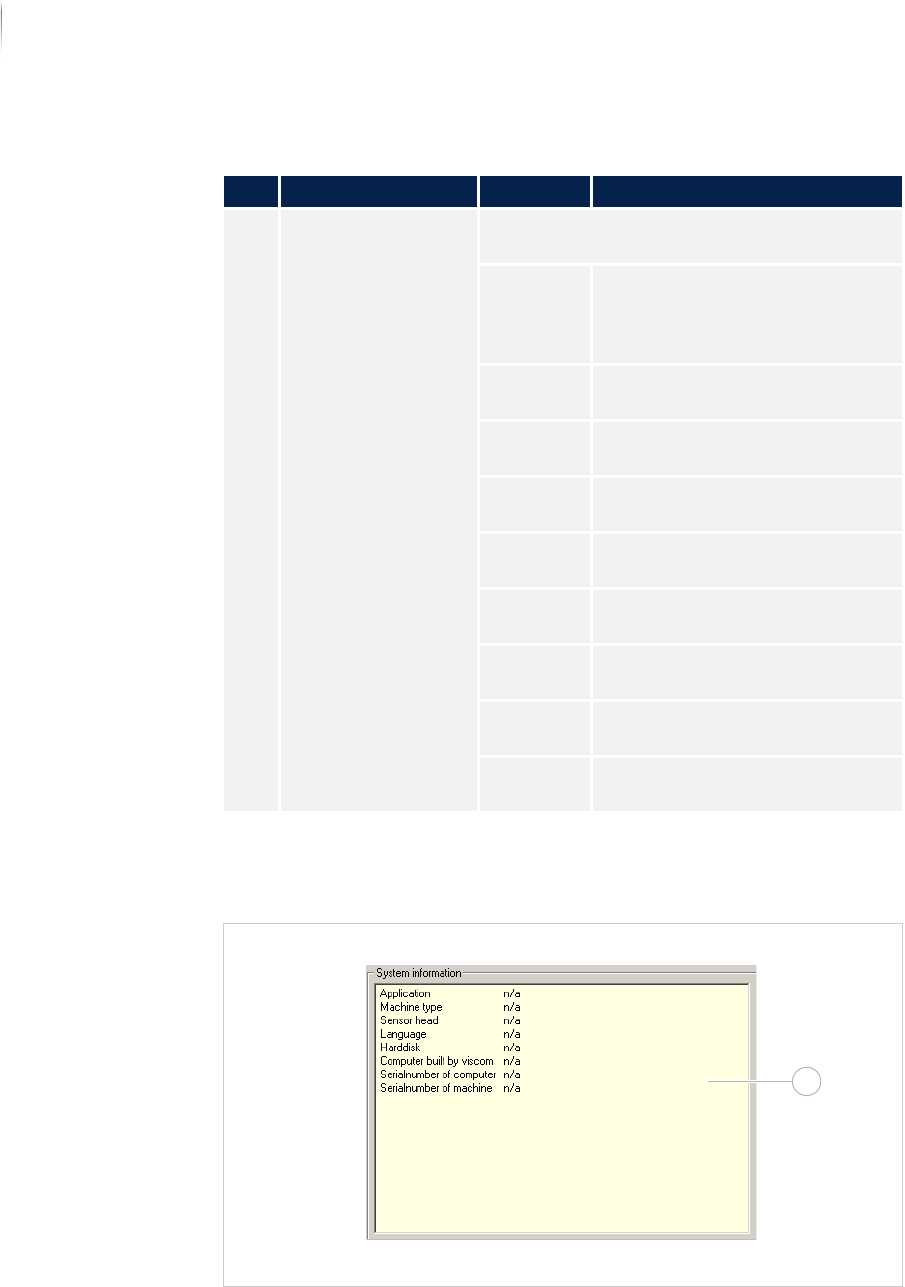

The field SYSTEM INFORMATION contains the most important infor-
mation about the inspection system.
Field SYSTEM-INFORMATION
Description of the field "Viscom information"
No. Name Value Description
1 VISCOM INFORMATION Contains information about the Viscom soft-
ware.
ENVIRON-
MENT VARI-
ABLE
VIS_NAME
Displays the inspection system
name.
SI.EXE:
VERSION
Displays the version of the
Viscom software.
SI.EXE:
R
EVISION
Displays the revision number of
the Viscom software.
SI.EXE:
D
ATE
Displays the generation date of
the Viscom software.
SI.EXE:
T
IME
Displays the clock time the
Viscom software was generated.
SI.PPO:
V
ERSION
Displays the version of the
si.ppo.
SI.PPO:
REVISION
Displays the revision number of
the si.ppo
SI.PPO:
DATE
Displays the generation date of
the si.ppo.
SI.PPO:
T
IME
Displays the clock time the
Viscom software was generated.
