Installation
First use
95
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
5. Under START MENU > MAINTENANCE PROGRAM, select the program
JAT MAINTENANCE.

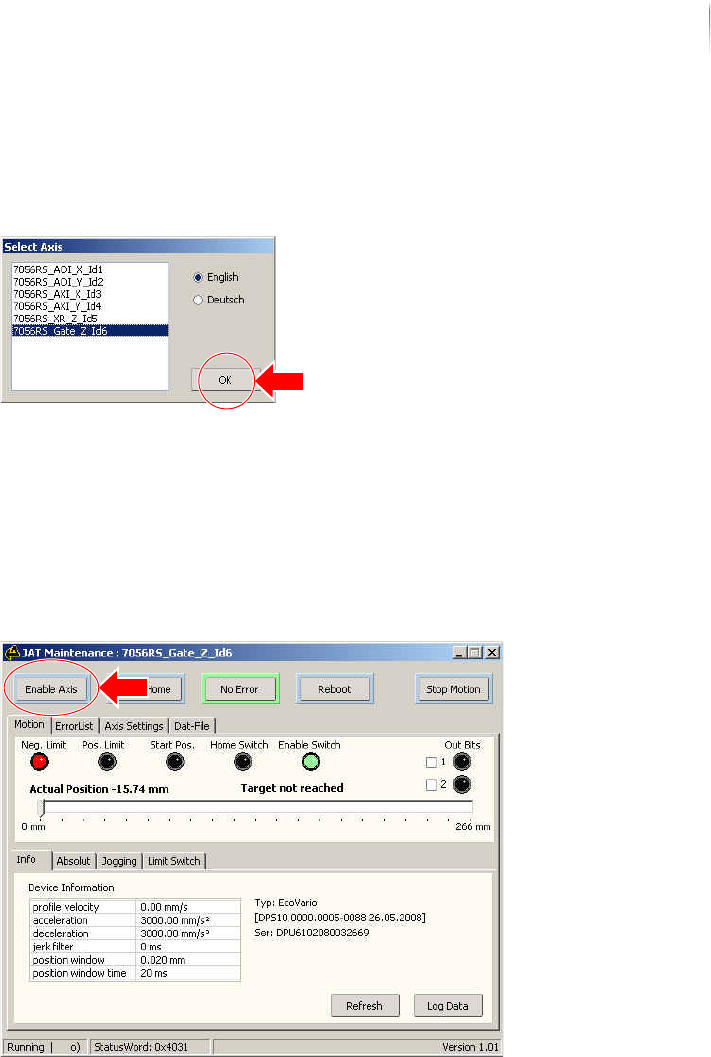

The dialog SELECT AXES opens.
6. In the menu, select the lift gate from (G
ATE_Z); confirm with
OK.
The program JAT MAINTENANCE opens.
7. Select S
WITCH ON.
The lift gate motor switches on.
A commutation takes place the first time the motor is switched
on.
After the switching process is complete, the SWITCH ON button
is bordered in green.
Installation
First use
96
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
8. Then, select START HOME.
A reference run is made.
After the referencing is complete, the START HOME button is
bordered in green.
9. In directory select the file
si_trans.conf.
10.Read the value in parameter GATE_CLOSED_ZPOS.
The value gives the position of the closed lift gate in µm.
Installation
First use
97
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
11.Enter the value from si_trans.conf in mm in JAT MAINTENANCE
Tool in the tab Movement - Absolute.
12.Confirm with Enter; click the button START.
The lift gate is closed.
The Interlock connections in the program XRAYCLOSEDTUBE-
C
ONTROL are closed.
The lift gate functioning is checked
Checking the
shutter func-
tioning
Precondition: The inspection system is switched on.
The AXI transport track must be in the AXI section.
Perform the following work steps:
1. End the Viscom software, see „Ending the Viscom software“
(Page 158).
2. Actuate the STOP mode, see „Actuating the STOP mode“ (Page
149).
The shutter gate is opened.
3. Cancel the STOP mode, see „Ending the STOP mode“ (Page
150).
