Maintena nce Exchanging the AOI transport belts 202 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a 4. Measure the PCB overlap width and note down the value for installing the …
Maintenance
Exchanging the AOI transport belts
201
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

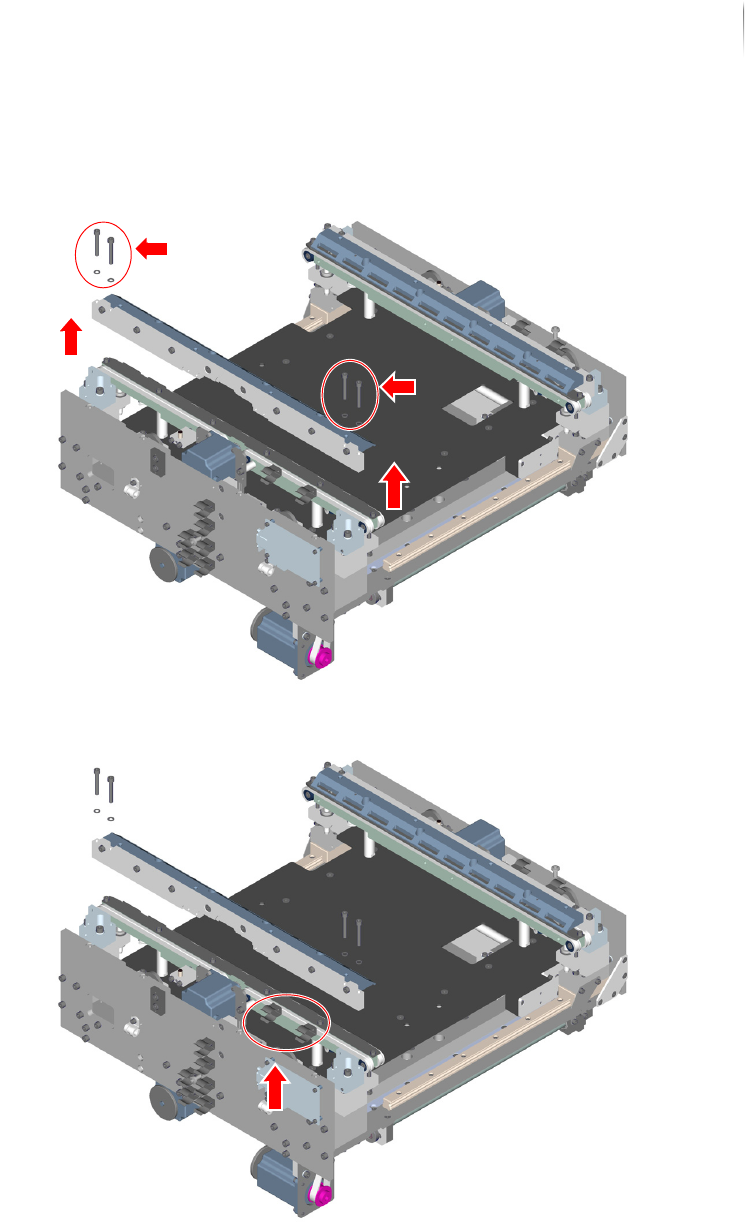

2. Use the socket wrench (5 mm Allen socket) to remove the 4
screws from the traverse.
3. Remove the motor cable from its clips.
Remove the traverse and put it aside.
Maintenance
Exchanging the AOI transport belts
202
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

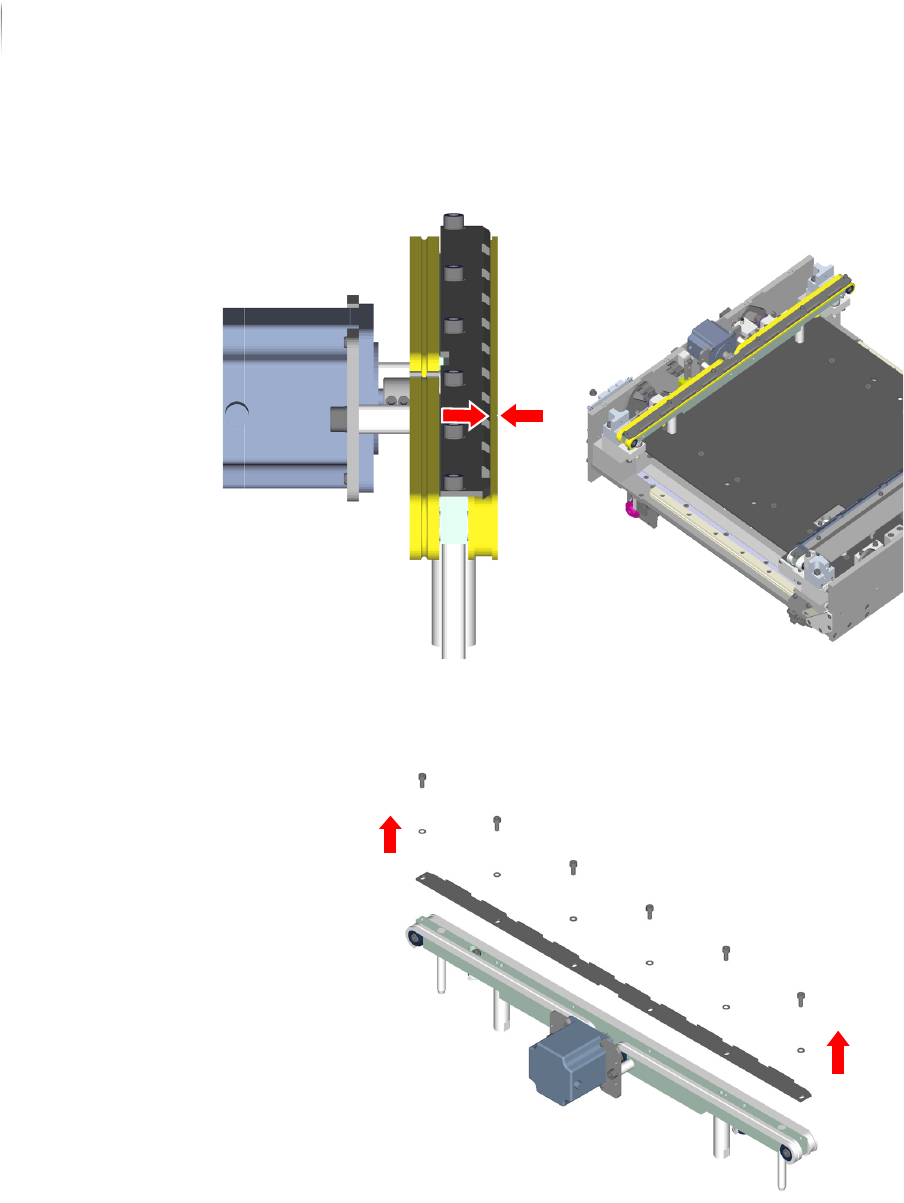

4. Measure the PCB overlap width and note down the value for
installing the new transport belt.
5. Use the socket wrench (3 mm Allen socket) to remove the 6
screws from the end stop guide rail.
Now remove the end stop guide rail and put it aside.
Maintenance
Exchanging the AOI transport belts
203
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

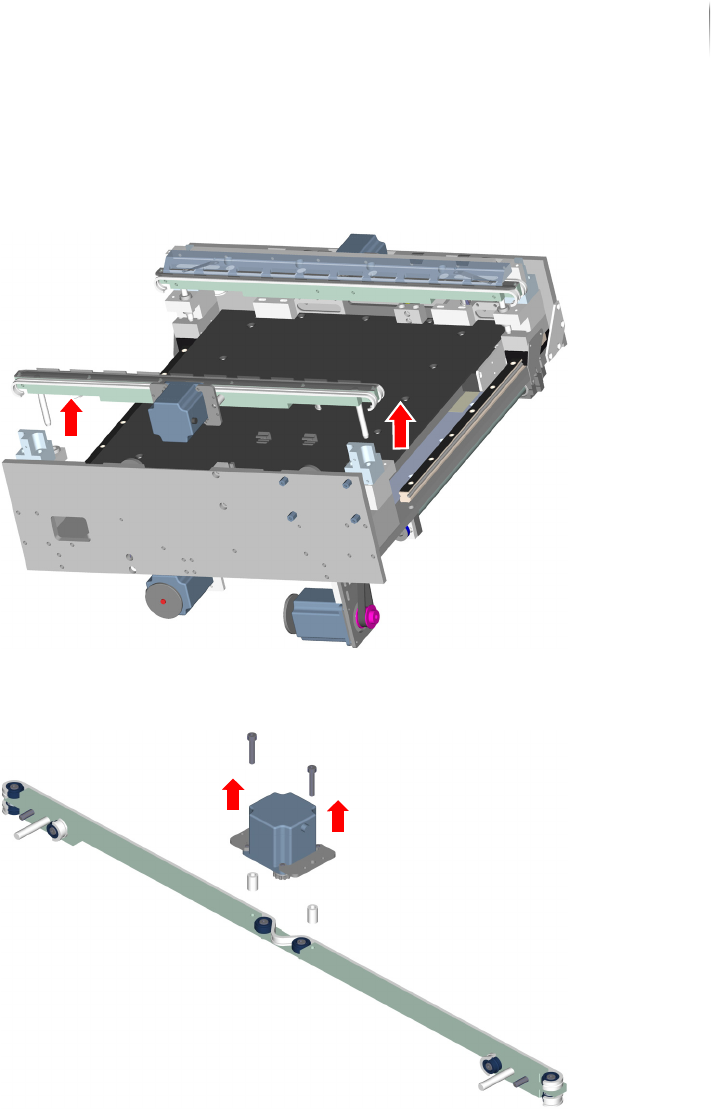

6. Evenly remove the clamping unit without tilting or bending it;
carefully set it on the transport track. When doing so, protect
the motor cable from damage.
7. Use the socket wrench (4 mm Allen socket) to remove the drive
motor (2 screws).
Remove the transport belt.
8. Repeat steps 1 to 7 for the transport belts on the movable
transport plate.
The transport belts are removed.
