Appropriate use
The inspection system may only be used according to its intended
function. Any other use or extension of this function is inappro--
priate. Inappropriate use may lead to personal injury or property
damage.
This section covers the following themes:
Designated use (Page 28)
Inappropriate use (Page 28)
Designated use
The inspection system is intended for the optical and X-ray inspec-
tion of flat printed circuit boards assembled on one or both sides,
after the reflow or wave solder process.
Designated use also includes:
Complete reading and observance of the operation manual and
the transport manual.
Performance of required maintenance work.
It is especially important that no independent modifications of or
additions to the interior of the system or its individual components
be made.
Inappropriate use
Any use of the inspection system outside the previously noted
application areas or outside the operating conditions as described
in the documentation and the technical data provided is considered
inappropriate use.
The Viscom AG assumes no responsibility for any damages
resulting from inappropriate use.
The system is not designed for manual loading. It must be loaded
by suitable infeed components (such as transport conveyors)
which are covered to prevent manual access.
Product description
General view
29
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
General view
The general view gives an overall look at the main components of
the inspection system.
The overall view is divided into partial views:
Front view (Page 29)
System components, front view (Page 30)
Rear view (Page 31)
System components, top rear view (Page 32)
System components, bottom rear view (Page 32)
Front view

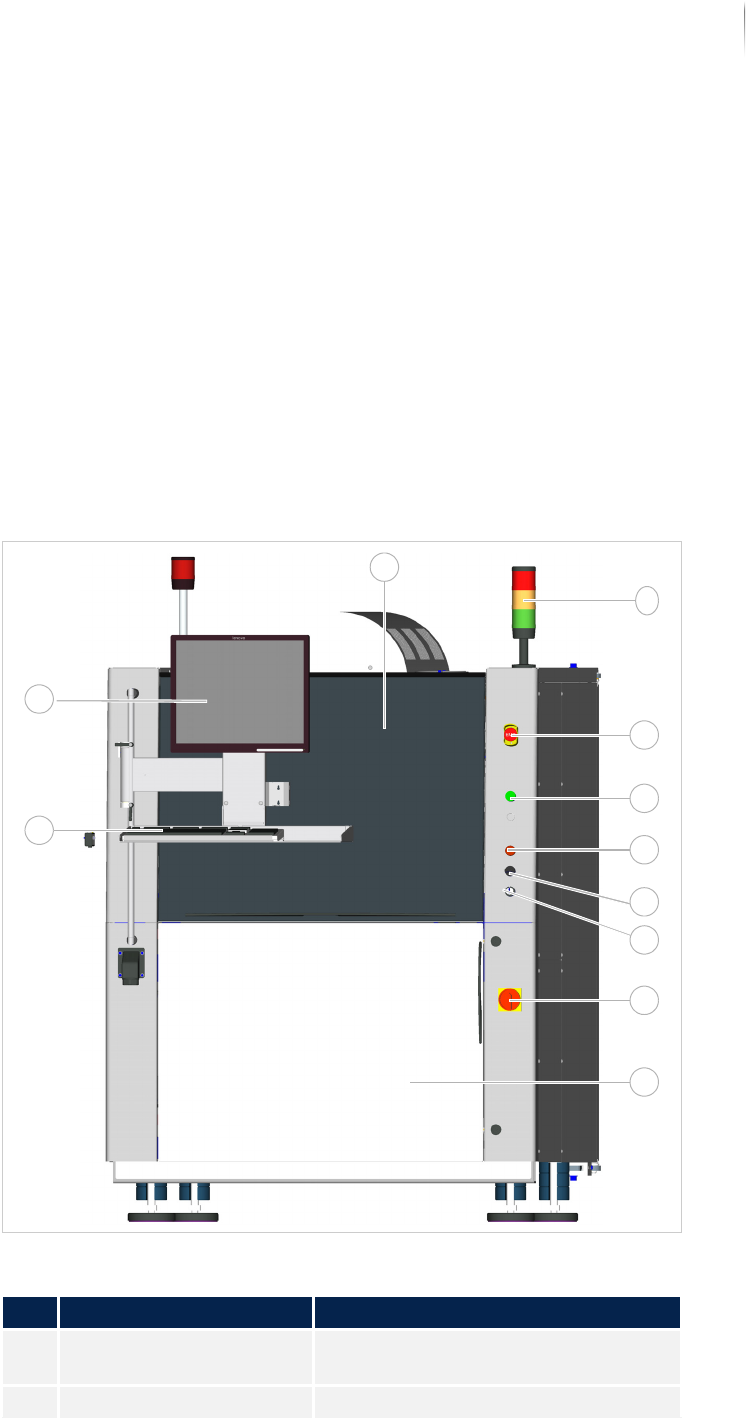

Inspection system: front view
Legend
No. Name Description
1 Front lift door See „Protective barrier safety features“
(Page 53)
2 Signal lamp See „Signal lamp“ (Page 35)
4
11
10
6
5
7
1
2
3
8
9
Product description
General view
30
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
System components, front view

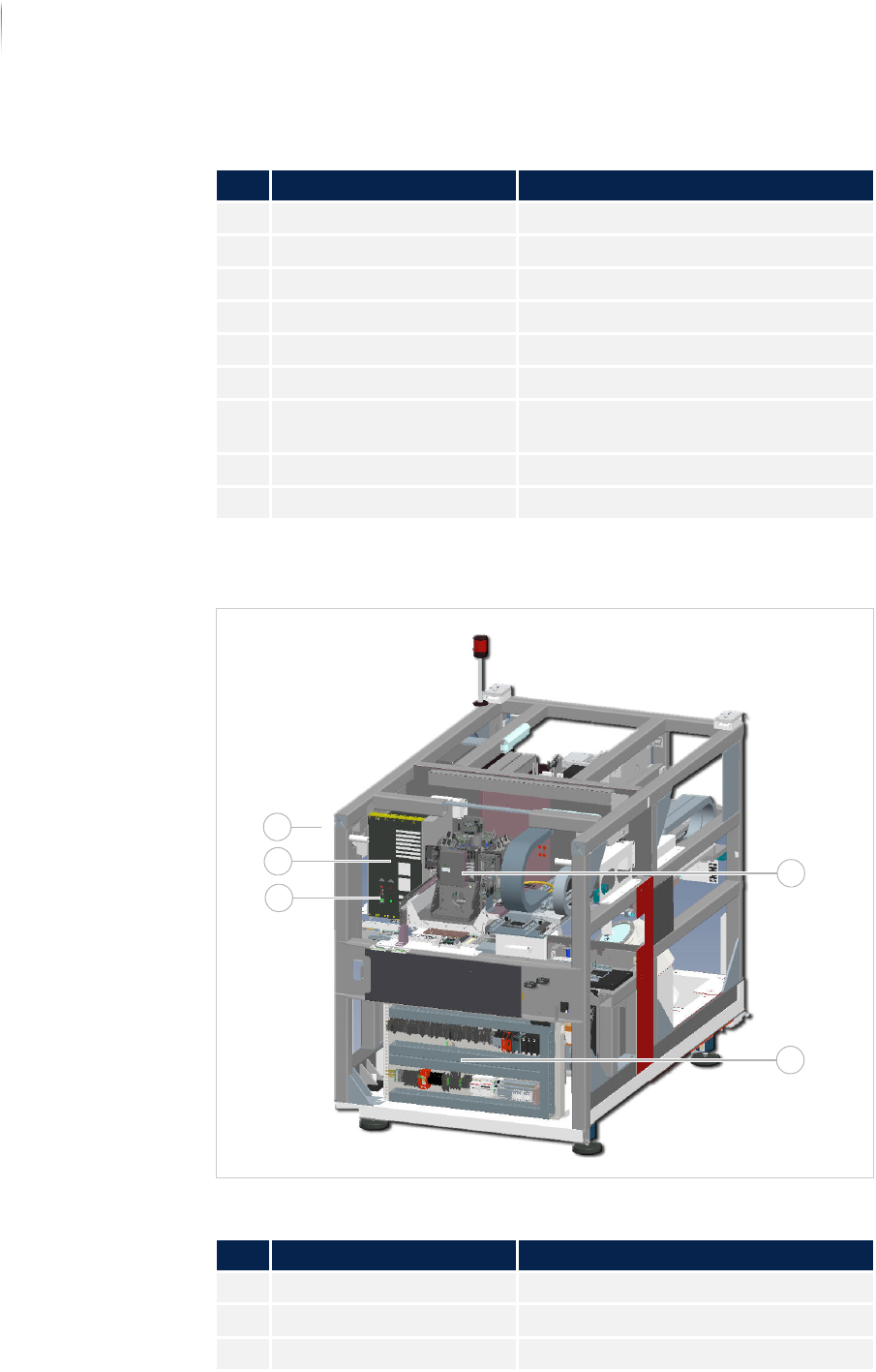

Inspection system components, front side
3 EMERGENCY STOP button See „EMERGENCY STOP“ (Page 51)
4 ON button See „ON button“ (Page 34)
5 X-ray warning lamp See „X-ray warning lamp“ (Page 36)
6 Light switch See „Light switch“ (Page 34)
7 Key switch See „Key switch“ (Page 53)
8 Power toggle switch See „Power toggle switch“ (Page 34)
9 Front door See „System components, front view“
(Page 30)
10 Keyboard and Mouse See „Keyboard and Mouse“ (Page 34)
11 Monitor See „Monitor“ (Page 34)
Legend
No. Name Description
1 System computer1 See „System computer“ (Page 47)
2 UPS 1 See „UPS“ (Page 37)
3 UPS 2 See „UPS“ (Page 37)
Legend (Forts.)
No. Name Description
1
2
3
5
4
