Software Automatic mo de 134 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a Event log The field E VE NT L OG co-writes all entries of the status line of the SI software. Field…
Software
Automatic mode
133
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Transport
status
The field TRANSPORT STATUS displays the current transport status of
the inspection system.

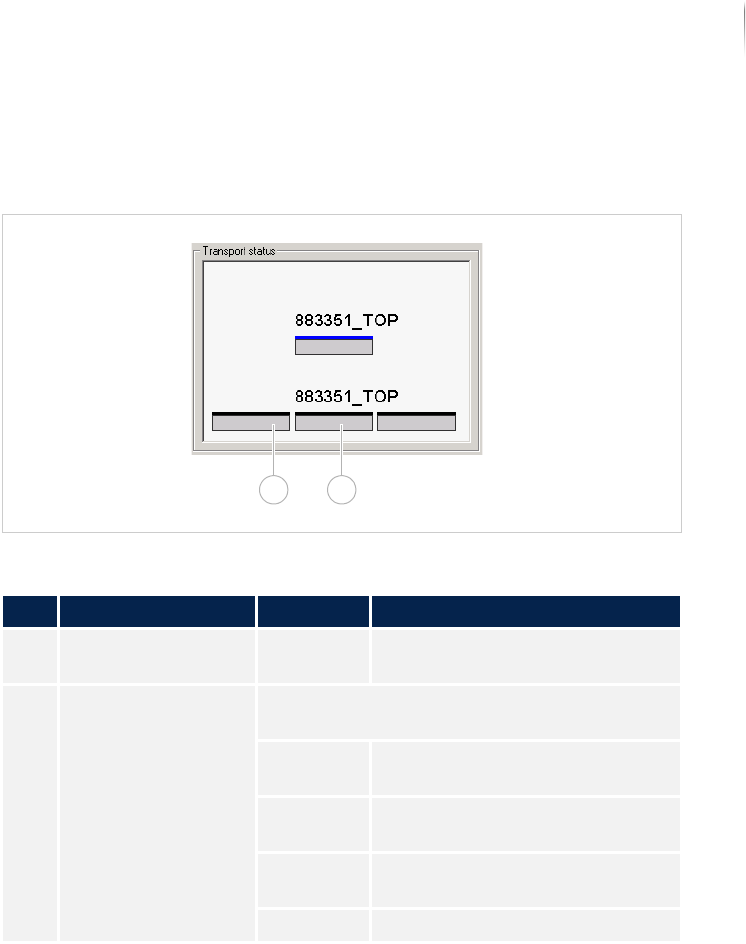

Field TRANSPORT STATUS
Description of the field "Transport status"
No. Name Value Description
1 Printed circuit board - Displays the position of the PCB
in the transport system.
2 Transport status Displays the current transport status of the
inspection system.
Red PCB with defects in the transport
system.
green PCB without defects in the trans-
port system.
blue Uninspected PCB in the transport
system.
Black No PCB in the transport system.
1 2
Software
Automatic mode
134
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Event log
The field EVENT LOG co-writes all entries of the status line of the SI
software.
Field EVENT LOG
System info
All relevant information for the operation of the SI system is found
in the file tab S
YSTEM INFO.
The following elements are described:
P
ROGRAM INFORMATION (Page 135)
V
ISCOM INFORMATION (Page 137)
S
YSTEM INFORMATION (Page 138)
W
INDOWS INFORMATION (Page 139)
Description of the field "Event log"
No. Name Description
1 Entries Co-writes all entries of the status line.
2 FREEZE Holds the display. Co-writing continues
in the background.
2
1
Software
Automatic mode
135
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Overview
File tab SYSTEM INFO
Program
information
The field PROGRAM INFORMATION contains the most important infor-
mation about the currently loaded inspection program.
Description of the fields
No. Name Description
1 PROGRAM INFORMATION Contains information about the inspec-
tion program.
2 VISCOM INFORMATION Contains information about the Viscom
software.
3 SYSTEM INFORMATION Contains information about the inspec-
tion system.
4 WINDOWS INFORMATION Contains information about the oper-
ating system.
1 2 43
