Packing
Packing the inspection system
243
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
4. Set the inspection system in a horizontal position as indicated
by the level.
5. Tighten the lock nuts well to secure the system feet.
The system feet are set.
Fastening the inspection system
To prevent damage to the inspection system during transport,
fasten it to the wooden pallet. This chapter describes how to fasten
the inspection system, step by step.
This section covers the following themes:
Inspection system fastening points (Page 243)
Fastening the inspection system to the pallet (Page 244)
Inspection
system
fastening
points
The inspection system is fastened to the pallet at its outer four
feet. The following graphic shows the four fastening points:

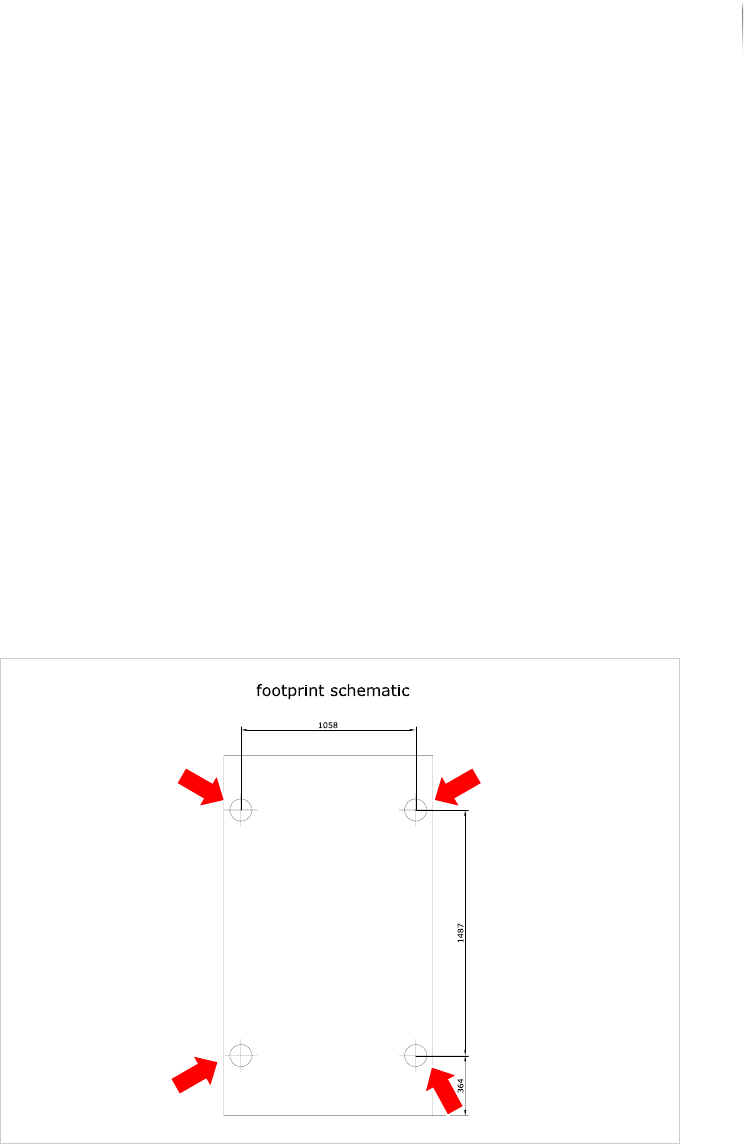

Schematic diagram, system feet
Four transport clamps with two screws each are used to secure the
inspection system to the pallet.
Packing
Packing the inspection system
244
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

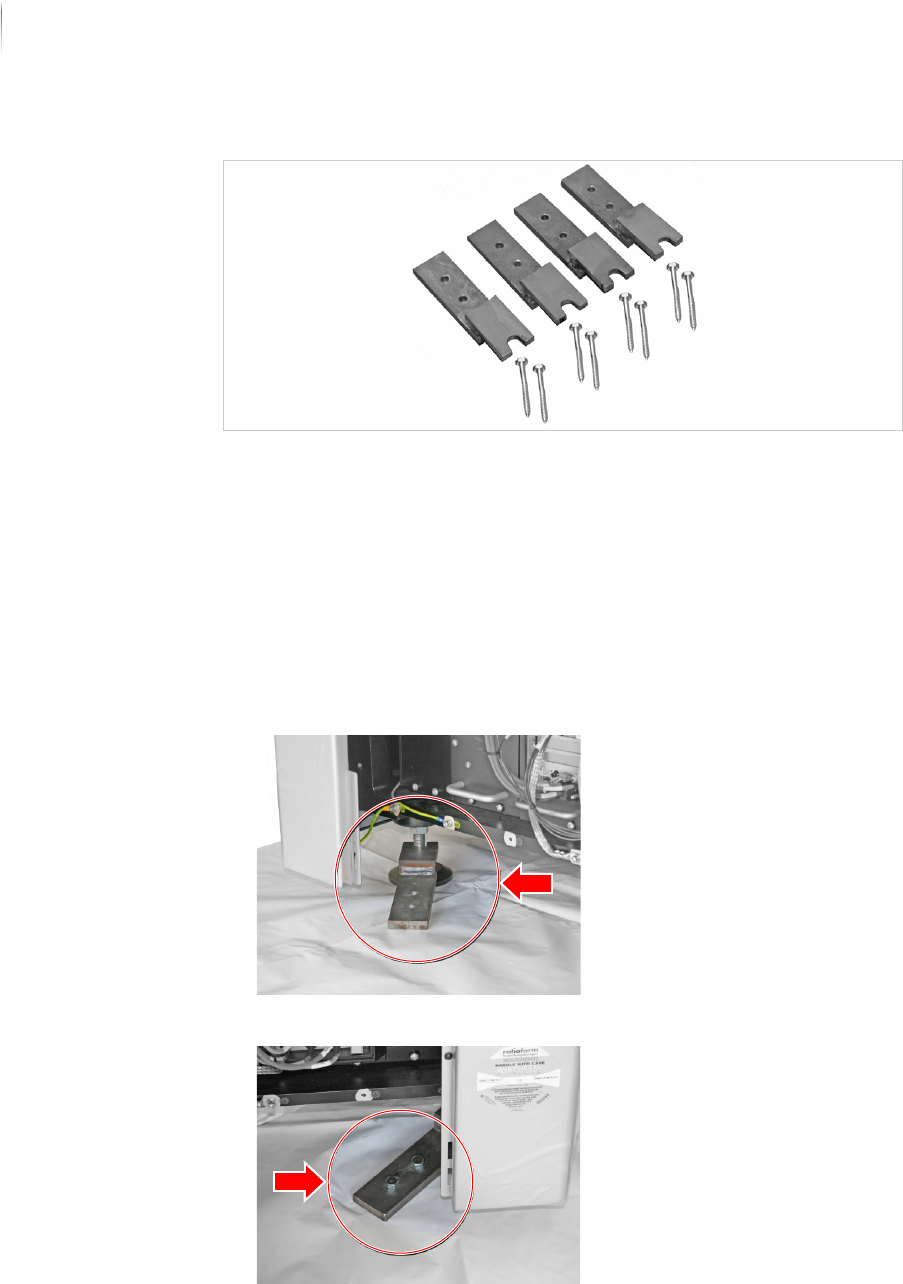

Transport clamps
Fastening the
inspection
system to the
pallet
Required: 4 transport clamps with 8 hex head wood screws (10 x 60)
Cordless screwdriver
Perform the following work steps:
1. Set one of the transport clamps around a system foot.
2. Screw down the transport clamp securely to the pallet.
The first transport clamp is fastened.
3. Repeat steps 1 and 2 for the other machine feet, see .„Inspec-
tion system fastening points“ (Page 243)
The inspection system is fastened to the pallet.
Packing
Packing the inspection system
245
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Wrapping the inspection system
Precondition: Signal lamp is removed.
The system is cleaned.
The inspection system is fastened to the pallet with transport
clamps.
Required: Bubble wrap and plastic stretch wrap
Aluminum laminate sheet and bag
Packing tape
Drying agent
Cordless screwdriver
Vacuum cleaner
Foil sealer

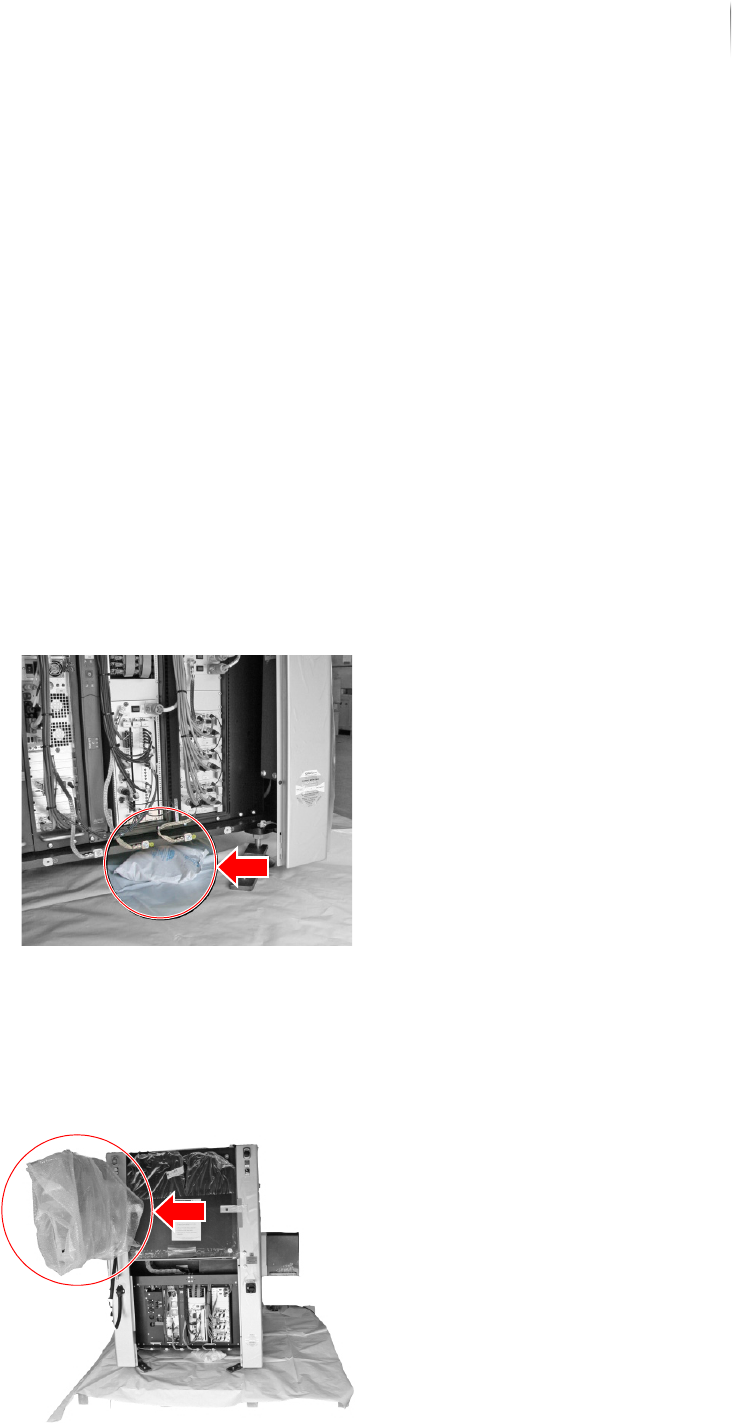

Placing the
drying agent
Perform the following work steps:
Place a sack of drying agent beneath the inspection system.
The drying agent is placed.
Wrapping the
inspection
system with
foil.
Perform the following work steps:
1. Wrap the monitor bracket with bubble wrap.
2. Fasten the bubble wrap with packing tape.
