Maintenance
Lubricating the lift gate
198
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the lift gate
The lift gate separates the AOI and AXI sections and closes off the
AXI section during X-ray inspection. The gate is closed by a motor-
driven spindle and four vertical bearings moving on two guides.
Required: Lubricating grease KP2K, NLGI class 2 according to DIN 51818
Brush
Grease gun
NOTICE
The lift gate closes as soon as the inspection system is turned off.
WARNING
Hazard of injury
Turn off the system and secure it against accidental restart
before starting lubrication.
Make sure the lift gate is closed.
Perform the following work steps:
1. Check the guides and spindles for dirt and clean these compo-
nents as required.
2. Give the spindle guides a thin coat of grease with the brush.
Spindle
2 x guides
4 x pedestal bearings
Lubrication bore
Maintenance
Lubricating the lift gate
199
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
3. Remove the red plastic nyliner from the lubrication bore.
4. Lubricate the spindle lubrication bore with the grease gun.
5. Put the plastic nyliner back in the lubrication bore.
The lift gate is greased.

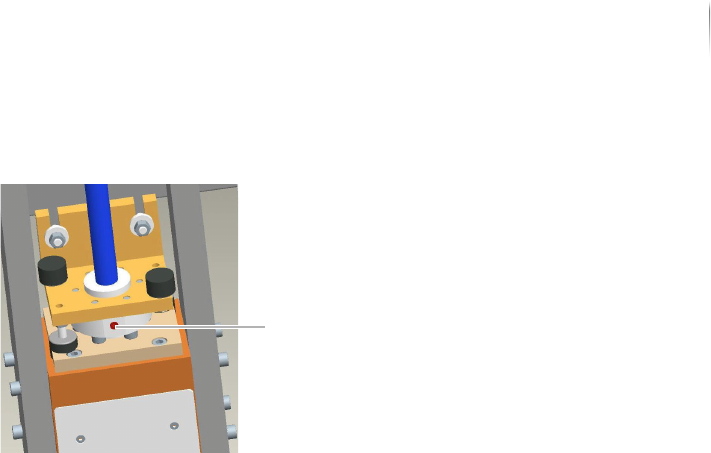

Lubrication bore with
plastic nyliner
Maintenance
Exchanging the AOI transport belts
200
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Exchanging the AOI transport belts
Required: Socket wrench with 5 mm Allen socket
Socket wrench with 4 mm Allen socket
Socket wrench with 3 mm Allen socket
Socket wrench with 2 mm Allen socket
Removing the
transport belts
Perform the following work steps:
1. Move the transport track to the front in the middle of the AOI
section. Start removing the transport belt from the fixed trans-
port side plate.
Movable transport side plate
Fixed transport side plate
