Installation
First use
91
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
First use
First use takes place after the inspection system is installed. This
section describes the steps for first use.
The work steps in detail:
Switching on the inspection system (Page 91)
Checking the safety features (Page 92)
Checking the Interlock linkage (Page 100)
Checking the SMEMA protocol (Page 101)
Checking the SV70 protocol (Page 103)
Checking the PCB transport (Page 104)
Checking the calibration (Page 105)
Checking the network connections (Page 105)
Checking the data transfer to the verification station (Page
106)
Checking the data transfer to the SPC server (Page 106)
Switching on the inspection system
The first step to first use is switching on the inspection system.
Switching on the inspection system is divided into the following
steps:
Switching on the system (Page 91)
Logging on (Page 92)
Switching on
the system
Precondition:
The inspection system is properly installed.
The verification station computer is switched on and has booted
up.
The external in- and outfeed conveyors are switched on.
Perform the following work steps:
1. Turn the main switch to
ON.
2. Press the white ON button.
The white ON button lights up.
All control elements are supplied with current.
? The white ON button does not light up?
The STOP mode is actuated.
See „Checking the Interlock linkage“ (Page 100)
3. Set the key switch to
ON.
Installation
First use
92
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
4. Turn on the UPS devices.
The system computers boot up.
5. Switch on the monitor.
The monitor displays the WindowsREGISTRATION WINDOW.
The inspection system is switched on.
Logging on
NOTICE
The user name si and the password viscom are default settings.
These settings can be customized. Adapting the configuration must
be done by Viscom service personnel.
Perform the following work steps:
1. Press the key combination
Ctrl+Alt+Delete.
The monitor displays the Windows Registration Window.
2. Enter the user name
si and the keyword viscom.
Log on is successful.
Checking the safety features
Make sure the safety features are working properly at first use and
each time the system is switched on.
The work steps in detail:
Checking the STOP mode (Page 93)
Checking EMERGENCY STOP (Page 93)
Checking the lift gate functioning (Page 94)
Checking the shutter functioning (Page 97)
Installation
First use
93
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Checking the
STOP mode
Perform the following work steps:
1. Open the front lift door.

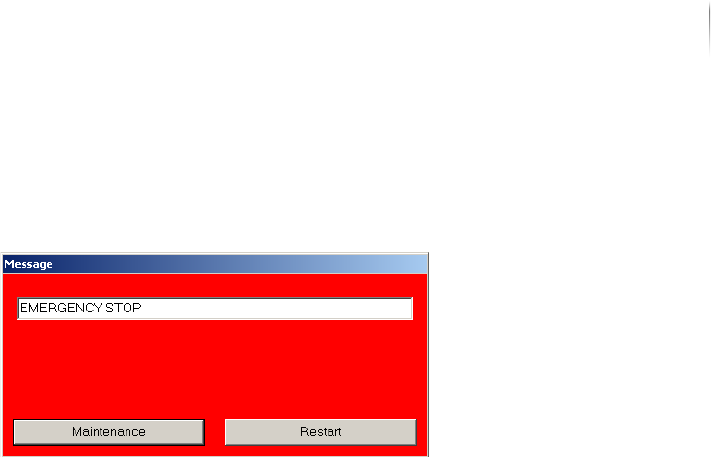

The following message is displayed:
The STOP mode is actuated.
? The STOP mode does not actuate?
The safety circuit is defective.
Have the safety circuits checked by trained specialists or by
Viscom AG service technicians.
2. Close the front lift door.
3. Choose the R
ESTART button on the STOP notice.
The Viscom software is ended.
4. Start the Viscom software, see „Starting the Viscom software“
(Page 155).
The AOI software starts.
The AXI software starts.
5. Repeat steps 1 to 4 for the front door and the rear swing doors.
The STOP mode is checked.
Checking
EMERGENCY
STOP
Perform the following work steps:
1. Press the front EMERGENCY STOP button
The power to the inspection system is switched off.
The monitor is switched off.
The UPS ensures the regulated shutdown of the system
computer.
2. Turn the EMERGENCY STOP button clockwise to unlock it.
3. Press the ON button.
The ON button lights up.
? The white ON button does not light up?
The Interlock connection is faulty.
See „Checking the Interlock linkage“ (Page 100)
