Maintenance
Exchanging the AOI transport belts
204
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Installing the
transport belts

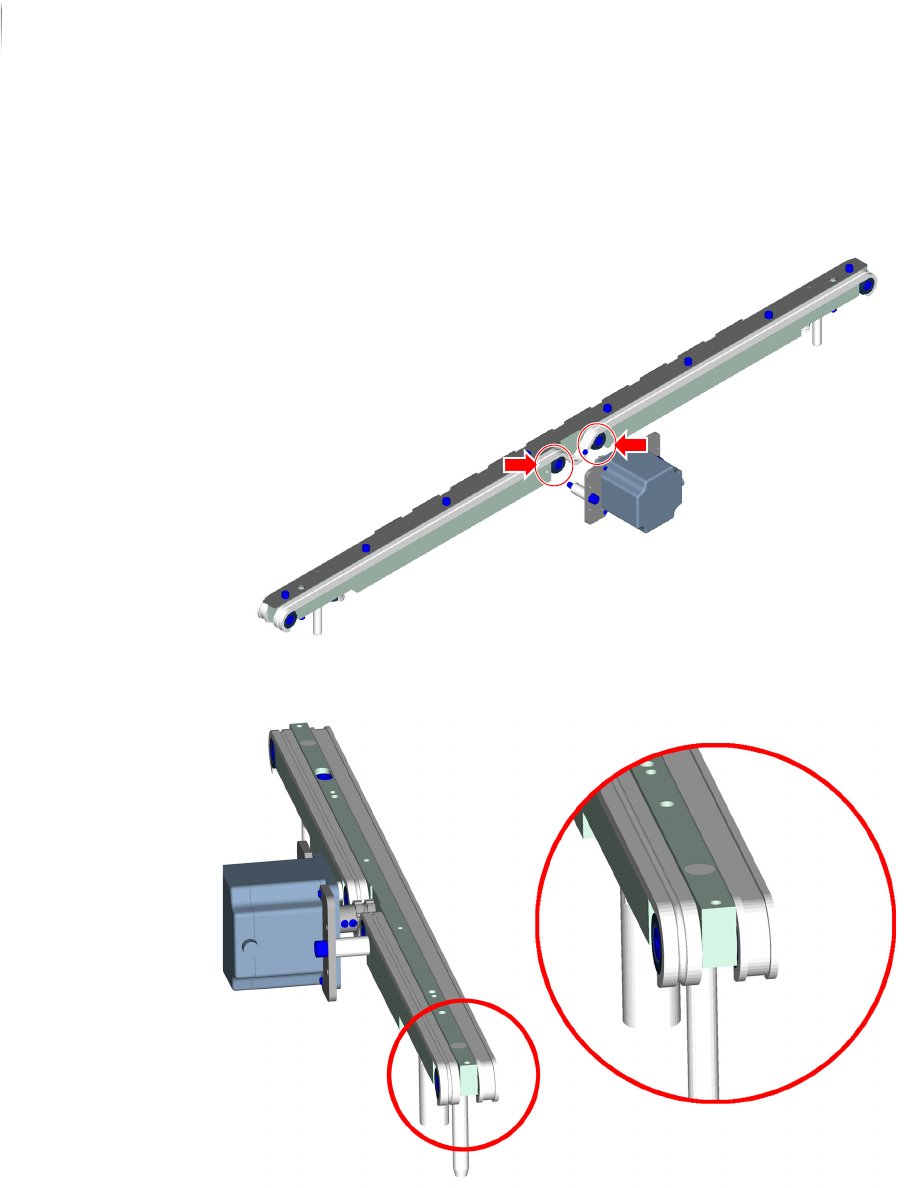

Perform the following work steps:
1. Install the transport belt; start from the guide rollers on the left
and right sides of the motor for the fixed transport side plate.
Pay careful attention to the correct installation position of the
transport belt.
Maintenance
Exchanging the AOI transport belts
205
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

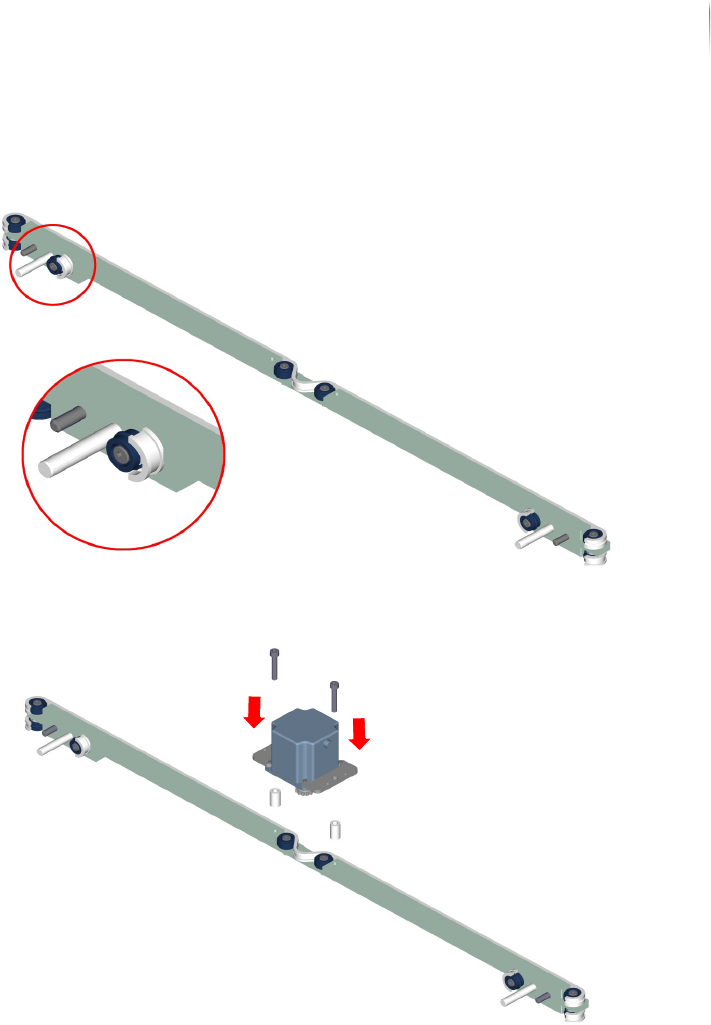

2. Use the socket wrench (2 mm Allen socket) to unscrew the
tensioning roller.
3. Use the socket wrench (4 mm Allen socket) to install the drive
motor (2 screws).
Maintenance
Exchanging the AOI transport belts
206
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
4. Span the belt around the outer guide rollers and the tensioning
rollers.
5. Tighten the belt with the belt tensioning roller; use the socket
wrench (2 mm Allen socket) to tighten the screw.
