Maintena nce Exchanging the AX I transport bel ts 216 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a 4. Span the belt around the outer guide rollers and the tensioning rollers…
Maintenance
Exchanging the AXI transport belts
215
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

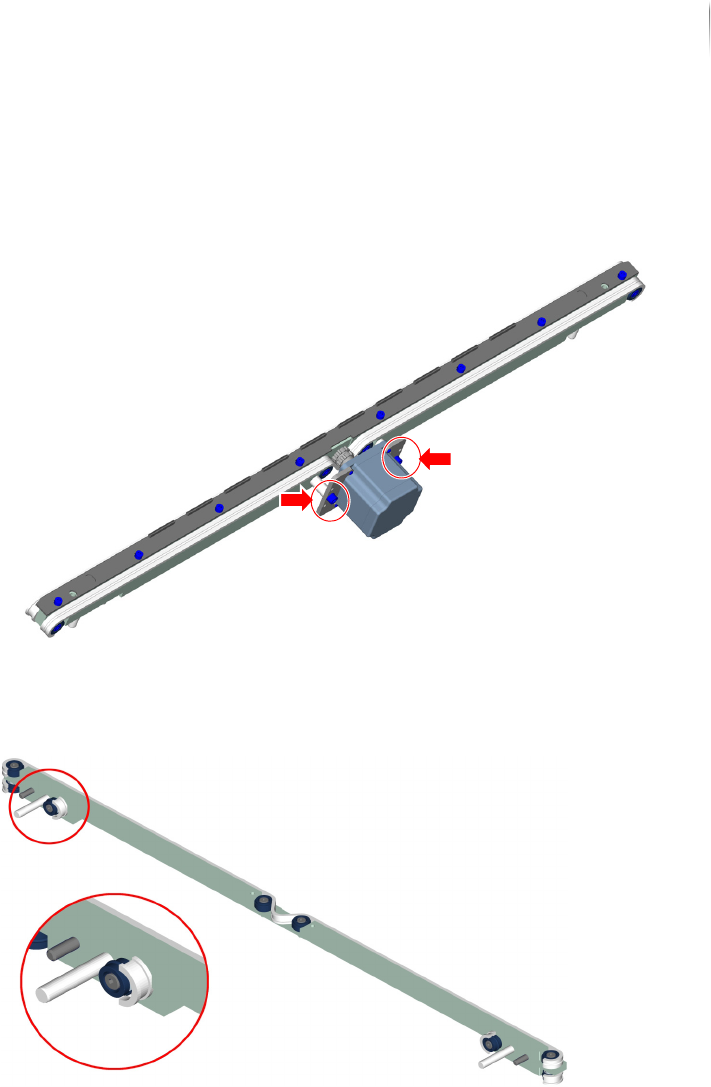

2. Use the socket wrench (4 mm Allen socket) to install the drive
motor (2 screws).
3. Use the socket wrench (2 mm Allen socket) to unscrew the
tensioning roller.
Maintenance
Exchanging the AXI transport belts
216
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
4. Span the belt around the outer guide rollers and the tensioning
rollers.
5. Tighten the belt with the belt tensioning roller; use the socket
wrench (2 mm Allen socket) to tighten the screw.
Maintenance
Exchanging the AXI transport belts
217
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
6. Install the end stop guide rail by firmly tightening the 8 screws
with the socket wrench (3 mm Allen socket). Be absolutely
certain that the PCB overlap width value measured during the
disassembly is the same for the assembly.
7. Install the clamping unit evenly, without tilting or bending.
Clamping unit
