Delivery
Unpacking the inspection system
64
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
ATTENTION
Damage to the inspection system
Temperature fluctuations cause condensation to form.
If there are strong temperature fluctuations, wait 24 h before
opening the vacuum packaging.
ATTENTION
Damage to the inspection system
The inspection system can be damaged during unwrapping, if the
utility knife is not used with caution.
Carefully use the knife when cutting through the covering films.
Perform the following work steps:
1. Check the transport indicators, see „Checking the transport
indicators“ (Page 61).

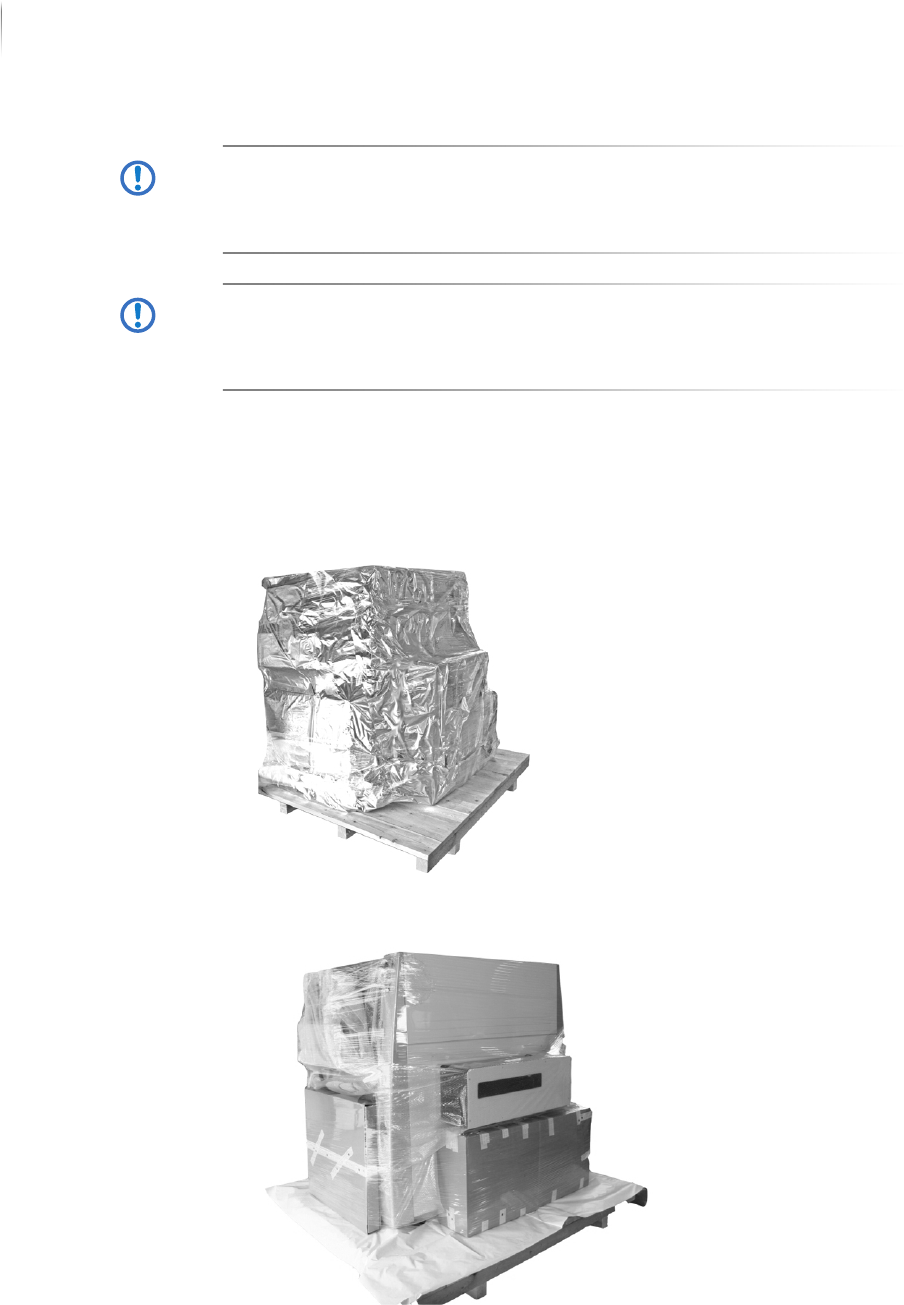

2. Unwrap the first layer of stretch wrap.
3. Remove the aluminum laminate bag.
4. Unwrap the second layer of stretch wrap.
5. Set the accessories cartons to the side.
Delivery
Unpacking the inspection system
65
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
6. Remove the bubble wrap.
The covering layers are removed.
Removing the transport clamps
Four transport clamps secure the inspection system to the pallet.
Remove the clamps before lifting the inspection system from the
pallet.
NOTE
Store the transport clamps and screws for later use.
CAUTION
Hazard of injury from impact with the monitor
Fold the monitor and keyboard bracket to the inspection
system before removing the transport clamps.
Perform the following work steps:

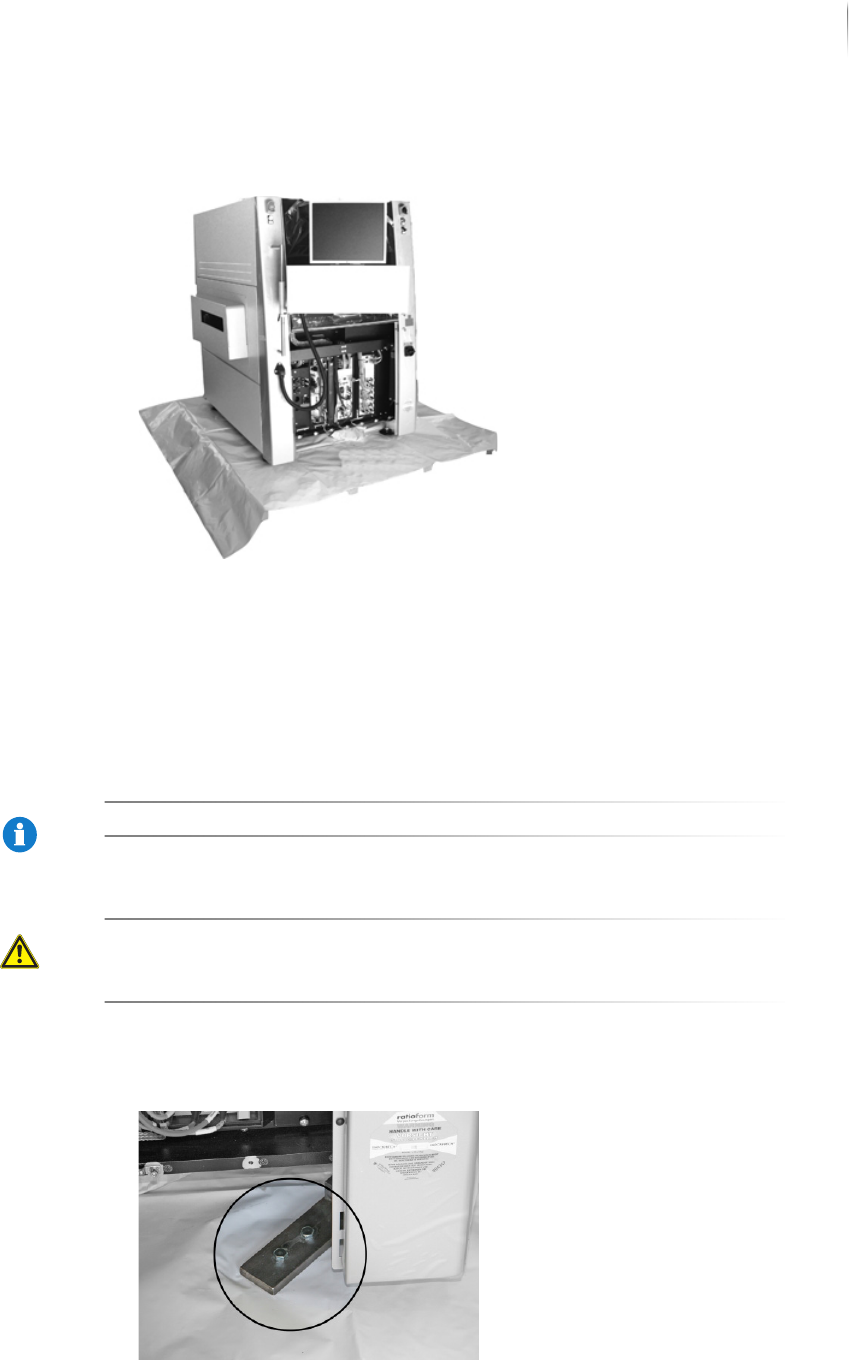

1. Remove the transport clamp screws.
Delivery
Unpacking the inspection system
66
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a

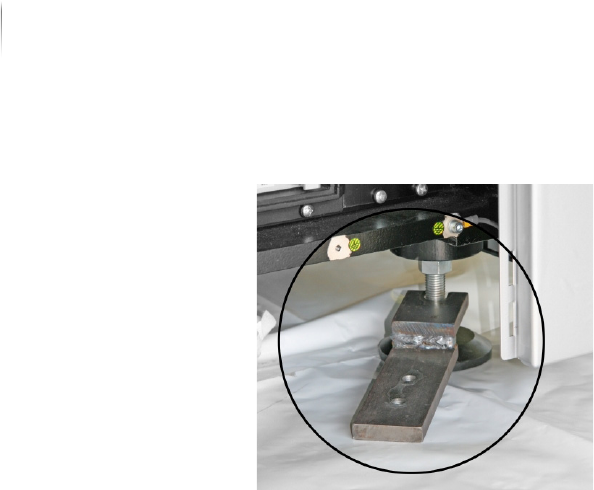

2. Pull out the transport clamp.
3. Repeat steps 1 to 2 for the other 3 transport clamps.
The transport clamps are removed. The inspection system can
now be taken to its final usage site.
